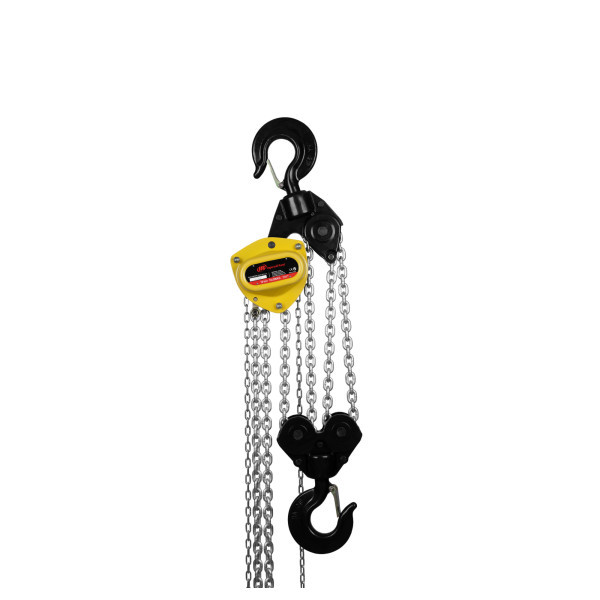

Ingersoll Rand KM500-15-13 KM Kinetic Series Manual Hoist | 5 Ton Capacity | 15 ft Lift | 13 ft Drop

Ingersoll Rand KM500-15-13 Manual Hoist is a Kinetic Series manual chain hoist designed for controlled hand-operated lifting and load positioning. This 5-ton capacity configuration is rated for 11,000 lbs. and provides 15 ft. of lift with a 13 ft. hand chain drop. Its two-chain-fall arrangement is specified for the 5-ton capacity, making this configuration suitable for compatible industrial material-handling, maintenance, construction, and equipment installation applications.

The KM500 requires 74.9 lbs. of pull to lift the rated load and uses premium Grade 100 electro-galvanized load chain specified at 2.96 lb./ft. Full bearing construction on the load sprockets and pinion shaft is designed to reduce pull effort and support longer service life, while the reinforced double pawl brake provides a dependable braking system for controlled load handling. The 15 ft. lift and 13 ft. hand chain drop should be matched to the required vertical travel and available operator access.

Type: Manual Chain Hoist | Series: Kinetic | Model: KM500-15-13 | Capacity: 5 Ton (11,000 lbs.) | Lift: 15 ft. | Hand Chain Drop: 13 ft. | Chain Falls: 2 | Pull to Lift Rated Load: 74.9 lbs. | Load Chain Weight: 2.96 lb./ft.

Features:

• Two chain falls provide the specified lifting arrangement for the 5-ton capacity.
• All-steel construction provides the specified Kinetic Series manual hoist design for compatible lifting applications.
• Reinforced double pawl brake with large-diameter pawl springs provides a dependable braking system for controlled load handling.
• Full bearing construction on the load sprockets and pinion shaft is designed to reduce pull effort and support longer service life.
• Premium Grade 100 electro-galvanized chain provides the specified load-chain construction and corrosion resistance for increased durability.
• Heavy-duty cast hook latches are designed to reduce the need for latch replacements.
• The 15 ft. lift provides extended vertical travel for applications requiring additional lifting distance.
• The Kinetic Series is CE certified and is stated by the manufacturer to meet or exceed regional requirements including ASME B30.16 and HST-2M.

Applications:

• Manual lifting and positioning of loads within the 11,000 lb. rated capacity.
• Industrial maintenance and MRO operations requiring a 5-ton manual chain hoist.
• Equipment installation and material-handling tasks requiring up to 15 ft. of lift.
• Construction applications compatible with a 5-ton, two-chain-fall manual hoist.
• Replacement installations where the required capacity, lift, hand-chain drop, and mounting arrangement match the KM500-15-13 configuration.

FAQs:

• Q: What is the capacity of the KM500-15-13?
  A: The hoist is rated for 5 tons, or 11,000 lbs.
• Q: How much lift does the KM500-15-13 provide?
  A: This configuration provides 15 ft. of lift.
• Q: What does the “13” in KM500-15-13 indicate?
  A: The configuration specifies a 13 ft. hand chain drop.
• Q: How many chain falls does the KM500-15-13 use?
  A: The KM500 uses two chain falls for its 5-ton rated capacity.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 74.9 lbs. of pull to lift the rated load for the KM500.
• Q: What type of load chain does the KM500 use?
  A: The Kinetic Series uses premium Grade 100 electro-galvanized load chain. The KM500 specifies a load-chain weight of 2.96 lb. per foot.
• Q: Is an overload clutch included with the KM500-15-13?
  A: The supplied KM500-15-13 configuration does not identify an overload clutch as included. The manufacturer states that an overload clutch is available on all Kinetic Series capacities.
• Q: What standards are associated with the Kinetic Series?
  A: The manufacturer states that Kinetic Series manual chain hoists are CE certified and meet or exceed regional requirements including ASME B30.16 and HST-2M.
