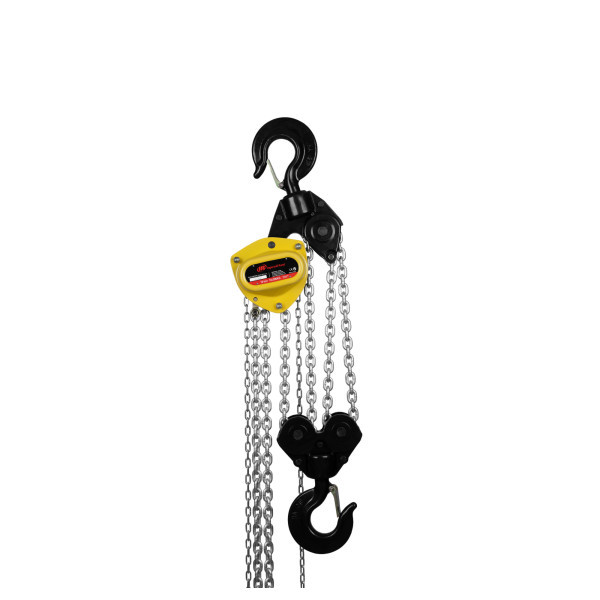

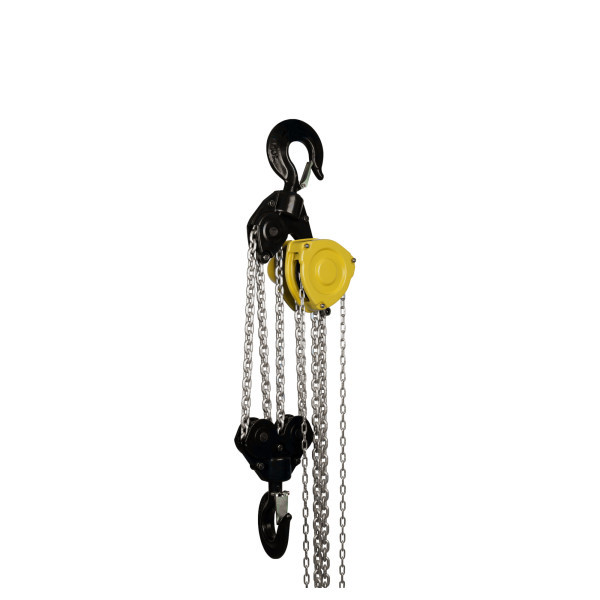

Ingersoll Rand KM300V-20-18 Manual Hoist is a Kinetic Series manual chain hoist for controlled hand-operated lifting and load positioning. This 3-ton capacity configuration is rated for 6,600 lbs. and provides 20 ft. of lift with an 18 ft. hand chain drop. The integrated overload clutch adds the specified overload-protection feature, while the single chain fall provides a straightforward lifting arrangement for compatible industrial maintenance, construction, equipment installation, and material-handling applications.
The KM300 series requires 82.7 lbs. of pull to lift the rated load and uses premium Grade 100 electro-galvanized load chain specified at 1.55 lb./ft. Full bearing construction on the load sprockets and pinion shaft is intended to reduce pull effort during manual operation, while the reinforced double pawl brake provides controlled load handling. The 20 ft. lift provides extended vertical travel, and the 18 ft. hand chain drop should be matched to the operator's access requirements.
Type: Manual Chain Hoist | Series: Kinetic | Model: KM300V-20-18 | Capacity: 3 Ton (6,600 lbs.) | Lift: 20 ft. | Hand Chain Drop: 18 ft. | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 82.7 lbs. | Load Chain Weight: 1.55 lb./ft.
Features:
- Overload clutch provides the specified overload protection feature for this Kinetic Series configuration.
- All-steel construction provides the specified manual hoist design for compatible lifting applications.
- Reinforced double pawl brake with large-diameter pawl springs provides controlled load handling during manual lifting and positioning.
- Single chain fall provides a straightforward lifting arrangement for the 3-ton capacity.
- Full bearing construction on the load sprockets and pinion shaft is intended to reduce pull effort during manual operation.
- Premium Grade 100 electro-galvanized chain provides the specified load-chain construction for the Kinetic Series.
- Heavy-duty cast hook latches are designed to reduce the need for latch replacement.
- The 20 ft. lift provides additional vertical travel for applications requiring more reach than shorter configurations.
- The Kinetic Series is CE certified and is stated by the manufacturer to meet or exceed ASME B30.16 and HST-2M requirements.
Applications:
- Manual lifting and positioning of loads within the 6,600 lb. rated capacity.
- Industrial maintenance and MRO operations requiring a 3-ton manual chain hoist with overload protection.
- Equipment installation and material-handling tasks requiring up to 20 ft. of lift.
- Construction applications compatible with a 3-ton, single-chain-fall manual hoist.
- Replacement installations where the required capacity, lift, hand-chain drop, and overload-clutch configuration match the KM300V-20-18.
FAQs:
- Q: What is the capacity of the KM300V-20-18?
A: The hoist is rated for 3 tons, or 6,600 lbs. - Q: How much lift does this configuration provide?
A: The KM300V-20-18 provides 20 ft. of lift. - Q: What does the “18” in KM300V-20-18 indicate?
A: It specifies an 18 ft. hand chain drop. - Q: What does the “V” indicate?
A: The V configuration identifies the hoist as including an overload clutch. - Q: How many chain falls does the KM300V-20-18 use?
A: This configuration uses one chain fall. - Q: How much pull is required to lift the rated load?
A: The manufacturer specifies 82.7 lbs. of pull to lift the rated load for the KM300 series. - Q: What type of load chain does the KM300 series use?
A: The Kinetic Series uses premium Grade 100 electro-galvanized load chain. The KM300 series specifies a load-chain weight of 1.55 lb. per foot. - Q: Does the KM300V-20-18 include an overload clutch?
A: Yes. The supplied product configuration identifies the KM300V-20-18 as including an overload clutch. - Q: What standards are associated with the Kinetic Series?
A: The manufacturer states that Kinetic Series manual chain hoists are CE certified and meet or exceed ASME B30.16 and HST-2M requirements.
| SKU | CAPACITY | NUMBER OF FALLS | PULL TO LIFT RATED LOAD | CHAIN WEIGHT | SHIPPING WEIGHT WITH 10' OF LIFT | ||||
|---|---|---|---|---|---|---|---|---|---|
| lbs | metric tons | lb | kg | lb/ft | kg/ft | lb | kg | ||
| KM025 | 550 | 0.25 | 1 | 41.8 | 19 | 0.25 | 0.11 | 9.5 | 4.3 |
| KM050 | 1,100 | 0.5 | 1 | 51.3 | 23.2 | 1.01 | 0.46 | 24.8 | 11.25 |
| KM100 | 2,200 | 1 | 1 | 63.8 | 29 | 1.21 | 0.55 | 28.4 | 12.9 |
| KM150 | 3,300 | 1.5 | 1 | 77.1 | 35 | 1.41 | 0.64 | 36 | 16.35 |
| KM200 | 4,400 | 2 | 1 | 79.4 | 36 | 1.55 | 0.7 | 46.3 | 21 |
| KM300 | 6,600 | 3 | 1 | 82.7 | 37.5 | 1.55 | 0.7 | 63.7 | 28.9 |
| KM500 | 11,000 | 5 | 2 | 74.9 | 34 | 2.96 | 1.34 | 93.7 | 42.5 |
| KM750 | 16,500 | 7.5 | 3 | 77.1 | 35 | 4.17 | 1.89 | 138.9 | 63 |
| KM1000 | 22,000 | 10 | 4 | 79.4 | 36 | 5.31 | 2.41 | 231.2 | 104.9 |
| KM2000 | 44,000 | 20 | 8 | 79.4x2 | 36x2 | 10.62 | 4.82 | 481.9 | 218.6 |
