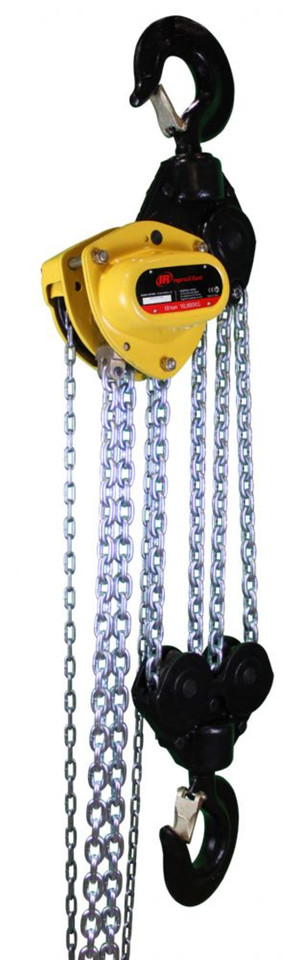

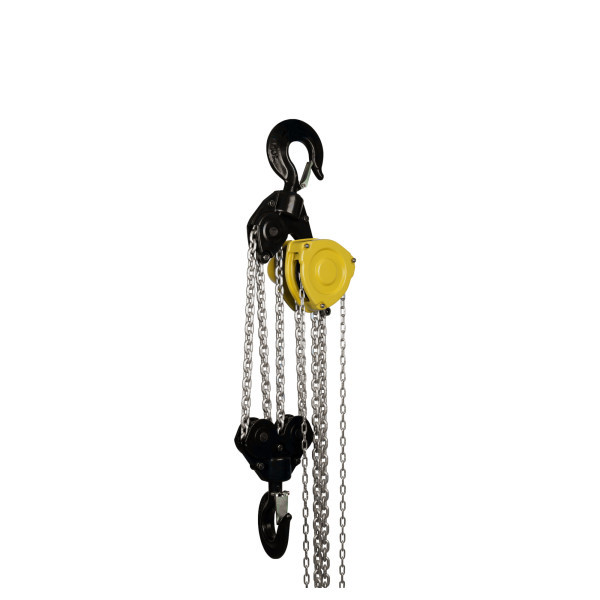

Ingersoll Rand KM200V-20-18 Manual Hoist is a Kinetic Series manual chain hoist designed for controlled hand-operated lifting and load positioning. This 2-ton capacity configuration is rated for 4,400 lbs. and provides 20 ft. of lift with an 18 ft. hand chain drop. The overload clutch adds the specified overload-protection feature, while the single chain fall provides a straightforward lifting arrangement for compatible material-handling, maintenance, construction, and equipment installation applications.
The KM200 requires 79.4 lbs. of pull to lift the rated load and uses premium Grade 100 electro-galvanized load chain with a specified 1.55 lb./ft. chain weight. Full bearing construction on the load sprockets and pinion shaft is designed for reduced pull effort and longer life, while the reinforced double pawl brake provides the specified braking system. The 20 ft. lift and 18 ft. hand chain drop should be matched to the required vertical travel and operator access.
Type: Manual Chain Hoist | Series: Kinetic | Model: KM200V-20-18 | Capacity: 2 Ton (4,400 lbs.) | Lift: 20 ft. | Hand Chain Drop: 18 ft. | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 79.4 lbs. | Load Chain Weight: 1.55 lb./ft.
Features:
- Overload clutch provides the specified overload protection feature for this Kinetic Series configuration.
- All-steel construction provides the specified combination of durability and light weight for the Kinetic Series.
- Reinforced double pawl brake with large-diameter pawl springs provides a dependable braking system for controlled load handling.
- Single chain fall provides a straightforward lifting arrangement for the 2-ton capacity.
- Full bearing construction on the load sprockets and pinion shaft is designed to reduce pull effort and support longer service life.
- Premium Grade 100 electro-galvanized chain provides corrosion resistance for the load chain.
- Heavy-duty cast hook latches are designed to reduce latch replacement requirements.
- The 20 ft. lift provides extended vertical travel for applications requiring additional lifting distance.
- The Kinetic Series is CE certified and meets or exceeds regional requirements including ASME B30.16 and HST-2M.
Applications:
- Manual lifting and positioning of loads within the 4,400 lb. rated capacity.
- Industrial maintenance and MRO operations requiring a 2-ton manual chain hoist with overload protection.
- Equipment installation and material-handling tasks requiring up to 20 ft. of lift.
- Construction applications compatible with a 2-ton single-chain-fall manual hoist.
- Replacement installations where the required capacity, lift, hand-chain drop, and overload-clutch configuration match the KM200V-20-18.
FAQs:
- Q: What is the capacity of the KM200V-20-18?
A: The hoist is rated for 2 tons, or 4,400 lbs. - Q: How much lift does the KM200V-20-18 provide?
A: This configuration provides 20 ft. of lift. - Q: What does the “18” in KM200V-20-18 indicate?
A: The configuration specifies an 18 ft. hand chain drop. - Q: What does the “V” indicate?
A: In the Kinetic Series ordering system, “V” identifies the overload clutch option. The supplied KM200V-20-18 configuration includes that option. - Q: How many chain falls does the KM200V-20-18 use?
A: This configuration uses one chain fall. - Q: How much pull is required to lift the rated load?
A: The manufacturer specifies 79.4 lbs. of pull to lift the rated load for the KM200. - Q: What type of load chain does the Kinetic Series use?
A: The Kinetic Series uses premium Grade 100 electro-galvanized chain. The KM200 specifies a chain weight of 1.55 lb. per foot. - Q: What standards are associated with the Kinetic Series?
A: The manufacturer states that the Kinetic Series is CE certified and that the hoists meet or exceed regional requirements including ASME B30.16 and HST-2M.
| SKU | CAPACITY | NUMBER OF FALLS | PULL TO LIFT RATED LOAD | CHAIN WEIGHT | SHIPPING WEIGHT WITH 10' OF LIFT | ||||
|---|---|---|---|---|---|---|---|---|---|
| lbs | metric tons | lb | kg | lb/ft | kg/ft | lb | kg | ||
| KM025 | 550 | 0.25 | 1 | 41.8 | 19 | 0.25 | 0.11 | 9.5 | 4.3 |
| KM050 | 1,100 | 0.5 | 1 | 51.3 | 23.2 | 1.01 | 0.46 | 24.8 | 11.25 |
| KM100 | 2,200 | 1 | 1 | 63.8 | 29 | 1.21 | 0.55 | 28.4 | 12.9 |
| KM150 | 3,300 | 1.5 | 1 | 77.1 | 35 | 1.41 | 0.64 | 36 | 16.35 |
| KM200 | 4,400 | 2 | 1 | 79.4 | 36 | 1.55 | 0.7 | 46.3 | 21 |
| KM300 | 6,600 | 3 | 1 | 82.7 | 37.5 | 1.55 | 0.7 | 63.7 | 28.9 |
| KM500 | 11,000 | 5 | 2 | 74.9 | 34 | 2.96 | 1.34 | 93.7 | 42.5 |
| KM750 | 16,500 | 7.5 | 3 | 77.1 | 35 | 4.17 | 1.89 | 138.9 | 63 |
| KM1000 | 22,000 | 10 | 4 | 79.4 | 36 | 5.31 | 2.41 | 231.2 | 104.9 |
| KM2000 | 44,000 | 20 | 8 | 79.4x2 | 36x2 | 10.62 | 4.82 | 481.9 | 218.6 |
