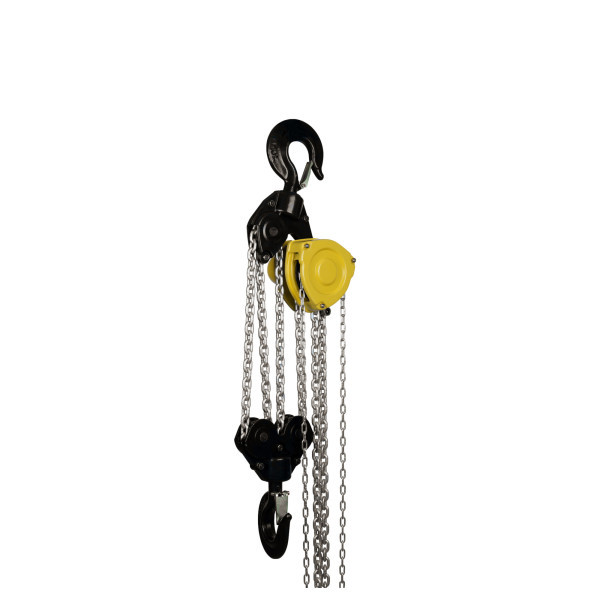

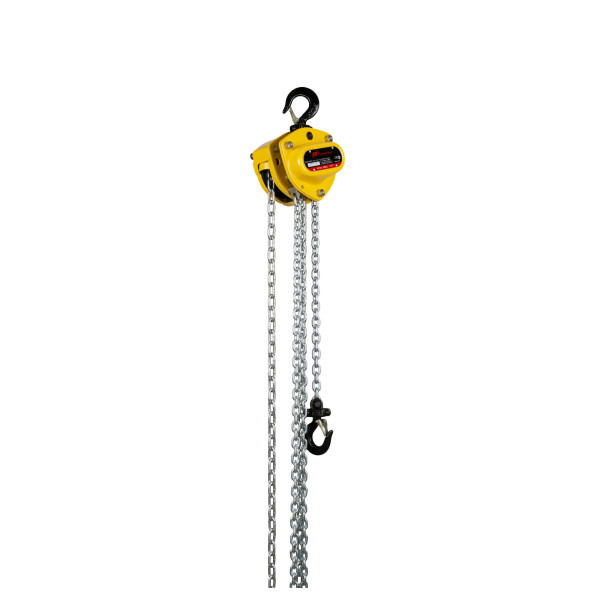

Ingersoll Rand KM200-10-8 KM Kinetic Series Manual Hoist | 2 Ton Capacity | 10 ft Lift | 8 ft Drop

Ingersoll Rand KM200-10-8 Manual Hoist is a Kinetic Series manual chain hoist built for controlled hand-operated lifting and load positioning. This 2-ton capacity configuration is rated for 4,400 lbs. and provides 10 ft. of lift with an 8 ft. hand chain drop. The single-chain-fall configuration provides a straightforward setup for compatible material-handling, maintenance, construction, and equipment installation work.

The Kinetic Series uses all-steel construction, a reinforced double pawl brake, full bearing construction on the load sprockets and pinion shaft, and premium Grade 100 electro-galvanized load chain. These design features support controlled manual load handling while the 10 ft. lift establishes the available vertical travel. The 8 ft. hand chain drop provides operator reach appropriate to installations where the control chain can be accessed from the required working position.

Type: Manual Chain Hoist | Series: Kinetic | Model: KM200-10-8 | Capacity: 2 Ton (4,400 lbs.) | Lift: 10 ft. | Hand Chain Drop: 8 ft. | Chain Falls: 1

Features:

• All-steel construction provides the specified Kinetic Series manual hoist configuration for compatible lifting applications.
• Reinforced double pawl brake with large-diameter pawl springs provides controlled load handling during manual lifting and positioning.
• Single chain fall provides a straightforward lifting arrangement for the 2-ton capacity.
• Full bearing construction on the load sprockets and pinion shaft supports the manual lifting mechanism.
• Premium Grade 100 electro-galvanized chain provides the specified load-chain construction for the Kinetic Series.
• Heavy-duty cast hook latches are designed to reduce the need for latch replacement.
• The 10 ft. lift provides a defined vertical travel configuration for compatible material-handling tasks.
• The Kinetic Series is stated by the manufacturer to meet or exceed ASME B30.16 and HST-2M requirements and is CE certified.

Applications:

• Manual lifting and positioning of loads within the 4,400 lb. rated capacity.
• Industrial maintenance and MRO work requiring a 2-ton manual chain hoist.
• Equipment installation and positioning tasks requiring up to 10 ft. of lift.
• Construction and material-handling operations where a single-chain-fall manual hoist is appropriate.
• Replacement installations where the required capacity, lift, hand-chain drop, and mounting arrangement match the KM200-10-8 configuration.

FAQs:

• Q: What is the capacity of the KM200-10-8?
  A: The hoist is rated for 2 tons, or 4,400 lbs.
• Q: How much lift does the KM200-10-8 provide?
  A: This configuration provides 10 ft. of lift.
• Q: What does the “8” in KM200-10-8 indicate?
  A: The configuration specifies an 8 ft. hand chain drop.
• Q: How many chain falls does the KM200 use?
  A: The KM200-10-8 uses one chain fall.
• Q: What type of load chain does the Kinetic Series use?
  A: The Kinetic Series uses premium Grade 100 electro-galvanized load chain.
• Q: What standards are associated with the Kinetic Series?
  A: The manufacturer states that Kinetic Series manual chain hoists meet or exceed ASME B30.16 and HST-2M requirements and are CE certified.
• Q: Is an overload clutch included with the KM200-10-8?
  A: The supplied SKU does not identify an overload clutch as included. The overload-clutch version should be selected when that feature is specifically required.
