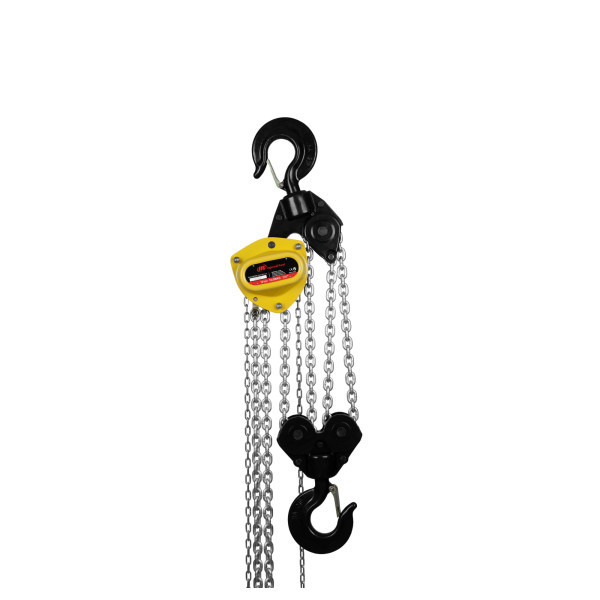

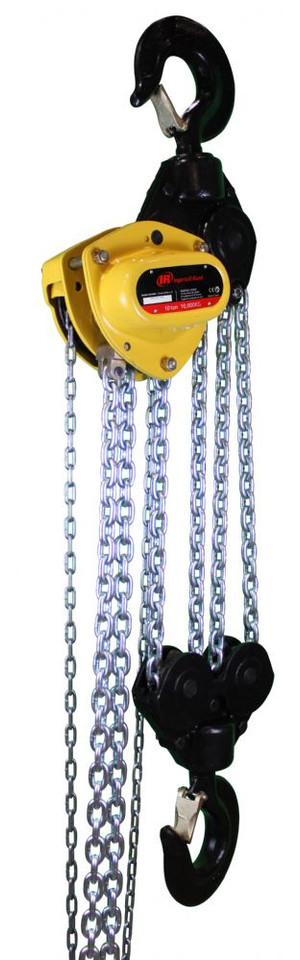

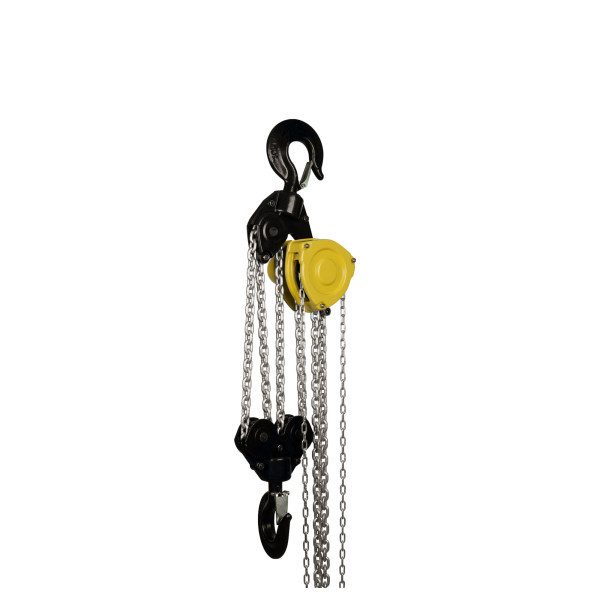

Ingersoll Rand KM150V Manual Hoist is a Kinetic Series manual chain hoist designed for controlled hand-operated lifting and load positioning. This 1.5-ton capacity configuration is rated for 3,300 lbs. and includes an overload clutch for the specified overload protection configuration. With a single chain fall, it provides a straightforward manual lifting solution for compatible material-handling, maintenance, construction, and equipment installation applications.
The KM150V requires 77.1 lbs. of pull to lift the rated load and uses premium Grade 100 electro-galvanized load chain specified at 1.41 lb./ft. Full bearing construction on the load sprockets and pinion shaft is designed to reduce pull effort during manual operation, while the reinforced double pawl brake provides controlled load handling. This base KM150V model is supplied as a hoist configuration without a specific lift or hand-chain drop stated in the SKU, allowing the required lifting configuration to be selected separately.
Type: Manual Chain Hoist | Series: Kinetic | Model: KM150V | Capacity: 1.5 Ton (3,300 lbs.) | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 77.1 lbs. | Load Chain Weight: 1.41 lb./ft. | Shipping Weight with 10 ft. Lift: 36 lbs.
Features:
- Overload clutch provides the specified overload protection feature for this Kinetic Series configuration.
- All-steel construction provides a durable manual hoist design while maintaining a relatively light construction for its capacity.
- Reinforced double pawl brake with large-diameter pawl springs provides controlled load handling.
- Single chain fall provides a straightforward lifting arrangement for the 1.5-ton capacity.
- Full bearing construction on the load sprockets and pinion shaft is designed to reduce pull effort during manual operation.
- Premium Grade 100 electro-galvanized chain provides corrosion-resistant load-chain construction.
- Heavy-duty cast hook latches are designed to reduce the need for latch replacement.
- The Kinetic Series is CE certified and is stated by the manufacturer to meet or exceed ASME B30.16 and HST-2M requirements.
Applications:
- Manual lifting and positioning of loads within the 3,300 lb. rated capacity.
- Maintenance and workshop operations requiring a 1.5-ton manual chain hoist with overload protection.
- Construction and material-handling applications compatible with the KM Kinetic Series configuration.
- Equipment installation and positioning tasks where a single-chain-fall manual hoist is appropriate.
- Replacement installations where the required capacity, chain-fall arrangement, and overload-clutch configuration match the KM150V.
FAQs:
- Q: What is the capacity of the KM150V?
A: The hoist is rated for 1.5 tons, or 3,300 lbs. - Q: What does the “V” in KM150V indicate?
A: The supplied KM150V configuration includes an overload clutch for overload protection. - Q: How many chain falls does the KM150V use?
A: The KM150V uses one chain fall. - Q: How much pull is required to lift the rated load?
A: The manufacturer specifies 77.1 lbs. of pull to lift the rated load for the KM150. - Q: What type of load chain does the Kinetic Series use?
A: The Kinetic Series uses premium Grade 100 electro-galvanized load chain. The KM150 specifies a load-chain weight of 1.41 lb. per foot. - Q: Does the KM150V specify a particular lift height?
A: The base KM150V SKU does not specify a lift height. The Kinetic Series is available in different lift configurations, so the required lift should be selected according to the application. - Q: What standards are associated with the Kinetic Series?
A: The manufacturer states that Kinetic Series manual chain hoists are CE certified and meet or exceed ASME B30.16 and HST-2M requirements. - Q: What is the shipping weight listed for the KM150V?
A: The manufacturer lists a shipping weight of 36 lbs. with 10 ft. of lift.
| SKU | CAPACITY | NUMBER OF FALLS | PULL TO LIFT RATED LOAD | CHAIN WEIGHT | SHIPPING WEIGHT WITH 10' OF LIFT | ||||
|---|---|---|---|---|---|---|---|---|---|
| lbs | metric tons | lb | kg | lb/ft | kg/ft | lb | kg | ||
| KM025 | 550 | 0.25 | 1 | 41.8 | 19 | 0.25 | 0.11 | 9.5 | 4.3 |
| KM050 | 1,100 | 0.5 | 1 | 51.3 | 23.2 | 1.01 | 0.46 | 24.8 | 11.25 |
| KM100 | 2,200 | 1 | 1 | 63.8 | 29 | 1.21 | 0.55 | 28.4 | 12.9 |
| KM150 | 3,300 | 1.5 | 1 | 77.1 | 35 | 1.41 | 0.64 | 36 | 16.35 |
| KM200 | 4,400 | 2 | 1 | 79.4 | 36 | 1.55 | 0.7 | 46.3 | 21 |
| KM300 | 6,600 | 3 | 1 | 82.7 | 37.5 | 1.55 | 0.7 | 63.7 | 28.9 |
| KM500 | 11,000 | 5 | 2 | 74.9 | 34 | 2.96 | 1.34 | 93.7 | 42.5 |
| KM750 | 16,500 | 7.5 | 3 | 77.1 | 35 | 4.17 | 1.89 | 138.9 | 63 |
| KM1000 | 22,000 | 10 | 4 | 79.4 | 36 | 5.31 | 2.41 | 231.2 | 104.9 |
| KM2000 | 44,000 | 20 | 8 | 79.4x2 | 36x2 | 10.62 | 4.82 | 481.9 | 218.6 |
