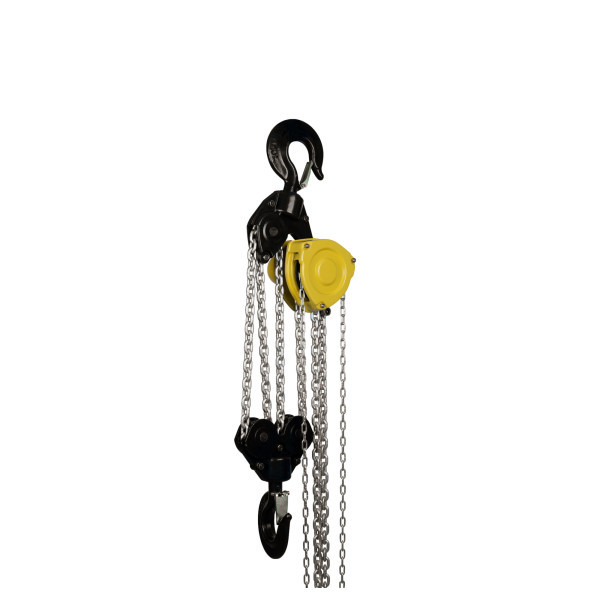

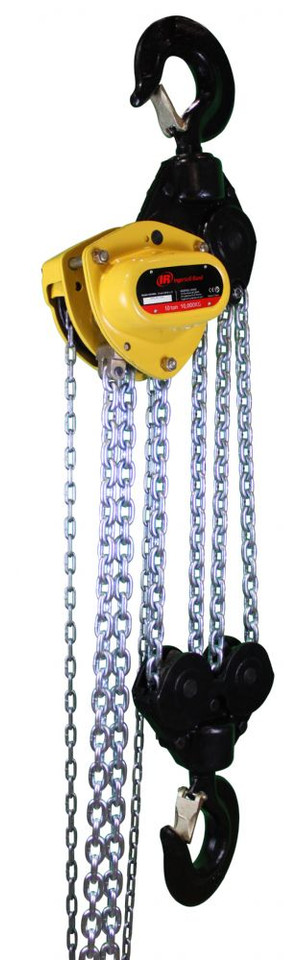

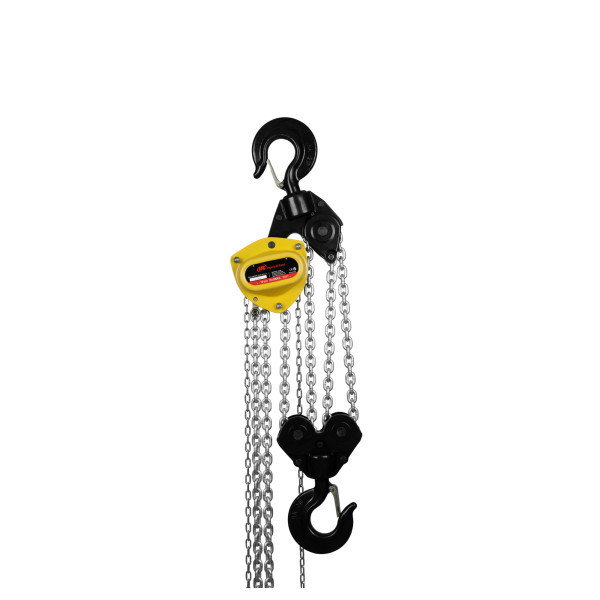

Ingersoll Rand KM150V-10-8 Manual Hoist is a Kinetic Series manual chain hoist designed for controlled hand-operated lifting and load positioning. This 1.5-ton capacity configuration is rated for 3,300 lbs. and provides 10 ft. of lift with an 8 ft. hand chain drop. It also includes an overload clutch, making this configuration suitable for compatible material-handling, maintenance, construction, and equipment installation applications.
The KM150 requires 77.1 lbs. of pull to lift the rated load and uses a single chain fall with premium Grade 100 electro-galvanized load chain specified at 1.41 lb./ft. Full bearing construction on the load sprockets and pinion shaft is designed to reduce pull effort during manual operation, while the reinforced double pawl brake provides controlled load handling. The 10 ft. lift and 8 ft. hand chain drop should be matched to the application's required vertical travel and operator access.
Type: Manual Chain Hoist | Series: Kinetic | Model: KM150V-10-8 | Capacity: 1.5 Ton (3,300 lbs.) | Lift: 10 ft. | Hand Chain Drop: 8 ft. | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 77.1 lbs. | Load Chain Weight: 1.41 lb./ft. | Shipping Weight with 10 ft. Lift: 36 lbs.
Features:
- Overload clutch provides the specified overload protection feature for this Kinetic Series configuration.
- All-steel construction provides the specified manual hoist design for compatible lifting applications.
- Reinforced double pawl brake with large-diameter pawl springs provides controlled load handling.
- Single chain fall provides a straightforward lifting arrangement for the 1.5-ton capacity.
- Full bearing construction on the load sprockets and pinion shaft is designed to reduce pull effort during manual operation.
- Premium Grade 100 electro-galvanized chain provides the specified load-chain construction for the Kinetic Series.
- Heavy-duty cast hook latches are designed to reduce the need for latch replacement.
- The 10 ft. lift provides a defined vertical travel configuration for compatible lifting tasks.
- The Kinetic Series is stated by the manufacturer to meet or exceed ASME B30.16 and HST-2M requirements and is CE certified.
Applications:
- Manual lifting and positioning of loads within the 3,300 lb. rated capacity.
- Maintenance and workshop operations requiring a 1.5-ton manual chain hoist with overload protection.
- Equipment installation and material-handling tasks requiring up to 10 ft. of lift.
- Industrial and construction applications compatible with a 1.5-ton manual lifting configuration.
- Replacement installations where the required capacity, lift, hand-chain drop, and overload-clutch configuration match the KM150V-10-8.
FAQs:
- Q: What is the capacity of the KM150V-10-8?
A: The hoist is rated for 1.5 tons, or 3,300 lbs. - Q: How much lift does the KM150V-10-8 provide?
A: This configuration provides 10 ft. of lift. - Q: What does the “8” in KM150V-10-8 indicate?
A: The configuration specifies an 8 ft. hand chain drop. - Q: What does the “V” indicate?
A: The supplied configuration identifies the hoist as including an overload clutch. - Q: How many chain falls does the KM150 use?
A: The KM150 uses one chain fall. - Q: How much pull is required to lift the rated load?
A: The manufacturer specifies 77.1 lbs. of pull to lift the rated load for the KM150. - Q: What type of load chain does the Kinetic Series use?
A: The Kinetic Series uses premium Grade 100 electro-galvanized load chain. The KM150 specifies a load-chain weight of 1.41 lb. per foot. - Q: What standards are associated with the Kinetic Series?
A: The manufacturer states that Kinetic Series manual chain hoists meet or exceed ASME B30.16 and HST-2M requirements and are CE certified.
| SKU | CAPACITY | NUMBER OF FALLS | PULL TO LIFT RATED LOAD | CHAIN WEIGHT | SHIPPING WEIGHT WITH 10' OF LIFT | ||||
|---|---|---|---|---|---|---|---|---|---|
| lbs | metric tons | lb | kg | lb/ft | kg/ft | lb | kg | ||
| KM025 | 550 | 0.25 | 1 | 41.8 | 19 | 0.25 | 0.11 | 9.5 | 4.3 |
| KM050 | 1,100 | 0.5 | 1 | 51.3 | 23.2 | 1.01 | 0.46 | 24.8 | 11.25 |
| KM100 | 2,200 | 1 | 1 | 63.8 | 29 | 1.21 | 0.55 | 28.4 | 12.9 |
| KM150 | 3,300 | 1.5 | 1 | 77.1 | 35 | 1.41 | 0.64 | 36 | 16.35 |
| KM200 | 4,400 | 2 | 1 | 79.4 | 36 | 1.55 | 0.7 | 46.3 | 21 |
| KM300 | 6,600 | 3 | 1 | 82.7 | 37.5 | 1.55 | 0.7 | 63.7 | 28.9 |
| KM500 | 11,000 | 5 | 2 | 74.9 | 34 | 2.96 | 1.34 | 93.7 | 42.5 |
| KM750 | 16,500 | 7.5 | 3 | 77.1 | 35 | 4.17 | 1.89 | 138.9 | 63 |
| KM1000 | 22,000 | 10 | 4 | 79.4 | 36 | 5.31 | 2.41 | 231.2 | 104.9 |
| KM2000 | 44,000 | 20 | 8 | 79.4x2 | 36x2 | 10.62 | 4.82 | 481.9 | 218.6 |
