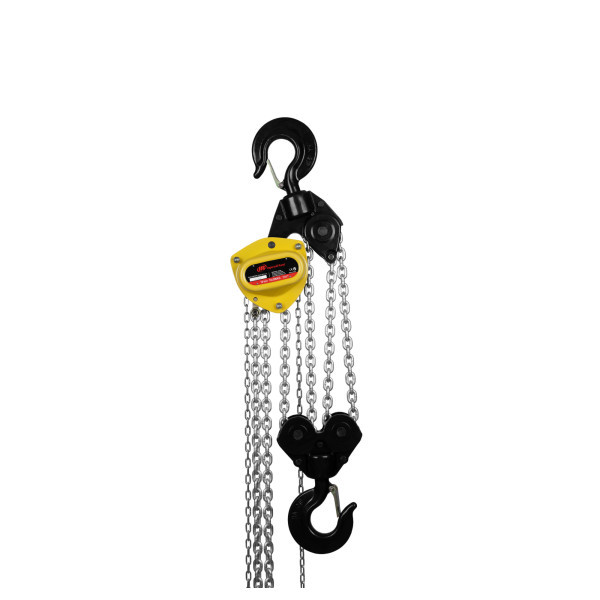

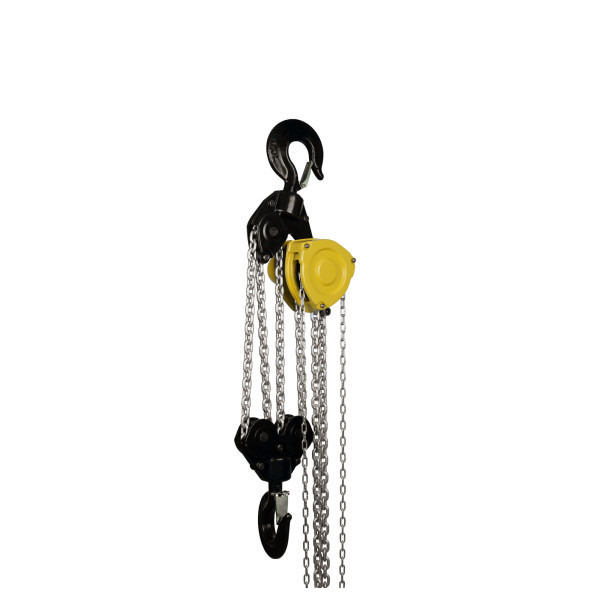

Ingersoll Rand KM100V-15-13 KM Kinetic Series Manual Hoist | 1 Ton Capacity | 15 ft Lift | 13 ft Drop | Overload Clutch

Ingersoll Rand KM100V-15-13 Manual Hoist is a Kinetic Series manual chain hoist designed for controlled hand-operated lifting and load positioning. This 1-ton-capacity configuration provides 15 ft. of lift with a 13 ft. hand-chain drop and includes an overload clutch. Its single chain fall provides a straightforward lifting arrangement for compatible material-handling, maintenance, and equipment installation applications.

The KM100 is rated for 2,200 lbs. and requires 63.8 lbs. of pull to lift the rated load. The Kinetic Series uses full bearing construction on the load sprockets and pinion shaft to support manual operation, while a reinforced double pawl brake provides controlled load handling. Premium Grade 100 electro-galvanized chain provides the specified load-chain construction. The 15 ft. lift and 13 ft. hand chain drop should be matched to the required lifting distance and available operator access.

Type: Manual Chain Hoist | Series: Kinetic | Model: KM100V-15-13 | Capacity: 1 Ton (2,200 lbs.) | Lift: 15 ft. | Hand Chain Drop: 13 ft. | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 63.8 lbs. | Load Chain Weight: 1.21 lb./ft.

Features:

• Overload clutch provides the specified overload protection feature for this Kinetic Series configuration.
• All-steel construction provides a durable manual hoist design for compatible lifting applications.
• Reinforced double pawl brake with large-diameter pawl springs provides controlled load handling.
• Single chain fall provides a straightforward lifting arrangement for the 1-ton capacity.
• Full bearing construction on the load sprockets and pinion shaft is designed to reduce pull effort during manual operation.
• Premium Grade 100 electro-galvanized chain provides the specified load-chain construction for the Kinetic Series.
• Heavy-duty cast hook latches are designed to reduce the need for latch replacement.
• The 15 ft. lift provides additional vertical travel for applications requiring a longer lifting distance.
• The Kinetic Series is stated by the manufacturer to meet or exceed ASME B30.16 and HST-2M requirements and is CE certified.

Applications:

• Manual lifting and positioning of loads within the 2,200 lb. rated capacity.
• Maintenance and workshop areas requiring a 1-ton manual lifting solution with overload protection.
• Equipment installation and material-handling tasks requiring up to 15 ft. of lift.
• Industrial and construction applications compatible with a 1-ton manual chain hoist.
• Replacement installations where the required capacity, lift, hand-chain drop, and overload-clutch configuration match the existing equipment.

FAQs:

• Q: What is the capacity of the KM100V-15-13?
  A: The hoist is rated for 1 ton, or 2,200 lbs.
• Q: How much lift does the KM100V-15-13 provide?
  A: This configuration provides 15 ft. of lift.
• Q: What does the “13” in KM100V-15-13 indicate?
  A: The configuration specifies a 13 ft. hand chain drop.
• Q: What does the “V” indicate?
  A: The supplied configuration identifies the hoist as including an overload clutch.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 63.8 lbs. of pull to lift the rated load for the KM100.
• Q: How many chain falls does the KM100 use?
  A: The KM100 uses one chain fall.
• Q: What type of load chain does the Kinetic Series use?
  A: The Kinetic Series uses premium Grade 100 electro-galvanized load chain.
• Q: What standards are associated with the Kinetic Series?
  A: The manufacturer states that Kinetic Series manual chain hoists meet or exceed ASME B30.16 and HST-2M requirements and are CE certified.
