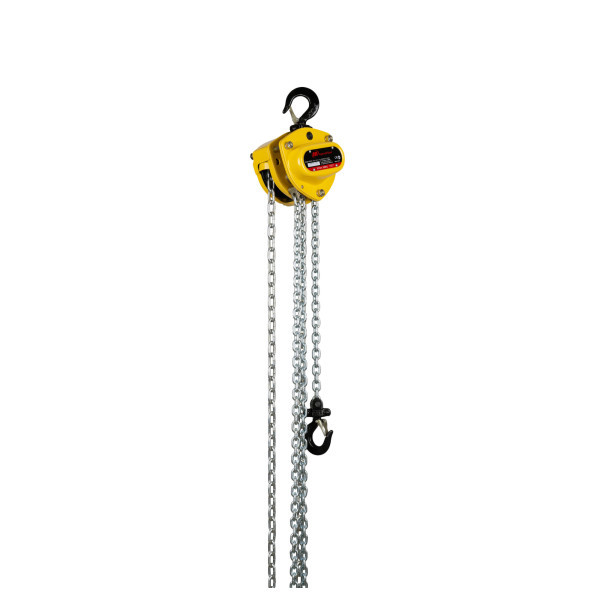

Ingersoll Rand KM1000V-15-13 KM Kinetic Series Manual Hoist | 10 Ton Capacity | 15 ft Lift | 13 ft Drop | Overload Clutch

Built for controlled lifting and positioning of heavy loads, the Ingersoll Rand KM1000V-15-13 KM Kinetic Series Manual Hoist provides a 10 ton capacity with a 15 ft lift configuration and overload clutch protection for industrial material handling applications. This manual chain hoist is suited for moving large components, machinery, and assemblies where controlled manual lifting is required without electrical or pneumatic power.

The KM1000V-15-13 features a 13 ft hand chain drop and a 4-chain fall configuration to provide the mechanical advantage required for lifting its rated load. With a lifting capability of 22,000 lbs, this KM Kinetic Series hoist combines extended lift height with overload clutch protection, making it suitable for industrial maintenance, fabrication, equipment installation, and general material handling tasks.

Type: Manual Chain Hoist | Series: KM Kinetic Series | Model: KM1000V-15-13 | Capacity: 10 Ton (22,000 lbs) | Lift: 15 ft | Hand Chain Drop: 13 ft | Chain Falls: 4 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 79.4 lbs

Features:

• KM Kinetic Series manual chain hoist configuration for controlled lifting and load positioning.
• 10 ton rated capacity supports lifting of large industrial components and heavy materials.
• Overload clutch helps limit operation when loads exceed the rated lifting capacity.
• 4-chain fall design provides the mechanical advantage required for lifting rated loads.
• 15 ft lift height accommodates applications requiring additional vertical load travel.
• 13 ft hand chain drop provides operator access for manual hoist operation.
• Manual operation allows use in locations where electrical or pneumatic power is not available.

Applications:

• Industrial maintenance — lifting and positioning machinery, equipment components, and fixtures during service work.
• Manufacturing facilities — supporting movement and positioning of heavy assemblies and production equipment.
• Fabrication operations — handling large components during assembly, alignment, and installation tasks.
• Equipment installation — assisting with controlled placement of industrial machinery and materials.
• Maintenance workshops — providing manual lifting capability where powered hoist systems are not required.

FAQs:

• Q: What is the lifting capacity of the KM1000V-15-13?
  A: The KM1000V-15-13 is rated for a 10 ton capacity, equal to 22,000 lbs, when used according to manufacturer specifications.
• Q: What does the overload clutch do on this manual hoist?
  A: The overload clutch is designed to help limit lifting operation when loads exceed the rated capacity of the hoist.
• Q: What is the difference between the 15 ft lift and 13 ft drop specifications?
  A: The 15 ft lift refers to the vertical distance the load can be raised. The 13 ft drop refers to the length of hand chain available for operating the hoist.
• Q: Does this hoist require electricity or compressed air?
  A: No. The KM1000V-15-13 is a manual chain hoist operated by hand chain and does not require an external power source.
• Q: Why does this hoist use a 4-chain fall configuration?
  A: The 4-chain fall configuration provides mechanical advantage, allowing manual lifting of the rated load with controlled movement.
