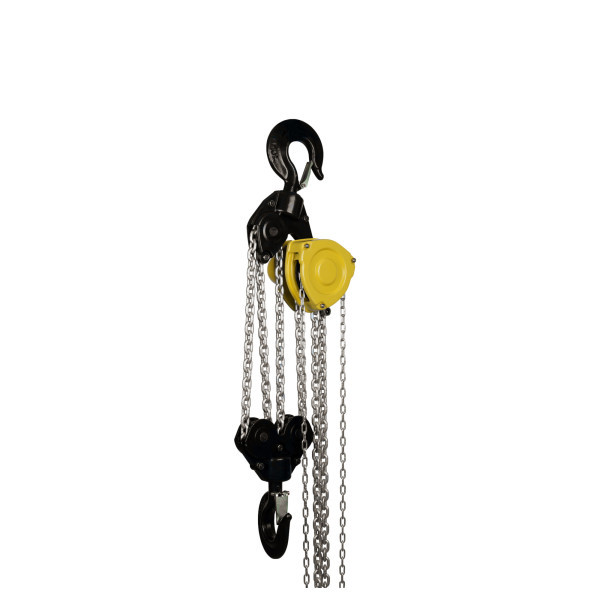

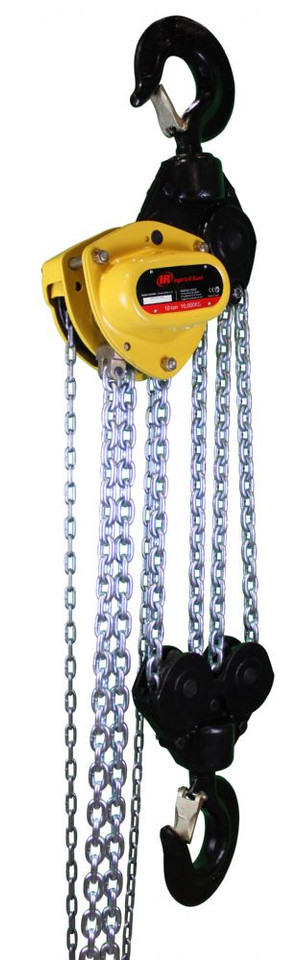

Ingersoll Rand KM1000-10-8 KM Kinetic Series Manual Hoist | 10 Ton Capacity | 10 ft Lift | 8 ft Drop

Built for lifting and positioning heavy loads in industrial material handling environments, the Ingersoll Rand KM1000-10-8 KM Kinetic Series Manual Hoist provides a 10 ton capacity with a 10 ft lift configuration for moving large components, machinery, and assemblies where controlled manual lifting is required. This manual chain hoist features a 4-chain fall configuration and an 8 ft hand chain drop, allowing operators to raise loads using manual chain operation without requiring electrical or pneumatic power.

The KM Kinetic Series manual hoist is suited for applications where dependable load handling, portability, and precise positioning are important. With a rated load capacity of 22,000 lbs, the KM1000-10-8 provides the lifting capability required for industrial maintenance, equipment installation, fabrication, and general material handling tasks.

Type: Manual Chain Hoist | Series: KM Kinetic Series | Model: KM1000-10-8 | Capacity: 10 Ton (22,000 lbs) | Lift: 10 ft | Hand Chain Drop: 8 ft | Chain Falls: 4 | Pull to Lift Rated Load: 79.4 lbs | Shipping Weight: 231.2 lbs

Features:

• KM Kinetic Series manual chain hoist configuration for controlled manual lifting operations.
• 10 ton rated capacity supports lifting of large components and industrial loads.
• 4-chain fall design provides the mechanical advantage required for lifting rated loads.
• 10 ft lift height accommodates elevated load positioning and material handling requirements.
• 8 ft hand chain drop provides operator access for manual hoist operation.
• Manual operation allows use in locations where electrical or pneumatic power is not available.

Applications:

• Industrial maintenance — lifting and positioning machinery, components, and equipment during service work.
• Fabrication and assembly operations — handling large parts and assemblies during installation or positioning.
• Manufacturing facilities — supporting manual material movement where controlled lifting is required.
• Equipment installation — assisting with placement and alignment of heavy industrial components.
• General material handling — moving heavy loads in workshops, plants, and maintenance areas.

FAQs:

• Q: What does the 10 ton capacity mean on the KM1000-10-8?
  A: The 10 ton rating means the hoist is capable of lifting loads up to 22,000 lbs when used according to manufacturer specifications.
• Q: Is this hoist powered by electricity or air?
  A: No. The KM1000-10-8 is a manual chain hoist operated by hand chain, making it suitable for applications without electrical or pneumatic power.
• Q: What is the difference between lift and hand chain drop?
  A: Lift refers to the vertical distance the load can be raised. Hand chain drop refers to the length of the operating chain available for the user to pull during manual operation.
• Q: How many chain falls does the KM1000-10-8 have?
  A: This model uses a 4-chain fall configuration as specified in the Ingersoll Rand KM Kinetic Series manual hoist catalog.

 Looking for more information about Ingersoll Rand Manual Chain Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
