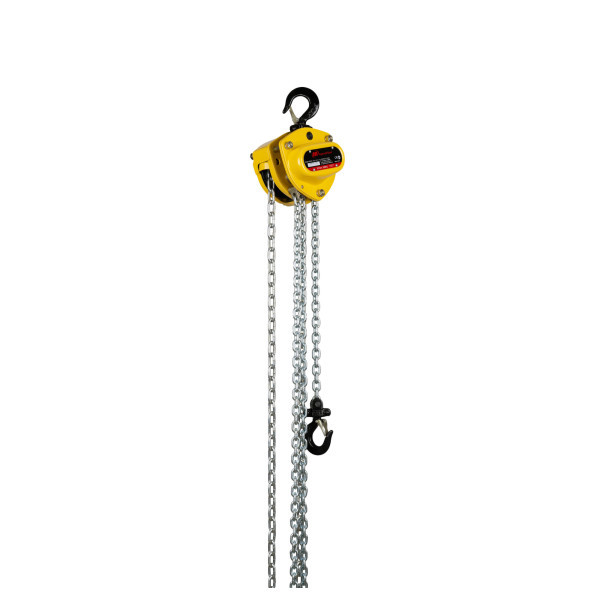

Ingersoll Rand KM100-20-18 KM Kinetic Series Manual Hoist | 1 Ton Capacity | 20 ft Lift | 18 ft Drop

Ingersoll Rand KM100-20-18 Manual Hoist is a Kinetic Series manual chain hoist for controlled hand-operated lifting and load positioning. This 1-ton capacity configuration provides 20 ft. of lift with an 18 ft. hand chain drop, giving operators extended vertical reach for compatible material-handling, maintenance, and equipment installation tasks.

The KM100 is rated for 2,200 lbs. and uses a single chain fall. The manufacturer specifies 63.8 lbs. of pull to lift the rated load, while full bearing construction on the load sprockets and pinion shaft is intended to reduce pull effort and extend service life. A reinforced double pawl brake provides the specified braking system, and premium Grade 100 electro-galvanized chain provides the load-chain construction. The 20 ft. lift and 18 ft. hand chain drop should be matched to the required lifting distance and operator access.

Type: Manual Chain Hoist | Series: Kinetic | Model: KM100-20-18 | Capacity: 1 Ton (2,200 lbs.) | Lift: 20 ft. | Hand Chain Drop: 18 ft. | Chain Falls: 1 | Pull to Lift Rated Load: 63.8 lbs. | Load Chain Weight: 1.21 lb./ft.

Features:

• All-steel construction provides a durable manual hoist design while keeping the Kinetic Series relatively light for its capacity.
• Reinforced double pawl brake with large-diameter pawl springs provides the specified braking system for controlled load handling.
• Single chain fall provides a straightforward lifting arrangement for the 1-ton capacity.
• Full bearing construction on the load sprockets and pinion shaft is intended to reduce pull effort and support longer service life.
• Premium Grade 100 electro-galvanized chain provides corrosion-resistant load-chain construction.
• Heavy-duty cast hook latches are intended to reduce latch replacement requirements.
• The 20 ft. lift provides extended vertical travel for applications requiring a longer lifting distance.
• The Kinetic Series is CE certified and meets or exceeds regional requirements including ASME B30.16 and HST-2M.

Applications:

• Manual lifting and positioning of loads within the 2,200 lb. rated capacity.
• Maintenance and workshop operations requiring a 1-ton manual lifting solution with extended vertical travel.
• Equipment installation and material-handling tasks requiring up to 20 ft. of lift.
• Industrial and construction applications compatible with a 1-ton manual chain hoist.
• Replacement installations where the required capacity, lift, hand-chain drop, and mounting arrangement match the KM100-20-18 configuration.

FAQs:

• Q: What is the capacity of the KM100-20-18?
  A: The hoist is rated for 1 ton, or 2,200 lbs.
• Q: How much lift does the KM100-20-18 provide?
  A: This configuration provides 20 ft. of lift.
• Q: What does the “18” in KM100-20-18 indicate?
  A: The configuration specifies an 18 ft. hand chain drop.
• Q: How many chain falls does the KM100 use?
  A: The KM100 uses one chain fall.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 63.8 lbs. of pull to lift the rated load for the KM100.
• Q: What type of load chain does the Kinetic Series use?
  A: The Kinetic Series uses premium Grade 100 electro-galvanized load chain.
• Q: Is an overload clutch included with the KM100-20-18?
  A: The manufacturer states that an overload clutch is available on all Kinetic Series capacities, but the supplied KM100-20-18 configuration does not identify an overload clutch as included.
• Q: What standards are associated with the Kinetic Series?
  A: The manufacturer states that Kinetic Series manual chain hoists are CE certified and meet or exceed regional requirements including ASME B30.16 and HST-2M.
