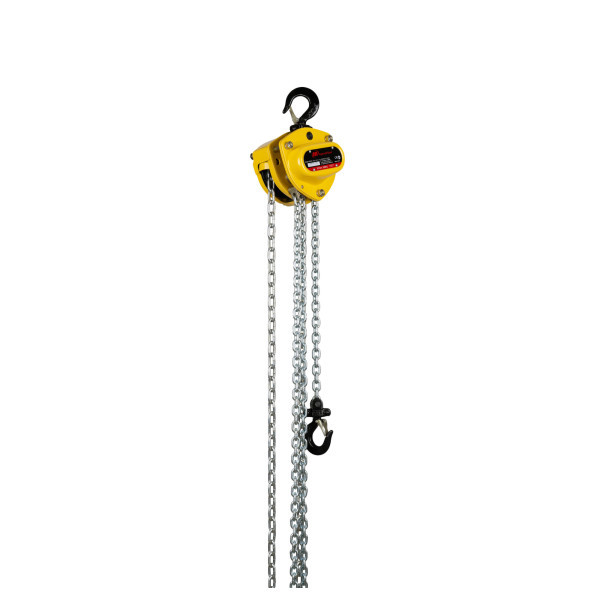

Ingersoll Rand KM100-15-10 KM Kinetic Series Manual Hoist | 1 Ton Capacity | 15 ft Lift | 10 ft Drop

Ingersoll Rand KM100-15-10 Manual Hoist is a Kinetic Series manual chain hoist designed for controlled hand-operated lifting and load positioning. This 1-ton capacity configuration provides 15 ft. of lift with a 10 ft. hand chain drop, making it suitable for compatible material-handling, maintenance, and equipment installation applications requiring extended vertical travel.

The KM100 is rated for 2,200 lbs. and uses a single chain fall. The manufacturer specifies 63.8 lbs. of pull to lift the rated load. Full bearing construction on the load sprockets and pinion shaft supports manual operation, while the reinforced double pawl brake provides controlled load handling. The 15 ft. lift and 10 ft. hand chain drop should be matched to the required lifting distance and operator access.

Type: Manual Chain Hoist | Series: Kinetic | Model: KM100-15-10 | Capacity: 1 Ton (2,200 lbs.) | Lift: 15 ft. | Hand Chain Drop: 10 ft. | Chain Falls: 1 | Pull to Lift Rated Load: 63.8 lbs. | Load Chain Weight: 1.21 lb./ft.

Features:

• All-steel construction provides a durable manual hoist design for compatible lifting applications.
• Reinforced double pawl brake with large-diameter pawl springs provides controlled load handling.
• Single chain fall provides a straightforward lifting arrangement for the 1-ton capacity.
• Full bearing construction on the load sprockets and pinion shaft is designed to reduce pull effort during manual operation.
• Premium Grade 100 electro-galvanized chain provides the specified load-chain construction for the Kinetic Series.
• Heavy-duty cast hook latches are designed to reduce the need for latch replacement.
• The 15 ft. lift provides extended vertical travel for applications requiring a longer lifting distance.
• The Kinetic Series is stated by the manufacturer to meet or exceed ASME B30.16 and HST-2M requirements and is CE certified.

Applications:

• Manual lifting and positioning of loads within the 2,200 lb. rated capacity.
• Maintenance and workshop areas requiring a 1-ton manual lifting solution.
• Equipment installation and material-handling tasks requiring up to 15 ft. of lift.
• Industrial and construction applications compatible with a 1-ton manual chain hoist.
• Replacement installations where the required capacity, lift, hand-chain drop, and mounting arrangement match the KM100-15-10 configuration.

FAQs:

• Q: What is the capacity of the KM100-15-10?
  A: The hoist is rated for 1 ton, or 2,200 lbs.
• Q: How much lift does the KM100-15-10 provide?
  A: This configuration provides 15 ft. of lift.
• Q: What does the “10” in KM100-15-10 indicate?
  A: The configuration specifies a 10 ft. hand chain drop.
• Q: How many chain falls does the KM100 use?
  A: The KM100 uses one chain fall.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 63.8 lbs. of pull to lift the rated load for the KM100.
• Q: What type of load chain does the Kinetic Series use?
  A: The Kinetic Series uses premium Grade 100 electro-galvanized load chain.
• Q: Is an overload clutch included with the KM100-15-10?
  A: The manufacturer states that an overload clutch is available on Kinetic Series capacities, but the supplied KM100-15-10 configuration does not identify an overload clutch as included.
• Q: What standards are associated with the Kinetic Series?
  A: The manufacturer states that Kinetic Series manual chain hoists meet or exceed ASME B30.16 and HST-2M requirements and are CE certified.
