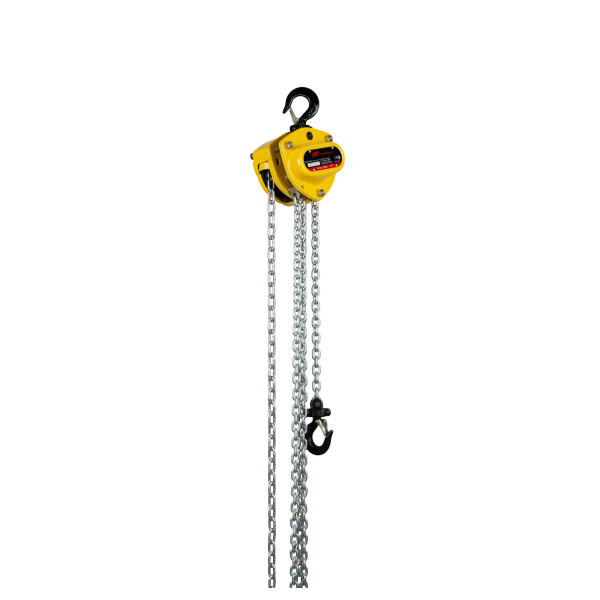

Ingersoll Rand KM025V-15-13 KM Kinetic Series Manual Hoist | 1/4 Ton Capacity | 15 ft Lift | 13 ft Drop | Overload Clutch

Ingersoll Rand KM025V-15-13 Manual Hoist is a compact Kinetic Series lifting solution for applications requiring controlled, hand-operated load positioning. This 1/4-ton capacity hoist provides 15 ft. of lift with a 13 ft. hand chain drop and includes an overload clutch. Its single chain fall and manual operation make it suitable for compatible lifting and positioning tasks where the load must be raised and lowered without powered equipment.

The KM025 is rated for 550 lbs. and requires 41.8 lbs. of pull to lift the rated load. The Kinetic Series uses full bearing construction on the load sprocket and pinion shaft to support easier manual operation, along with a reinforced double pawl brake for controlled load handling. The 15 ft. lift and 13 ft. hand chain drop should be considered when matching this configuration to the required lifting distance and available operator access.

Type: Manual Chain Hoist | Series: Kinetic | Model: KM025V-15-13 | Capacity: 1/4 Ton (550 lbs.) | Lift: 15 ft. | Hand Chain Drop: 13 ft. | Chain Falls: 1 | Overload Protection: Overload Clutch | Pull to Lift Rated Load: 41.8 lbs. | Load Chain Weight: 0.25 lb./ft.

Features:

• Overload clutch provides an overload protection device for the hoist configuration.
• All-steel construction provides a compact manual hoist design for compatible lifting applications.
• Reinforced double pawl brake with large-diameter pawl springs provides controlled load handling.
• Single chain fall provides a straightforward lifting arrangement for the 1/4-ton capacity.
• Full bearing construction on the load sprocket and pinion shaft is designed to reduce pull effort during manual operation.
• Premium Grade 100 electro-galvanized chain provides the specified load-chain construction for the Kinetic Series.
• Heavy-duty cast hook latches are designed to reduce the need for latch replacement.
• The Kinetic Series is stated by the manufacturer to meet or exceed ASME B30.16 and HST-2M requirements and is CE certified.

Made in USA:

Applications:

• Manual lifting and positioning of loads within the 550 lb. rated capacity.
• Maintenance and workshop areas requiring a compact hand-operated lifting device.
• Equipment installation and material-handling tasks requiring a 15 ft. lifting distance.
• Industrial and construction applications compatible with a 1/4-ton manual chain hoist.
• Replacement installations where a 13 ft. hand chain drop and integrated overload clutch match the lifting requirements.

FAQs:

• Q: What is the capacity of the KM025V-15-13?
  A: The hoist is rated for 1/4 ton, with the manufacturer specifying a 550 lb. rated capacity.
• Q: How much lift does the KM025V-15-13 provide?
  A: This configuration provides 15 ft. of lift.
• Q: What does the “13” in KM025V-15-13 indicate?
  A: The configuration specifies a 13 ft. hand chain drop, providing the operator with the stated chain length for manual control.
• Q: What does the “V” indicate in KM025V?
  A: The supplied product information identifies this configuration as including an overload clutch.
• Q: How much hand-chain pull is required to lift the rated load?
  A: The manufacturer specifies 41.8 lbs. of pull to lift the rated load for the KM025.
• Q: How many chain falls does this hoist have?
  A: The KM025 uses one chain fall.
• Q: What is the purpose of the overload clutch?
  A: The overload clutch serves as an overload protection device intended to help protect the hoist from lifting loads beyond its rated capacity.
• Q: What standards are associated with the Kinetic Series?
  A: The manufacturer states that Kinetic Series manual chain hoists meet or exceed ASME B30.16 and HST-2M requirements and are CE certified.
