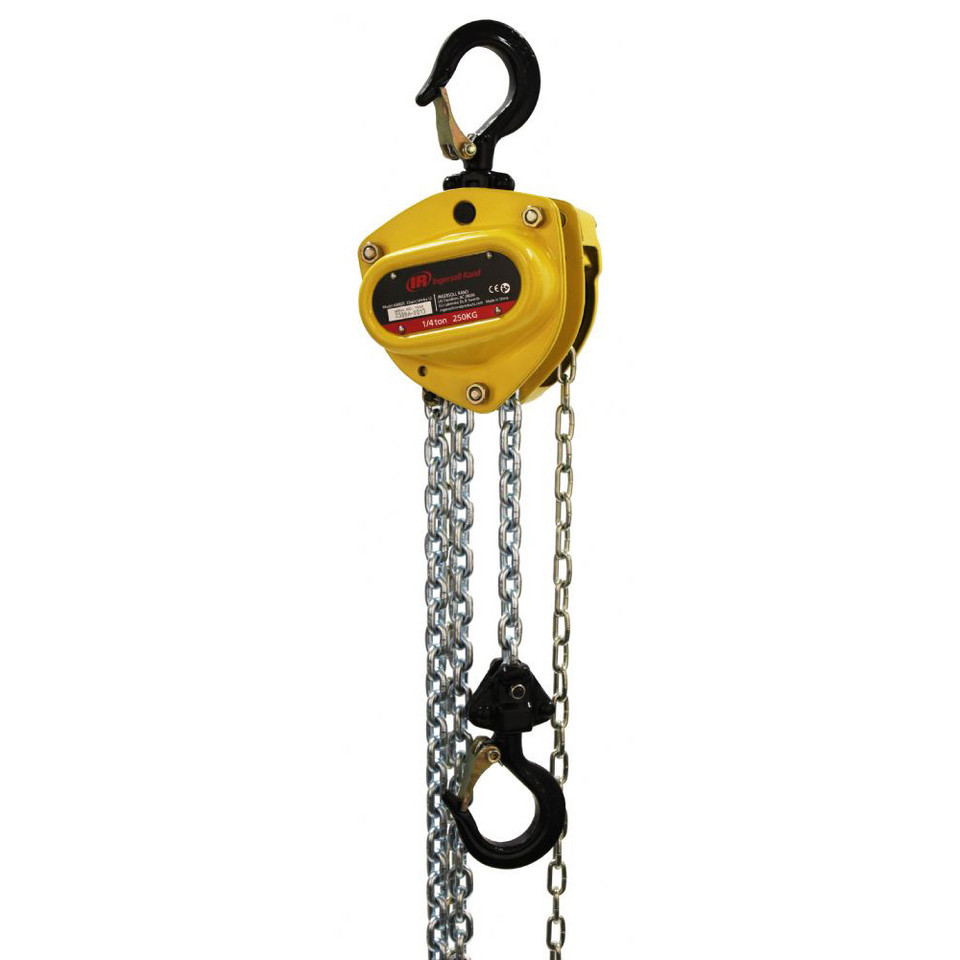

Ingersoll Rand KM025-30-28 KM Kinetic Series Manual Hoist | 1/4 Ton Capacity | 30 ft Lift | 28 ft Drop

Ingersoll Rand KM025-30-28 Manual Hoist is a Kinetic Series manual chain hoist for controlled hand-operated lifting and load positioning. This 1/4-ton capacity configuration provides 30 ft. of lift with a 28 ft. hand chain drop, giving operators extended reach for lifting tasks that require greater vertical travel. Its single chain fall and manual operation provide a straightforward lifting arrangement for compatible material-handling, maintenance, and equipment installation applications.

The KM025 is rated for 550 lbs. and requires 41.8 lbs. of pull to lift the rated load. The Kinetic Series uses full bearing construction on the load sprocket and pinion shaft to support manual operation, along with a reinforced double pawl brake for controlled load handling. The 30 ft. lift and 28 ft. hand chain drop should be matched carefully to the required lifting distance and available operator access.

Type: Manual Chain Hoist | Series: Kinetic | Model: KM025-30-28 | Capacity: 1/4 Ton (550 lbs.) | Lift: 30 ft. | Hand Chain Drop: 28 ft. | Chain Falls: 1 | Pull to Lift Rated Load: 41.8 lbs. | Load Chain Weight: 0.25 lb./ft.

Features:

• All-steel construction provides a compact manual hoist design for compatible lifting applications.
• Reinforced double pawl brake with large-diameter pawl springs provides controlled load handling.
• Single chain fall provides a straightforward lifting arrangement for the 1/4-ton capacity.
• Full bearing construction on the load sprocket and pinion shaft is designed to reduce pull effort during manual operation.
• Premium Grade 100 electro-galvanized chain provides the specified load-chain construction for the Kinetic Series.
• Heavy-duty cast hook latches are designed to reduce the need for latch replacement.
• The 30 ft. lift provides extended vertical travel for applications requiring a longer lifting distance.
• The Kinetic Series is stated by the manufacturer to meet or exceed ASME B30.16 and HST-2M requirements and is CE certified.

Made in USA:

Applications:

• Manual lifting and positioning of loads within the 550 lb. rated capacity.
• Maintenance and workshop areas requiring extended lifting distance.
• Equipment installation and material-handling tasks requiring up to 30 ft. of lift.
• Industrial and construction applications compatible with a 1/4-ton manual chain hoist.
• Replacement installations where the required lift and hand-chain drop match the KM025-30-28 configuration.

FAQs:

• Q: What is the capacity of the KM025-30-28?
  A: The hoist is rated for 1/4 ton, with the manufacturer specifying a 550 lb. rated capacity.
• Q: How much lift does the KM025-30-28 provide?
  A: This configuration provides 30 ft. of lift.
• Q: What does the “28” in KM025-30-28 indicate?
  A: The configuration specifies a 28 ft. hand chain drop.
• Q: How many chain falls does the KM025 use?
  A: The KM025 uses one chain fall.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 41.8 lbs. of pull to lift the rated load for the KM025.
• Q: Is an overload clutch included with the KM025-30-28?
  A: The manufacturer states that an overload clutch is available on Kinetic Series capacities, but the supplied KM025-30-28 configuration does not identify an overload clutch as included.
• Q: What standards are associated with the Kinetic Series?
  A: The manufacturer states that Kinetic Series manual chain hoists meet or exceed ASME B30.16 and HST-2M requirements and are CE certified.
