Ingersoll Rand KM025-15-13 KM Kinetic Series Manual Hoist | 1/4 Ton Capacity | 15 ft Lift | 13 ft Drop

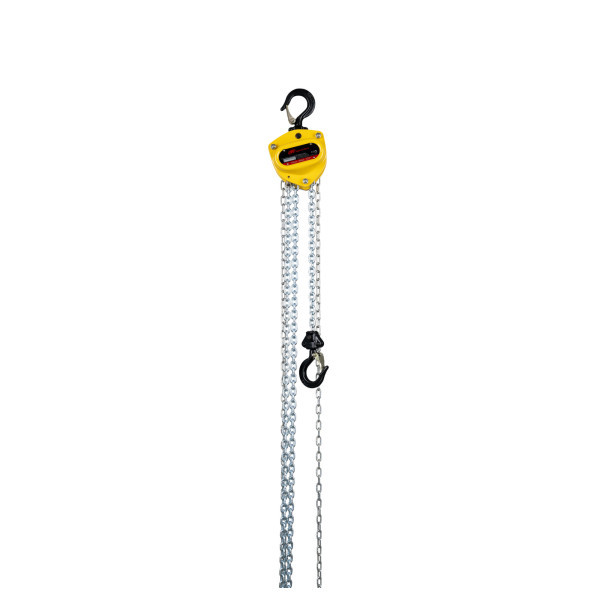

Ingersoll Rand KM025-15-13 Manual Chain Hoist is a compact Kinetic Series lifting solution for applications requiring controlled, hand-operated load positioning. This 1/4-ton capacity hoist is configured with 15 ft. of lift and a 13 ft. hand chain drop, providing additional lifting distance compared with shorter-lift KM025 configurations. Its single chain fall, all-steel construction, bearing-supported components, and reinforced brake system provide a practical configuration for compatible manual lifting applications.

The KM025 is rated for 550 lbs. and requires 41.8 lbs. of pull to lift the rated load. The manufacturer specifies a 0.25 lb./ft. load-chain weight and identifies the Kinetic Series as using premium Grade 100 electro-galvanized chain. The 15 ft. lift and 13 ft. hand chain drop should be considered when matching this configuration to the required lifting distance and available operating space.

Type: Manual Chain Hoist | Series: Kinetic | Model: KM025-15-13 | Capacity: 1/4 Ton (550 lbs.) | Lift: 15 ft. | Hand Chain Drop: 13 ft. | Chain Falls: 1 | Pull to Lift Rated Load: 41.8 lbs. | Load Chain Weight: 0.25 lb./ft.

Features:

• All-steel construction provides a compact manual hoist design with a focus on durability and reduced weight.
• Reinforced double pawl brake with large-diameter pawl springs provides the Kinetic Series brake system.
• Single chain fall simplifies the lifting arrangement for this 1/4-ton capacity model.
• Full bearing construction on the load sprocket and pinion shaft is designed to reduce pull effort and support service life.
• Premium Grade 100 electro-galvanized chain is designed for corrosion resistance and durability.
• Heavy-duty cast hook latches are designed to reduce the need for latch replacement.
• Optional overload clutch is available across Kinetic Series capacities.
• The Kinetic Series is CE certified and is stated by the manufacturer to meet or exceed regional requirements including ASME B30.16 and HST-2M.

Made in USA:

Applications:

• Manual lifting and positioning of loads within the hoist's rated capacity.
• Maintenance and workshop applications requiring a compact hand-operated lifting device.
• Equipment installation and material-handling tasks where a 15 ft. lift is required.
• Industrial and construction applications compatible with a 1/4-ton manual chain hoist.
• Replacement installations where the required lift and hand-chain drop match the KM025-15-13 configuration.

FAQs:

• Q: What is the capacity of the KM025-15-13?
  A: The KM025 is rated at 1/4 ton, or 550 lbs.
• Q: How much lift does this configuration provide?
  A: The KM025-15-13 provides 15 ft. of lift.
• Q: What does the “13” in KM025-15-13 represent?
  A: The Kinetic Series catalog uses a base model, lift, and hand-chain-drop format. In this configuration, the 13 represents a 13 ft. hand chain drop.
• Q: How much pull is required to lift the rated load?
  A: The manufacturer specifies 41.8 lbs. of pull to lift the rated load for the KM025.
• Q: How many chain falls does the KM025 use?
  A: The KM025 uses one chain fall.
• Q: Is an overload clutch included?
  A: The manufacturer states that an overload clutch is available on all Kinetic Series capacities, but the supplied configuration does not establish that the optional clutch is included.
• Q: What standards are associated with the Kinetic Series?
  A: The manufacturer states that Kinetic Series hoists are CE certified and meet or exceed regional requirements including ASME B30.16 and HST-2M.
