Ingersoll Rand DXS2 Air Impact Wrench | 2236QTIMAX-O | 1500 (ft-lbs) Torque | 1/2" Square Drive

For technicians who need powerful fastener removal in a compact, easily identifiable tool, the Ingersoll Rand 2236QTIMAX-O DXS2 Air Impact Wrench combines high breakaway torque with interchangeable drive flexibility. Part of the 2236 MAX High Visibility Series, this pneumatic impact wrench features a distinctive high-visibility orange housing that helps technicians identify their equipment in busy service bays and workshops. Delivering 1,500 ft-lbs of nut-busting torque (maximum breakaway force for loosening stubborn fasteners), it provides substantial removal capability for automotive repair, fleet maintenance, and industrial machinery servicing. The patented DXS Drive Xchange System allows operators to change anvils directly, providing different drive sizes and reach options without relying on conventional socket adapters.

The 2236QTIMAX-O includes a 1/2" standard friction-ring anvil (A41H) for retaining compatible impact sockets during fastening and removal. Its patented motor design provides a 7,500 RPM maximum free speed and 1,350 impacts per minute, supporting efficient operation on resistant threaded connections. A lightweight titanium hammer case protects the internal impact mechanism, while the patented direct greasing design simplifies routine lubrication. The wrench measures just 7.36 inches long and weighs 4.4 lbs, making it practical for repetitive use and access around vehicle components. Ingersoll Rand's quieter airflow design also reduces noise by approximately four decibels compared with the 2235TIMAX, providing another advantage for professional workshops and maintenance facilities.

Type: Pneumatic Impact Wrench | Brand: Ingersoll Rand | Model: 2236QTIMAX-O | Series: 2236 MAX High Visibility Series | System: DXS Drive Xchange System | Drive Size: 1/2" | Drive Type: Square Drive | Included Anvil: 1/2" Standard Friction Ring (A41H) | Configuration: Pistol Grip | Color: High-Visibility Orange | Breakaway Torque: 1,500 ft-lbs (2,034 Nm) | Maximum Free Speed: 7,500 RPM | Impacts Per Minute: 1,350 | Impacting Sound Level: 94.2 dB(A) | Weight: 4.4 lbs (1.99 kg) | Overall Length: 7.36" (187 mm) | Air Inlet: 1/4" NPTF/NPT | Minimum Hose Size: 3/8" (10 mm)

Features:

• Delivers 1,500 ft-lbs of nut-busting torque from a patented motor design to loosen stubborn fasteners during vehicle and equipment servicing.
• Patented DXS Drive Xchange System allows direct anvil replacement without conventional adapters that can reduce power transfer and increase tool length.

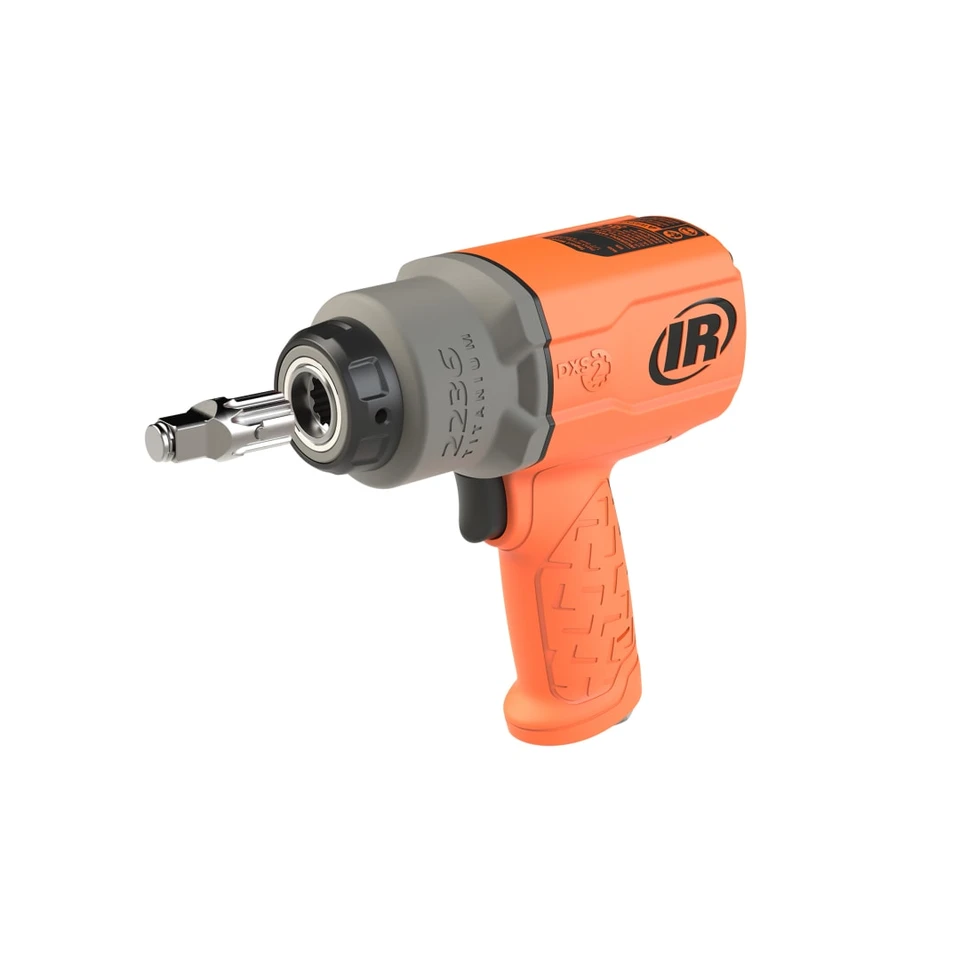

• Includes a 1/2-inch standard friction-ring anvil (A41H) for secure retention of compatible impact sockets.
• Additional interchangeable anvils are available separately in 3/8-inch, 1/2-inch, and 3/4-inch drive configurations, with extended lengths ranging from 2 to 10 inches.
• Lightweight titanium hammer case helps protect the impact mechanism against wear and impacts encountered during regular workshop use.
• Patented direct greasing design simplifies hammer lubrication and supports tool reliability.
• Compact 7.36-inch body, 4.4-pound weight, and balanced construction improve handling during repeated fastening tasks and work in confined areas.
• High-visibility orange housing makes the wrench easier to locate, while quieter operation reduces noise compared with the 2235TIMAX.

Applications:

• Automotive repair and tire service – loosening wheel fasteners, suspension bolts, and threaded connections during routine vehicle maintenance.
• Fleet and commercial vehicle maintenance – removing mechanical fasteners during scheduled servicing, equipment inspections, and component replacement.
• Industrial maintenance and MRO – servicing bolted connections on production machinery, equipment housings, and mechanical assemblies.
• Construction and agricultural equipment repair – removing accessible threaded fasteners from machinery components and service assemblies.
• General garage and mechanical workshops – performing vehicle restoration, equipment repair, and fastening tasks where interchangeable drive configurations provide additional flexibility.

FAQs:

• Q: How much torque does the 2236QTIMAX-O deliver?
  A: It provides 1,500 ft-lbs of nut-busting torque.
• Q: What does the DXS Drive Xchange System do?
  A: It allows direct anvil changes without conventional socket adapters.
• Q: Which anvil is included with this model?
  A: A 1/2" standard friction-ring anvil (A41H) is included.
• Q: Can other drive sizes be used?
  A: Yes. Compatible 3/8", 1/2", and 3/4" anvils are available separately.
