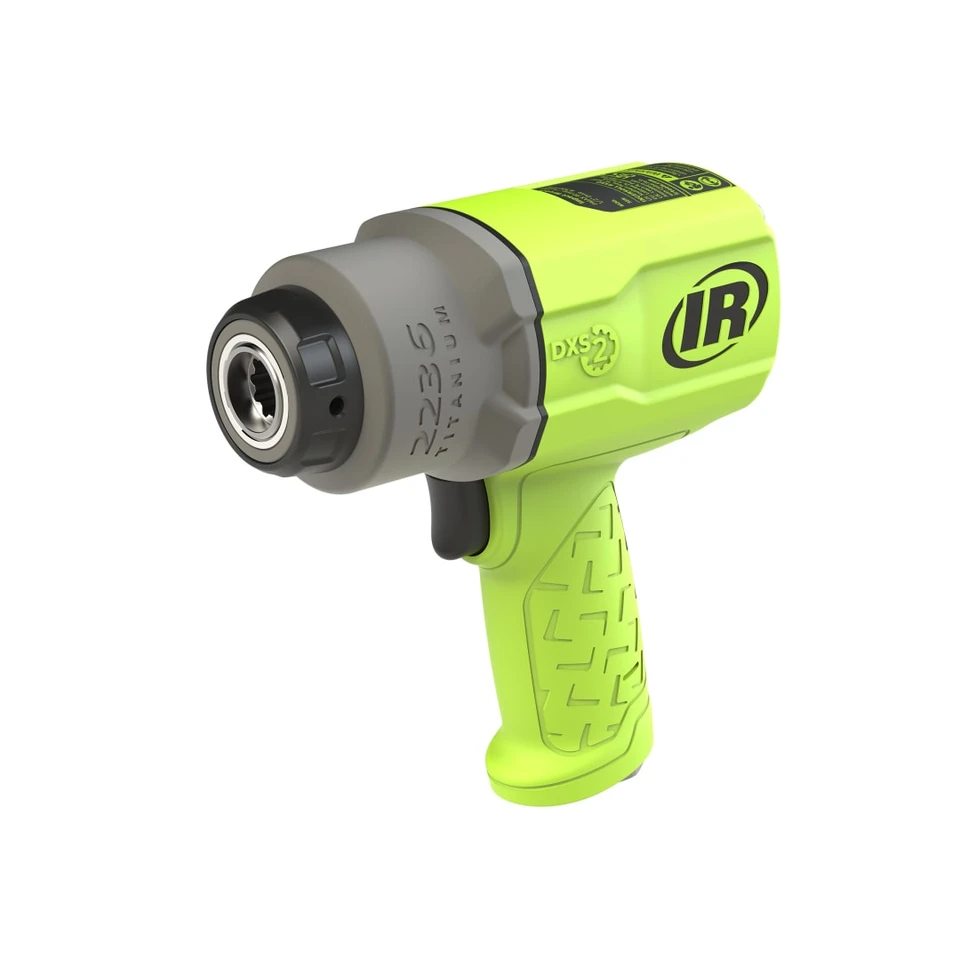

Ingersoll Rand DXS2 Air Impact Wrench | 2236QTIMAX-G | 1500 (ft-lbs) Torque | 1/2" Square Drive

For automotive technicians and industrial maintenance teams who need strong breakaway torque with greater socket flexibility, the Ingersoll Rand 2236QTIMAX-G DXS2 Air Impact Wrench combines power, compact handling, and interchangeable drive technology. Featuring a 1/2" square drive and a distinctive high-visibility green housing, this pneumatic impact wrench delivers 1,500 ft-lbs of nut-busting torque (maximum breakaway force for loosening stubborn fasteners). Its patented DXS2 Drive Xchange System allows technicians to replace the drive anvil directly, eliminating the need for conventional socket adapters that can reduce power transfer. The included 1/2-inch standard friction-ring anvil secures compatible impact sockets while allowing convenient socket changes during maintenance work.

Powered by a patented motor design, the 2236QTIMAX-G operates at a 7,500 RPM maximum free speed and delivers 1,350 blows per minute for efficient fastening and removal. Its lightweight titanium hammer case protects the impact mechanism, while the patented direct greasing design simplifies lubrication and supports tool reliability. At just 4.4 lbs and 7.36 inches long, this compact impact wrench offers improved balance and access to confined work areas. Ingersoll Rand also reports operation approximately four decibels quieter than the 2235TiMAX, helping reduce workplace noise. The bright green finish makes the tool easier to identify in crowded service bays, industrial workshops, and vehicle maintenance facilities.

Type: Pneumatic Impact Wrench | Brand: Ingersoll Rand | Model: 2236QTIMAX-G | Series: 2236 MAX High Visibility Series | System: DXS2 Drive Xchange System | Drive Size: 1/2" | Drive Type: Square Drive | Included Anvil: 1/2" Standard Friction Ring (A41H) | Configuration: Pistol Grip | Color: High-Visibility Green | Nut-Busting Torque: 1,500 ft-lbs (2,034 Nm) | Free Speed: 7,500 RPM | Blows Per Minute: 1,350 | Impacting Sound Level: 94.2 dB(A) | Weight: 4.4 lbs (1.99 kg) | Overall Length: 7.36" (187 mm) | Air Inlet: 1/4" NPTF/NPT | Minimum Hose Size: 3/8" (10 mm)

Features:

• Delivers 1,500 ft-lbs of nut-busting torque through a patented motor design for loosening stubborn fasteners during vehicle and equipment maintenance.
• Patented DXS2 Drive Xchange System allows interchangeable anvils to be installed directly without conventional adapters that can reduce power transfer.
• Includes a 1/2-inch standard friction-ring anvil (A41H) for secure attachment of compatible impact sockets.
• Interchangeable anvil options are available separately in 3/8-inch, 1/2-inch, and 3/4-inch drive sizes, with multiple lengths from 2 to 10 inches.
• Lightweight titanium hammer case provides durable protection for the internal impact mechanism.
• Patented direct greasing design simplifies routine lubrication and helps maintain tool reliability.
• Compact 7.36-inch length, 4.4-pound weight, and improved balance help reduce fatigue and increase accessibility in confined work areas.
• Quiet operation and high-visibility green housing improve the working experience and make the tool easier to identify in busy workshops.

Applications:

• Automotive Repair and Tire Service: Removing wheel fasteners, suspension bolts, and stubborn threaded connections during vehicle maintenance.
• Fleet and Commercial Vehicle Maintenance: Servicing accessible mechanical fasteners on fleet vehicles and transportation equipment.
• Industrial Maintenance and MRO: Loosening and installing bolts on production machinery, equipment housings, and mechanical assemblies.
• Heavy Equipment Servicing: Performing fastener removal and repair work on construction and agricultural equipment within the tool's capacity.
• General Garage and Mechanical Workshops: Handling mechanical repairs, vehicle restoration projects, and fastening tasks where interchangeable drive options provide additional flexibility.

FAQs:

• Q: What is the maximum torque of the 2236QTIMAX-G?
  A: It delivers 1,500 ft-lbs of nut-busting torque.
• Q: What is the DXS2 Drive Xchange System?
  A: It allows quick anvil changes without conventional socket adapters.
• Q: What drive size is included?
  A: A 1/2" standard friction-ring anvil (A41H) is included.
• Q: Are other drive sizes available?
  A: Yes. Additional 3/8", 1/2", and 3/4" anvils are sold separately.
