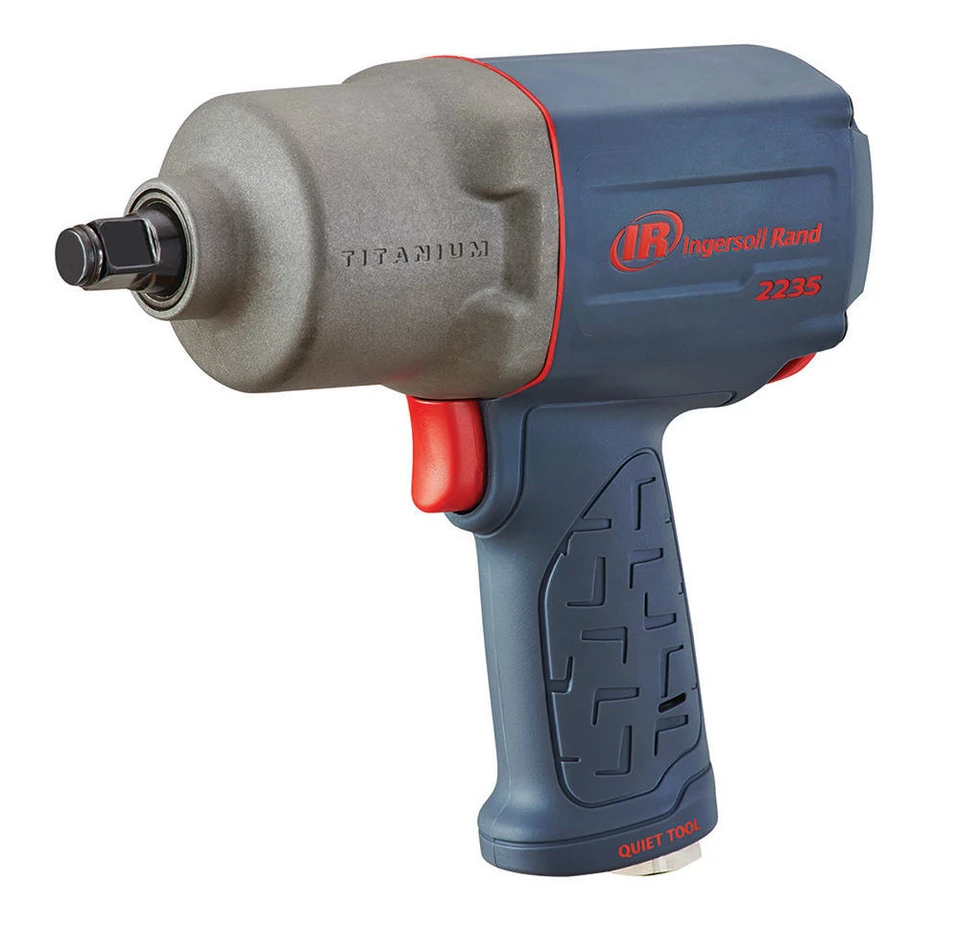

Ingersoll Rand Air Impact Wrench | 2235QTIMAX | 1300 (ft-lbs) Torque | 1/2" Square Drive

For automotive service technicians and maintenance professionals working with stubborn threaded fasteners, the Ingersoll Rand 2235QTIMAX Air Impact Wrench combines substantial breakaway power with quieter pneumatic operation. This 1/2" square drive impact wrench delivers 1,300 ft-lbs of nut-busting torque for loosening resistant bolts and 900 ft-lbs of maximum reverse torque for demanding fastener removal. Its ring retainer, also called a hog-ring, uses a retaining ring to hold compatible impact sockets on the square drive while allowing convenient socket changes. Ingersoll Rand's finely tuned twin-hammer impact mechanism delivers repeated rotational impacts, helping transfer power effectively during wheel service, machinery repair, and general mechanical maintenance.

Equipped with Ingersoll Rand's quiet tool technology, the 2235QTIMAX operates at a manufacturer-listed 88.7 dB(A) sound level, reducing noise compared with standard 2235 Series configurations. Its 8,500 RPM free speed and 1,220 blows per minute support efficient fastening and removal, while the titanium hammer case, steel wear plate, and composite housing protect the tool from impacts and workshop conditions. Measuring 7.6 inches long and weighing 4.7 lbs, this standard-anvil, pistol-grip impact wrench offers a compact alternative to extended-anvil models when additional reach is unnecessary. Its combination of power, reduced noise, and manageable weight makes it a practical choice for fleet maintenance, repair facilities, and industrial MRO operations.

Type: Pneumatic Impact Wrench | Brand: Ingersoll Rand | Model: 2235QTIMAX | Series: 2235 Series | Drive Size: 1/2" | Drive Type: Square Drive | Retainer Type: Ring (Hog-Ring) | Configuration: Pistol Grip, Standard Anvil | Nut-Busting Torque: 1,300 ft-lbs (1,760 Nm) | Maximum Reverse Torque: 900 ft-lbs (1,220 Nm) | Free Speed: 8,500 RPM | Blows Per Minute: 1,220 | Impact Mechanism: Twin Hammer | Sound Level: 88.7 dB(A) | Weight: 4.7 lbs (2.1 kg) | Overall Length: 7.6" (193 mm) | Air Inlet: 1/4" NPTF | Minimum Hose Size: 3/8" | Average Air Consumption: 6 CFM | Operating Pressure: 90 PSI

Features:

• Delivers 1,300 ft-lbs of nut-busting torque for removing stubborn fasteners during automotive and equipment maintenance.
• Ingersoll Rand quiet tool technology reduces operating noise while maintaining substantial impact performance.
• 1/2-inch square drive with ring retainer provides reliable socket retention and convenient socket changes.
• Finely tuned twin-hammer impact mechanism delivers consistent rotational impacts for effective bolt removal and fastening.
• Titanium hammer case and steel wear plate help protect internal components against wear and repeated impact.
• Composite housing provides protection against workshop impacts and exposure to common shop conditions.
• 8,500 RPM free speed and 1,220 blows per minute support efficient fastener run-down and removal.
• Compact 7.6-inch body and 4.7-pound weight provide manageable handling during repeated maintenance operations.

Applications:

• Automotive Repair and Tire Service: Removing wheel nuts, suspension fasteners, and threaded components during routine vehicle maintenance.
• Fleet Maintenance: Servicing commercial vehicles, removing mechanical fasteners, and completing scheduled equipment repairs.
• Industrial Maintenance and MRO: Loosening and installing bolts on machinery, mechanical equipment, and maintenance assemblies.
• Heavy Equipment Servicing: Removing accessible fasteners on construction and agricultural machinery within the tool's torque capacity.
• General Garage and Workshop Repairs: Handling stubborn nuts and bolts during mechanical repairs, vehicle restoration, and equipment maintenance.

FAQs:

• Q: What is the maximum torque of the 2235QTIMAX?
  A: It delivers 1,300 ft-lbs of nut-busting torque and 900 ft-lbs of maximum reverse torque.
• Q: What type of socket retainer does this model use?
  A: It uses a hog-ring retainer on its 1/2-inch square drive.
• Q: Is the 2235QTIMAX quieter than the standard model?
  A: Yes. Its quiet technology reduces the listed sound level to 88.7 dB(A).
• Q: How much compressed air does it require?
  A: It operates at 90 PSI with an average air consumption of 6 CFM.

Looking for more information about Ingersoll Rand Impact Wrench? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Impact Wrenches, please call (800) 608-5210 or email info@intlairtool.com
