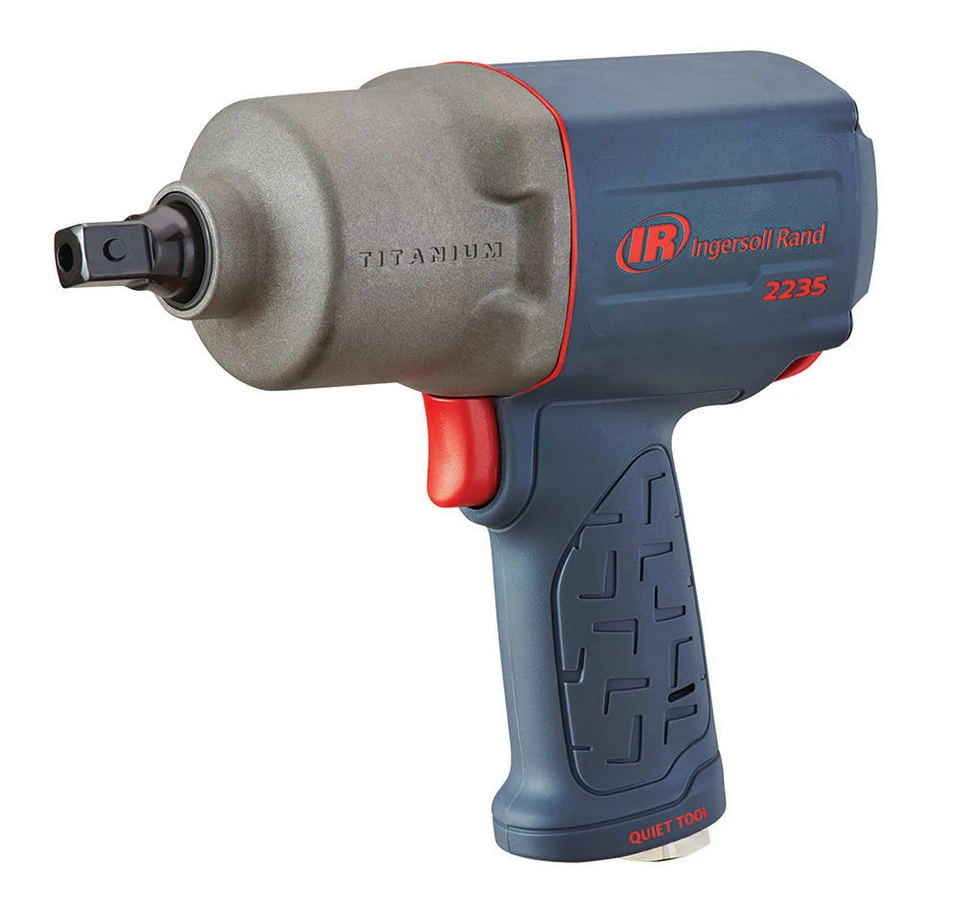

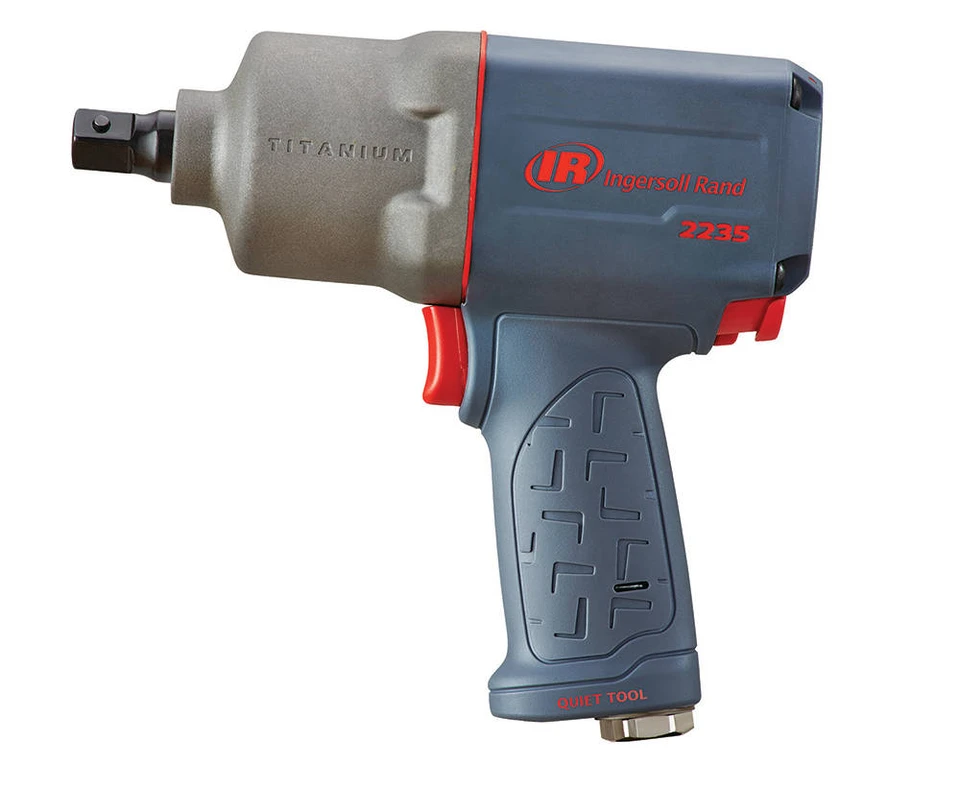

Ingersoll Rand Air Impact Wrench | 2235QPTIMAX | 1300 (ft-lbs) Torque | 1/2" Square Drive

When removing stubborn fasteners on vehicles, heavy equipment, or plant machinery, the Ingersoll Rand 2235QPTIMAX Air Impact Wrench combines powerful fastening performance with reduced operating noise. Part of the 2235 Series, this pneumatic impact wrench delivers 1,300 ft-lbs of nut-busting torque for loosening stubborn bolts and 900 ft-lbs of maximum reverse torque for demanding fastener removal. Its 1/2" square drive with pin retainer provides positive socket retention, helping keep compatible impact sockets securely attached during repetitive maintenance operations. The finely tuned twin-hammer impact mechanism uses two hammers to deliver repeated rotational impacts, transferring torque efficiently to difficult fasteners.

Operating at a free speed of 8,500 RPM with 1,220 blows per minute, the 2235QPTIMAX supports efficient fastening and removal work in automotive repair, equipment servicing, and industrial maintenance. Ingersoll Rand's quiet tool technology helps reduce noise without sacrificing the torque required for challenging applications. A titanium hammer case, steel wear plate, and composite housing provide protection against the wear and impacts encountered in workshop environments. Weighing approximately 4.7 lbs and measuring 7.6 inches long, this pistol-grip impact wrench combines substantial breakaway capability with a manageable size for repeated use in service bays and maintenance facilities.

Type: Pneumatic Impact Wrench | Brand: Ingersoll Rand | Model: 2235QPTIMAX | Series: 2235 Series | Drive Size: 1/2" | Drive Type: Square Drive, Pin Retainer | Configuration: Pistol Grip | Nut-Busting Torque: 1,300 ft-lbs (1,760 Nm) | Maximum Reverse Torque: 900 ft-lbs (1,220 Nm) | Free Speed: 8,500 RPM | Blows Per Minute: 1,220 | Impact Mechanism: Twin Hammer | Sound Level: 88.7 dB(A), Manufacturer Catalog Rating | Weight: 4.7 lbs (2.1 kg) | Length: 7.6" (193 mm) | Air Inlet: 1/4" NPTF | Minimum Hose Size: 3/8" | Average Air Consumption: 6 CFM | Operating Pressure: 90 PSI

Features:

• Delivers 1,300 ft-lbs of nut-busting torque to help loosen stubborn or tightly secured fasteners encountered during vehicle and equipment maintenance.
• Finely tuned twin-hammer impact mechanism provides powerful rotational impacts for effective fastening and bolt removal.
• Quiet tool technology reduces operating noise compared with standard 2235 Series models, supporting work in busy repair facilities.
• 1/2" square drive with pin retainer provides positive socket retention for compatible impact sockets during repetitive fastening operations.
• Titanium hammer case and steel wear plate help protect internal components against impact and wear in demanding working conditions.
• Composite housing provides additional protection while contributing to the tool's manageable overall weight.
• 8,500 RPM free speed and 1,220 blows per minute support productive fastening and removal across automotive and industrial service applications.
• Compact 7.6-inch body and 4.7-pound weight make the wrench practical for repeated use around machinery, vehicle assemblies, and workshop equipment.

Applications:

• Automotive Repair and Tire Service: Removing wheel fasteners, suspension bolts, and other threaded components during routine vehicle servicing and repair.
• Fleet and Commercial Vehicle Maintenance: Loosening and removing fasteners during scheduled vehicle inspections, mechanical repairs, and component replacement.
• Heavy Equipment Repair: Servicing accessible bolted connections on construction equipment, agricultural machinery, and other mechanical assemblies within the tool's torque capacity.
• Industrial Maintenance and MRO: Removing and installing threaded fasteners on production machinery, equipment housings, and mechanical assemblies during maintenance activities.
• General Workshop and Garage Use: Handling stubborn nuts and bolts during mechanical restoration, repair projects, and equipment servicing where a pneumatic impact wrench is appropriate.

FAQs:

• Q: What is the maximum torque of the 2235QPTIMAX?
  A: It delivers 1,300 ft-lbs of nut-busting torque and 900 ft-lbs of maximum reverse torque.
• Q: What size drive does this impact wrench have?
  A: It features a 1/2" square drive with a pin retainer for secure socket attachment.
• Q: How much air does the 2235QPTIMAX require?
  A: It uses an average of 6 CFM at a recommended operating pressure of 90 PSI.
• Q: Is the 2235QPTIMAX a quiet impact wrench?
  A: Yes. Its quiet technology helps reduce noise during operation.
