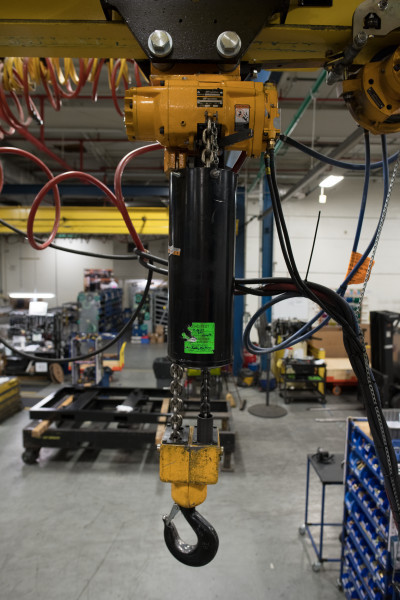

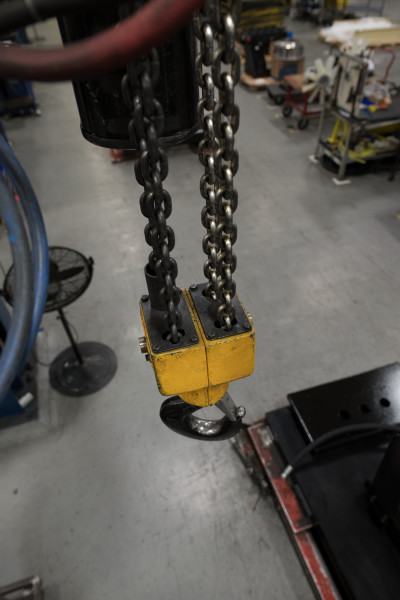

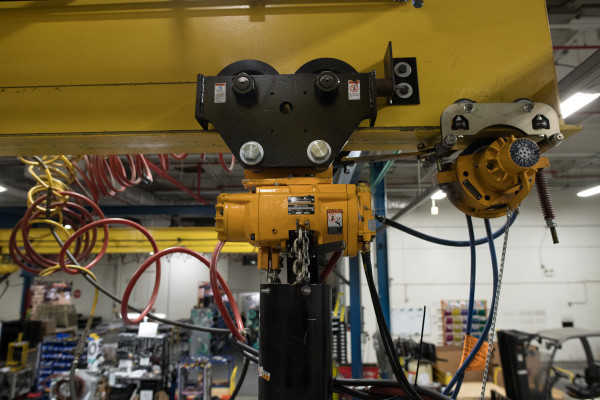

Ingersoll Rand HL2000K-2C10-C6U HLK Series Air Chain Hoist is a rugged pneumatic lifting solution engineered for demanding industrial applications requiring dependable performance, continuous-duty operation, and precise load control. Featuring a 2 Ton (4,400 lb) lifting capacity, 10 ft lift, and 6 ft pendant control drop, this air chain hoist is ideal for manufacturing facilities, steel mills, foundries, fabrication shops, maintenance operations, and overhead material handling systems. The pilot pendent control provides smooth, responsive lifting and lowering for accurate positioning of suspended loads.
Built on the proven HLK Series platform, this hoist is designed for 100% duty cycle service in severe industrial environments. It features a self-adjusting air-operated disc brake, enclosed planetary gearing, anti-friction bearings, and modular internal components that simplify maintenance while delivering long-term reliability. The hook-mounted configuration provides quick installation on overhead cranes, monorails, and fixed lifting points.
Type: Air Chain Hoist | Series: HLK Series | Model: HL2000K-2C10-C6U | Capacity: 2 Ton (4,400 lbs) | Lift: 10 ft | Pendant Drop: 6 ft | Control Type: Pendent Control | Top Suspension: Swivel Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Chain Size: 9.5 × 25.7 mm (3/8 in.) | Hook Mount Headroom: 23 in. | Trolley Mount Headroom: 21.6 in. | Lifting Speed (Rated Load): 13 ft/min (4.0 m/min) | Lifting Speed (No Load): 20 ft/min (6.1 m/min) | Lowering Speed (Rated Load): 18 ft/min (5.5 m/min) | Lowering Speed (No Load): 13 ft/min (4.0 m/min)
Features:
- 100% duty cycle supports continuous operation in demanding industrial environments.
- Pilot pendent control provides smooth, responsive, and precise load positioning.
- Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads.
- Planetary gearing ensures efficient power transmission and extended service life.
- Dual-fall alloy load chain configuration provides dependable lifting performance for 2-ton applications.
- Ball and roller bearings reduce friction and promote smooth operation.
- Modular motor, brake, and throttle assemblies simplify maintenance and minimize downtime.
- Hook-mounted design allows installation on overhead cranes, monorails, and fixed lifting structures.
Applications:
- Steel mills and foundries.
- Manufacturing and production facilities.
- Fabrication and welding shops.
- Industrial maintenance and equipment installation.
- Overhead crane and monorail material handling systems.
FAQs:
- Q: What type of control does this hoist use?
A: This model is equipped with a pilot pendent control for smooth and accurate lifting and lowering. - Q: How many chain falls does this hoist have?
A: This model uses 2 chain falls. - Q: What size load chain is specified?
A: The manufacturer specifies a 9.5 × 25.7 mm (3/8 in.) alloy load chain. - Q: Is this hoist designed for continuous-duty service?
A: Yes. The HLK Series is rated for a 100% duty cycle and HMI Duty Classification A5 for severe-duty industrial applications.
| SKU | Capacity | Hook Mount Headroom |
Trolley Mount Headroom |
Lifting Speed | Lowering Speed | Chain Size |
Chain Weight (per foot of lift) |
Net Weight w/10 ft of Lift |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb | metric tons |
# Falls | in | mm | in | mm | Rated Load | No Load | Rated Load | No Load | lb | kg | lb | kg | ||||||
| ft/min | m/min | ft/min | m/min | ft/min | m/min | ft/min | m/min | |||||||||||||
| ML250K | 550 | 0.25 | 1 | 18 | 457.2 | 18 | 457.2 | 101 | 30.8 | 171 | 52.1 | 117 | 35.7 | 99 | 30.2 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML250KS | 550 | 0.25 | 1 | 18 | 457.2 | 18 | 457.2 | 40 | 12.2 | 71 | 21.6 | 90 | 27.4 | 53 | 16.2 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML250KR | 550 | 0.25 | 1 | 18 | 457.2 | 18 | 457.2 | 26 | 7.9 | 42 | 12.8 | 38 | 11.6 | 30 | 9.1 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML500K | 1,100 | 0.50 | 1 | 18 | 457.2 | 18 | 457.2 | 55 | 16.8 | 106 | 32.3 | 97 | 29.6 | 59 | 18 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML500KS | 1,100 | 0.50 | 1 | 18 | 457.2 | 18 | 457.2 | 22 | 6.7 | 44 | 13.4 | 66 | 20.1 | 32 | 9.8 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML500KR | 1,100 | 0.50 | 2 | 18 | 457.2 | 18 | 457.2 | 13 | 4 | 21 | 6.4 | 20 | 6.1 | 15 | 4.6 | 6.4 x 19.5 | 1.1 | 0.5 | 61 | 27.7 |
| ML1000K | 2,200 | 1 | 2 | 18 | 457.2 | 18 | 457.2 | 28 | 8.5 | 53 | 16.2 | 49 | 14.9 | 30 | 9.1 | 6.4 x 19.5 | 1.1 | 0.5 | 61 | 27.7 |
| ML1000KS | 2,200 | 1 | 2 | 18 | 457.2 | 18 | 457.2 | 11 | 3.4 | 22 | 6.7 | 33 | 10.1 | 16 | 4.9 | 6.4 x 19.5 | 1.1 | 0.5 | 61 | 27.7 |
| HL1000K | 2,200 | 1 | 1 | 18.5 | 469.9 | 18.1 | 459.7 | 26 | 7.9 | 40 | 12.2 | 37 | 11.3 | 26 | 7.9 | 9.5 x 25.7 | 1.3 | 0.6 | 84 | 38.1 |
| HL1000KR | 2,200 | 1 | 1 | 18.5 | 469.9 | 18.1 | 459.7 | 26 | 7.9 | 40 | 12.2 | 37 | 11.3 | 26 | 7.9 | 9.5 x 25.7 | 1.3 | 0.6 | 84 | 38.1 |
| HL1500K | 3,300 | 1.50 | 1 | 18.8 | 477.5 | 18.9 | 480.1 | 16 | 4.9 | 28 | 8.5 | 26 | 7.9 | 16 | 4.9 | 9.5 x 25.7 | 1.3 | 0.6 | 84 | 38.1 |
| HL2000K | 4,400 | 2 | 2 | 23 | 584.2 | 21.6 | 548.6 | 13 | 4 | 20 | 6.1 | 18 | 5.5 | 13 | 4 | 9.5 x 25.7 | 2.6 | 1.2 | 125 | 56.7 |
| HL3000K | 6,600 | 3 | 2 | 25 | 635 | 22.6 | 574 | 8 | 2.4 | 14 | 4.3 | 13 | 4 | 8 | 2.4 | 9.5 x 25.7 | 2.6 | 1.2 | 125 | 56.7 |
| HL4500K | 9,900 | 4.50 | 3 | 30.9 | 784.9 | 28 | 711.2 | 4.6 | 1.4 | 10.5 | 3.2 | 10 | 3.1 | 6.6 | 2 | 9.5 x 25.7 | 3.9 | 1.8 | 193 | 87.5 |
| HL6000K | 13,200 | 6 | 4 | 36.2 | 919.5 | 32.2 | 817.9 | 3.5 | 1.1 | 8.4 | 2.6 | 7.6 | 2.3 | 4.8 | 1.5 | 9.5 x 25.7 | 5.2 | 2.4 | 248 | 112.5 |
Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.
Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
- Type
- Air Chain Hoist
- Series
- HLK Series
- Capacity (tons)
- 2
- Capacity (lbs)
- 4400
- Lift (ft.)
- 10
- Drop (ft.)
- 6
- Control
- Pendent Control
- Top Suspension
- Swivel Top Hook
- Bottom Suspension
- Steel Snap Hook
- Chain Falls
- 2
- Hook Mount Headroom (in.)
- 23
- Trolley Mount Headroom (in.)
- 21.6
- Lifting Speed Rated Load (ft/min)
- 13
- Lifting Speed Rated Load (m/min)
- 4
- Lifting Speed No Load (ft/min)
- 20
- Lifting Speed No Load (m/min)
- 6.1
- Lowering Speed Rated Load (ft/min)
- 18
- Lowering Speed Rated Load (m/min)
- 5.5
- Lowering Speed No Load (ft/min)
- 13
- Lowering Speed No Load (m/min)
- 4
- Chain Size
- 9.5 x 25.7
