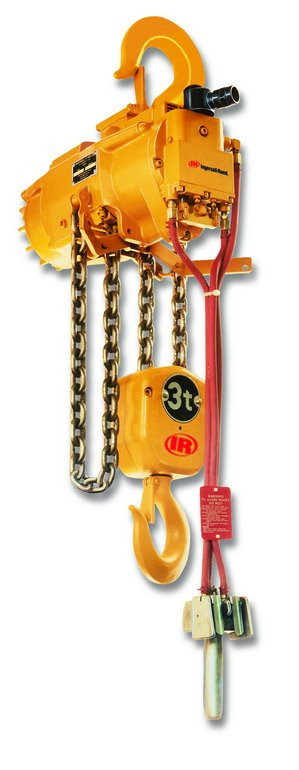

Ingersoll Rand HL6000K-2C49-C45 HLK Series Air Chain Hoist | 6 Ton Capacity | 49 ft Lift | 45 ft Drop | Steel Snap Hook | Pendent Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand HL6000K-2C49-C45 HLK Series Air Chain Hoist | 6 Ton Capacity | 49 ft Lift | 45 ft Drop | Steel Snap Hook | Pendent Control

Please Call (800) 608-5210 for Price and Availability or Email info@intlairtool.com

Availability:
Available To Order From Supplier
SKU:
HL6000K-2C49-C45
Weight:
310.0000 LBS
Condition:
New
Description

Built for demanding material handling in manufacturing plants, fabrication facilities, maintenance departments, and heavy industrial environments, the Ingersoll Rand HL6000K-2C49-C45 HLK Series Air Chain Hoist combines a 6 Ton (13,200 lb) lifting capacity with a 49 ft lift and 45 ft pendant control drop to provide dependable lifting performance for elevated work areas. Its pneumatic drive eliminates the need for electrical power, making it well suited for continuous-duty applications where accurate load handling and reliable operation are essential. The pendant control allows operators to safely control lifting and lowering functions from an optimal working position, while the steel snap hook bottom suspension offers secure load attachment.

The HLK Series features a modular design with interchangeable components that simplify maintenance and minimize downtime. A self-adjusting air-operated disc brake, precision planetary gearing, and bearing-supported rotating components work together to deliver smooth lifting performance under demanding operating conditions. Rated for a 100% duty cycle and HMI Duty Classification A5, this hoist is suitable for continuous industrial lifting where dependable performance and precise load positioning are critical.

Type: Air Chain Hoist | Series: HLK Series | Capacity: 6 Ton (13,200 lbs) | Lift: 49 ft | Control Drop: 45 ft | Control Type: Pendant Control | Top Suspension: Swivel Top Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 4 | Hook Mount Headroom: 36.2 in | Trolley Mount Headroom: 32.2 in | Lift Speed (Rated Load): 3.5 ft/min

Features:

  • 100% duty cycle with HMI Duty Classification A5 for continuous industrial lifting operations.
  • Pendant control provides responsive lifting and lowering for accurate load positioning.
  • Self-adjusting air-operated disc brake is spring applied and air released for dependable load holding performance.
  • Planetary gear system evenly distributes load across multiple gear teeth to promote efficient power transmission.
  • Ball and roller bearings support rotating components for smooth operation and reduced wear.
  • Modular construction with interchangeable components simplifies maintenance and servicing.
  • Inlet swivels, exhaust air chain lubrication, and adjustable controls improve serviceability.
  • Optional spark-resistant configurations and accessories are available for specialized applications.

Applications:

  • Handling heavy machinery and production equipment in manufacturing facilities.
  • Lifting dies, molds, and tooling during maintenance and repair operations.
  • Material handling in fabrication shops, steel processing plants, and foundries.
  • Supporting equipment installation, assembly, and plant maintenance projects.
  • Continuous-duty overhead lifting where precise load control is required.

FAQs:

  • Q: What is the advantage of pendant control?
    A: Pendant control enables the operator to safely control lifting and lowering functions from a convenient operating position while maintaining clear visibility of the load.
  • Q: Is this hoist suitable for continuous production use?
    A: Yes. The HLK Series is rated for a 100% duty cycle and HMI Duty Classification A5, making it suitable for demanding industrial production environments.
  • Q: What does the 45 ft control drop indicate?
    A: The control drop is the length of the pendant control, allowing the operator to comfortably operate the hoist from ground level or elevated work areas.
  • Q: Can this air chain hoist be installed on a trolley?
    A: Yes. The HLK Series is available for hook or trolley mounting configurations when matched with compatible supporting equipment.



industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
HLK Series
Capacity (tons):
6
Capacity (lbs):
13200
Lift (ft.):
49
Drop (ft.):
45
Control:
Pendent Control
Top Suspension:
Swivel Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
4
Hook Mount Headroom (in.):
36.2
Trolley Mount Headroom (in.):
32.2
Lifting Speed Rated Load (ft/min):
3.5
Lifting Speed Rated Load (m/min):
1.1
Lifting Speed No Load (ft/min):
8.4
Lifting Speed No Load (m/min):
2.6
Lowering Speed Rated Load (ft/min):
7.6
Lowering Speed Rated Load (m/min):
2.3
Lowering Speed No Load (ft/min):
4.8
Lowering Speed No Load (m/min):
1.5
Chain Size:
9.5 x 25.7
Warranty Information
One year warranty against manufacturers defects.
