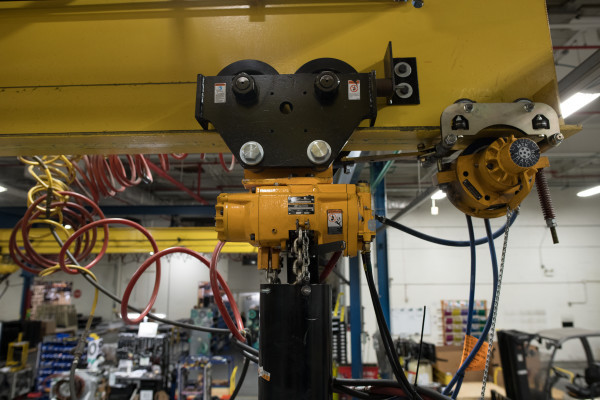

Ingersoll Rand HL4500K-4HA10-C6S HLK Series Air Chain Hoist | 4 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | 3 Motor Pendent

Built for continuous lifting in manufacturing plants, maintenance facilities, fabrication shops, and other demanding industrial environments, the Ingersoll Rand HL4500K-4HA10-C6S HLK Series Air Chain Hoist delivers a 10,000 lb (4.5 metric ton) lifting capacity with a 10 ft lift and 6 ft control drop for precise overhead material handling. Its pneumatic drive provides reliable operation without relying on electrical power, making it an excellent choice for facilities utilizing compressed air systems while supporting continuous-duty lifting applications.

The HLK Series combines a rugged planetary gear drive with a self-adjusting, spring-applied, air-released disc brake that securely holds suspended loads whenever the air supply is interrupted. Equipped with a steel snap hook and a 3-motor pendant control, this hoist provides smooth, controlled lifting and lowering for heavy machinery, production equipment, tooling, and fabricated assemblies. Its modular design with interchangeable components simplifies maintenance while helping minimize downtime in demanding industrial operations.

Type: Air Chain Hoist | Series: HLK Series | Model: HL4500K-4HA10-C6S | Capacity: 10,000 lb (4.5 Metric Tons) | Lift: 10 ft | Control Drop: 6 ft | Control Type: 3 Motor Pendant | Bottom Hook: Steel Snap Hook | Chain Falls: 3 | Rated Lift Speed: 4.6 ft/min (1.4 m/min) | Rated Lowering Speed: 10 ft/min (3.1 m/min) | Hook Mount Headroom: 30.9 in (784.4 mm) | Trolley Mount Headroom: 28 in (711.2 mm) | Shipping Weight: 193 lb (87.5 kg)

Features:

• 10,000 lb (4.5 metric ton) lifting capacity for moving heavy industrial equipment, dies, molds, and fabricated components.
• 100% duty cycle supports continuous lifting operations in demanding production environments.
• Planetary gear transmission provides smooth, efficient power transfer and dependable lifting performance.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads during operation and in the event of air loss.
• 3-motor pendant control provides responsive and precise load positioning.
• Steel snap hook offers a durable and secure attachment point for lifting applications.
• Modular construction with interchangeable components simplifies maintenance and reduces service time.
• Built to HMI Duty Classification A5 (Severe Duty) and FEM 9.511 Duty Classification 2m.

Applications:

• Overhead lifting of machinery, tooling, and production equipment in manufacturing facilities.
• Material handling for fabrication, welding, and metalworking operations.
• Maintenance and repair tasks involving heavy industrial components.
• Assembly lines requiring controlled lifting and precise load positioning.
• Industrial warehouses and processing facilities utilizing pneumatic lifting equipment.

FAQs:

• Q: What is the actual lifting capacity of the HL4500K?
  A: The manufacturer rates the HL4500K at 10,000 lb (4.5 metric tons). Although some listings describe it as a "4 Ton" hoist, the official catalog capacity is 4.5 metric tons.
• Q: What does the 3-motor pendant control provide?
  A: The 3-motor pendant allows the operator to control lifting and lowering functions from a safe operating position while maintaining accurate load positioning.
• Q: How fast does this hoist lift a rated load?
  A: The rated lifting speed is 4.6 ft/min (1.4 m/min), while the rated lowering speed is 10 ft/min (3.1 m/min).
• Q: Is this hoist intended for continuous industrial service?
  A: Yes. The HLK Series is designed for 100% duty cycle operation and is suitable for continuous industrial lifting applications.

Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
