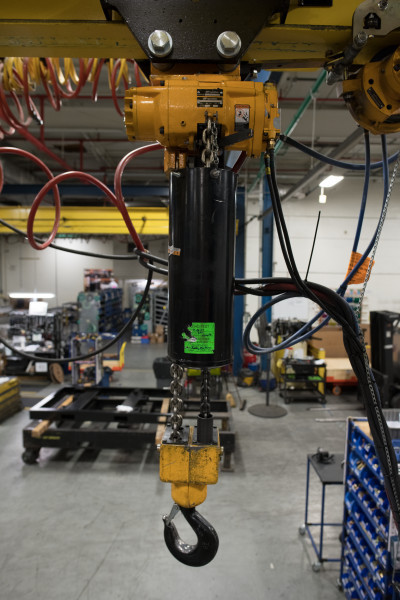

Ingersoll Rand HL4500K-2A10-C6S HLK Series Air Chain Hoist | 4 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

Built for continuous lifting operations in manufacturing plants, maintenance departments, fabrication shops, and other demanding industrial environments, the Ingersoll Rand HL4500K-2A10-C6S HLK Series Air Chain Hoist delivers a 10,000 lb (4.5 metric ton) lifting capacity with a 10 ft lift and 6 ft pendant drop for precise load positioning. Its pneumatic drive provides dependable operation without relying on electrical power, making it well suited for facilities where compressed air is readily available and continuous-duty lifting is required.

The HLK Series is built for severe-duty service and features a planetary gear drive for smooth lifting performance along with a self-adjusting, air-operated disc brake that securely holds suspended loads whenever the air supply is interrupted. The steel snap hook offers a secure attachment point, while the pendant control allows accurate raising and lowering of loads. Modular construction with interchangeable components helps simplify maintenance and minimize downtime in demanding production environments.

Type: Air Chain Hoist | Series: HLK Series | Model: HL4500K-2A10-C6S | Capacity: 10,000 lb (4.5 Metric Tons) | Lift: 10 ft | Pendant Drop: 6 ft | Chain Falls: 3 | Rated Lift Speed: 4.6 ft/min (1.4 m/min) | Rated Lowering Speed: 10 ft/min (3.1 m/min) | Hook Mount Headroom: 30.9 in (784.4 mm) | Trolley Mount Headroom: 28 in (711.2 mm) | Shipping Weight: 193 lb (87.5 kg)

Features:

• 10,000 lb (4.5 metric ton) rated lifting capacity for handling heavy machinery, dies, fixtures, and fabricated assemblies.
• 100% duty cycle supports continuous production and repetitive lifting operations.
• Planetary gear drive provides smooth, efficient lifting performance while reducing internal component wear.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads when air pressure is removed.
• Pendant control allows precise load positioning during lifting and lowering operations.
• Steel snap hook provides a secure connection for compatible lifting hardware.
• Modular construction with interchangeable components simplifies servicing and reduces maintenance downtime.
• Designed for severe-duty industrial lifting applications.

Applications:

• Moving heavy equipment and machinery during plant maintenance operations.
• Lifting and positioning fabricated steel components in metalworking facilities.
• Handling tooling, molds, and dies in manufacturing environments.
• Supporting assembly operations requiring controlled overhead lifting.
• General industrial material handling where compressed air is available.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: The HL4500K is rated to lift 10,000 lb (4.5 metric tons), making it suitable for demanding industrial lifting applications.
• Q: How many chain falls does this hoist use?
  A: This model uses a 3-fall load chain configuration to achieve its 10,000 lb lifting capacity.
• Q: What is the lifting speed?
  A: The rated lifting speed is 4.6 ft/min (1.4 m/min), while the rated lowering speed is 10 ft/min (3.1 m/min).
• Q: What does the 6 ft pendant drop mean?
  A: The pendant control hangs approximately 6 feet below the hoist, allowing the operator to safely control lifting and lowering from a comfortable working position.

Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
