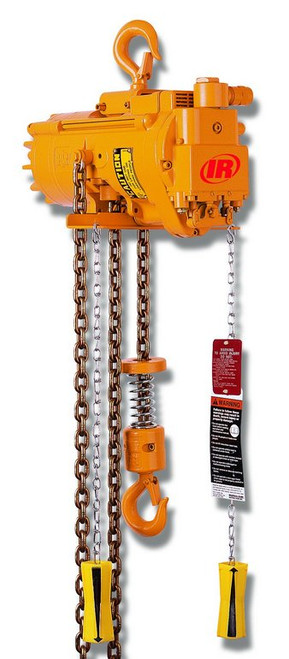

Ingersoll Rand HL3000K-1C10-C6 HLK Series Air Chain Hoist | 3 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pull Chain Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand HL3000K-1C10-C6 HLK Series Air Chain Hoist | 3 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pull Chain Control

Please Call (800) 608-5210 for Price and Availability or Email info@intlairtool.com

Availability:
Available To Order From Supplier
SKU:
HL3000K-1C10-C6
Weight:
156.2500 LBS
Condition:
New
Description


Built for overhead lifting in manufacturing facilities, maintenance shops, fabrication plants, and industrial assembly operations, the Ingersoll Rand HL3000K-1C10-C6 HLK Series Air Chain Hoist combines a 3 Ton (6,600 lb) lifting capacity with a 10 ft lift and 6 ft pull chain control drop to provide dependable material handling for medium-capacity lifting tasks. Its pneumatic drive eliminates the need for electrical power, making it well-suited for continuous-duty applications where precise load positioning and reliable performance are essential. The pull-chain control allows operators to accurately regulate lifting and lowering speeds, while the steel snap-hook bottom suspension provides secure load attachment.

The HLK Series is engineered with a modular design featuring interchangeable components that simplify servicing and help minimize downtime. A self-adjusting air-operated disc brake, precision planetary gearing, and bearing-supported rotating assemblies work together to deliver smooth lifting performance and dependable load control. Rated for a 100% duty cycle and HMI Duty Classification A5, this air chain hoist is designed for continuous industrial lifting where productivity and safe operation are priorities.

Type: Air Chain Hoist | Series: HLK Series | Capacity: 3 Ton (6,600 lbs) | Lift: 10 ft | Control Drop: 6 ft | Control Type: Pull Chain Control | Top Suspension: Swivel Top Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Hook Mount Headroom: 29.1 in | Trolley Mount Headroom: 25.1 in | Lift Speed (Rated Load): 7.0 ft/min

Features:

  • 100% duty cycle with HMI Duty Classification A5 for continuous industrial lifting applications.
  • Pull chain control provides smooth, responsive lifting and lowering for accurate load positioning.
  • Self-adjusting air-operated disc brake is spring applied and air released to securely hold suspended loads.
  • Planetary gear system distributes loads across multiple gear teeth for efficient power transmission and dependable operation.
  • Ball and roller bearings support rotating components for smooth lifting performance and reduced wear.
  • Modular construction with interchangeable components simplifies maintenance and reduces service downtime.
  • Inlet swivels, exhaust air chain lubrication, and adjustable controls improve long-term serviceability.
  • Compatible with optional accessories and specialized configurations to meet a variety of industrial lifting requirements.

Applications:

  • Lifting machinery, equipment, and fabricated components during production and maintenance operations.
  • Handling dies, molds, and tooling in manufacturing and metalworking facilities.
  • Supporting equipment installation, repair, and assembly projects.
  • Material handling in warehouses, fabrication shops, and industrial maintenance departments.
  • Continuous overhead lifting where precise manual load control is required.

FAQs:

  • Q: What are the benefits of pull chain control?
    A: Pull chain control allows operators to manually regulate lifting and lowering speeds, making it easier to accurately position suspended loads.
  • Q: Is this hoist suitable for continuous-duty operation?
    A: Yes. The HLK Series is rated for a 100% duty cycle and HMI Duty Classification A5, making it suitable for demanding industrial production environments.
  • Q: What does the 6 ft control drop represent?
    A: The control drop is the length of the pull chain, allowing the operator to comfortably control the hoist from beneath the mounted unit.
  • Q: Can this hoist be installed on a trolley?
    A: Yes. HLK Series hoists are available for both hook-mounted and trolley-mounted installations when used with compatible beam trolley systems.



industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
HLK Series
Capacity (tons):
3
Capacity (lbs):
6600
Lift (ft.):
10
Drop (ft.):
6
Control:
Pull Chain Control
Top Suspension:
Swivel Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
2
Hook Mount Headroom (in.):
25
Trolley Mount Headroom (in.):
22.6
Lifting Speed Rated Load (ft/min):
8
Lifting Speed Rated Load (m/min):
2.4
Lifting Speed No Load (ft/min):
14
Lifting Speed No Load (m/min):
4.3
Lowering Speed Rated Load (ft/min):
13
Lowering Speed Rated Load (m/min):
4
Lowering Speed No Load (ft/min):
8
Lowering Speed No Load (m/min):
2.4
Chain Size:
9.5 x 25.7
Warranty Information
One year warranty against manufacturers defects.
