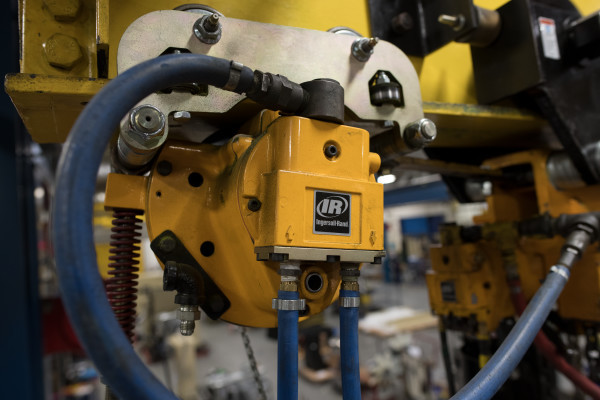

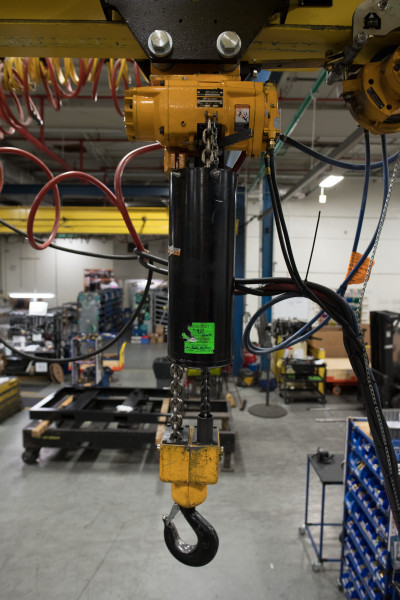

Ingersoll Rand HL2000K-3HA18-C14S HLK Series Air Chain Hoist | 2 Ton Capacity | 18 ft Lift | 14 ft Drop | Steel Snap Hook | 2 Motor Pendent

Built for continuous overhead lifting in manufacturing plants, maintenance facilities, fabrication shops, and industrial production environments, the Ingersoll Rand HL2000K-3HA18-C14S air chain hoist delivers a 2 ton (4,400 lb) lifting capacity with an 18 ft lift and 14 ft control drop. As part of the HLK Series, this pneumatic hoist operates using compressed air to provide dependable lifting performance for demanding material handling applications. Equipped with a 2 Motor Pendent control (a dual-function pendent that provides independent control for hoist and trolley movement), it enables precise load lifting and positioning for production, maintenance, and assembly operations.

The HLK Series features a larger chain wheel designed for 3/8-inch load chain along with a lower gear ratio for efficient lifting of higher-capacity loads. A self-adjusting, air-operated disc brake automatically engages whenever the air supply is removed, helping maintain secure load holding throughout lifting operations. Its planetary gear system distributes lifting forces across multiple gear teeth for smooth performance and reduced component wear, while the modular construction with interchangeable components simplifies maintenance and minimizes downtime.

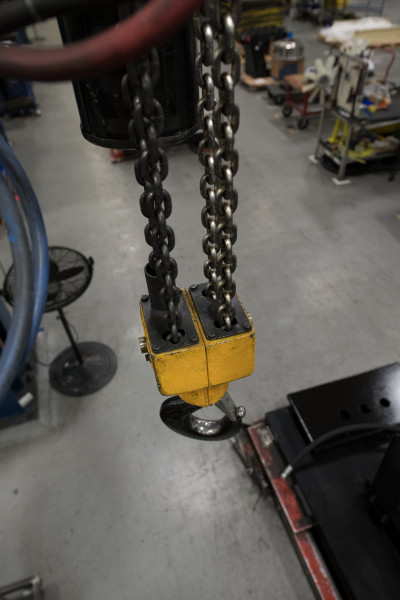

Type: Air Chain Hoist | Series: HLK Series | Capacity: 2 Ton (4,400 lbs.) | Lift: 18 ft | Control Drop: 14 ft | Control Type: 2 Motor Pendent | Top Suspension: Swivel Top Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Hook Mount Headroom: 23 in. | Trolley Mount Headroom: 21.6 in. | Lifting Speed (Rated Load): 13 ft/min | Lowering Speed (Rated Load): 18 ft/min | Chain Size: 9.5 × 25.7

Features:

• 100% duty cycle with HMI Duty Classification A5 (FEM 2m) for continuous industrial lifting applications.
• 2 Motor Pendent provides independent control for hoist and trolley functions to improve load positioning accuracy.
• Self-adjusting, air-operated disc brake is spring applied and air released for dependable load control.
• Planetary gearing distributes lifting loads across multiple gear teeth for smooth operation and reduced component wear.
• Ball and roller bearings support rotating components for reliable lifting performance.
• Modular construction with interchangeable components simplifies servicing and routine maintenance.
• Swivel air inlet and exhaust chain lubrication contribute to dependable day-to-day operation.
• Compatible with optional accessories, including spark-resistant configurations for specialized operating environments.

Applications:

• Overhead material handling in manufacturing and production facilities.
• Assembly operations requiring coordinated lifting and trolley travel.
• Industrial maintenance departments moving machinery, tooling, and replacement components.
• Steel fabrication shops handling fabricated assemblies and production equipment.
• Production environments where precise load positioning improves workflow efficiency.

FAQs:

• Q: What is a 2 Motor Pendent?
  A: A 2 Motor Pendent provides separate controls for the hoist and motorized trolley, allowing the operator to lift, lower, and position loads with greater accuracy.
• Q: What is the lifting capacity of this hoist?
  A: The HL2000K-3HA18-C14S is rated to lift up to 2 tons (4,400 lbs.) when operated within the manufacturer's specified limits.
• Q: Is this hoist suitable for continuous-duty industrial applications?
  A: Yes. The HLK Series is rated for a 100% duty cycle with HMI Duty Classification A5, making it suitable for repetitive lifting operations in demanding industrial environments.
• Q: Does this hoist require electrical power?
  A: No. This model is powered by compressed air and is intended for use with an appropriate industrial compressed air system.
