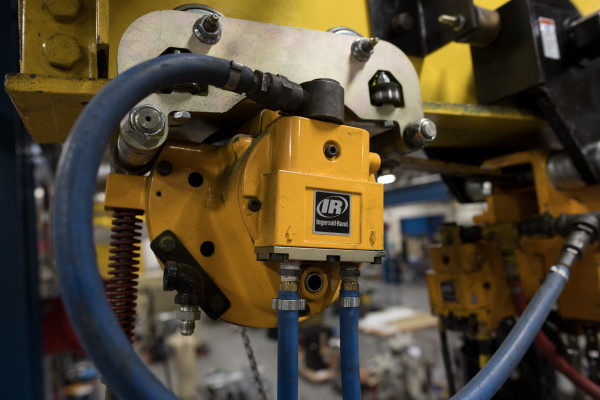

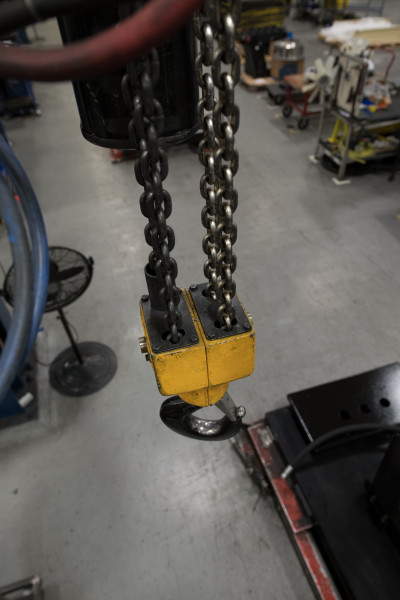

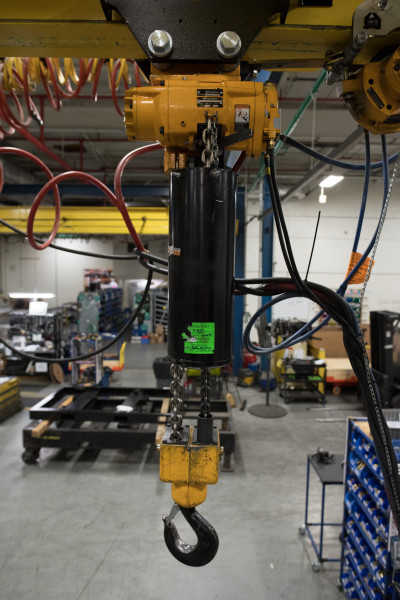

Ingersoll Rand HL2000K-2C20-C16U HLK Series Air Chain Hoist | 2 Ton Capacity | 20 ft Lift | 16 Drop | Steel Snap Hook | Pendent Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand HL2000K-2C20-C16U HLK Series Air Chain Hoist | 2 Ton Capacity | 20 ft Lift | 16 ft Drop | Steel Snap Hook | Pendent Control

List Price: $13,200.00
$11,643.28
(You save $1,556.72 )
Availability:
Available To Order From Supplier
SKU:
HL2000K-2C20-C16U
Shipping:
Calculated at Checkout
Weight:
156.2500 LBS
Condition:
New
Adding to cart… The item has been added
Description

Built for continuous lifting in manufacturing, steel processing, foundries, and other demanding production environments, the Ingersoll Rand HL2000K-2C20-C16U air chain hoist delivers a 2 ton (4,400 lb) lifting capacity with a 20 ft lift and 16 ft pendent control drop, giving operators the reach and control needed for efficient material handling. As part of the HLK Series, this pneumatic hoist uses compressed air instead of electricity, making it well suited for facilities where high-duty-cycle operation, precise load positioning, and reliable performance are essential. The pendent control (a hand-operated air control that allows accurate lifting and lowering from a safe working position) provides smooth load spotting for production and maintenance tasks.

The HLK Series incorporates a larger chain wheel to accommodate 3/8-inch load chain and a lower gear ratio for increased lifting capacity while maintaining dependable operation under severe-duty service. A self-adjusting, air-operated disc brake automatically applies when air pressure is removed, helping maintain secure load control, while the planetary gearing system distributes load across multiple gear teeth for smooth power transmission and extended component life. Designed around a common platform with interchangeable parts, the HLK Series also simplifies maintenance and reduces downtime in busy industrial facilities.

Type: Air Chain Hoist | Series: HLK Series | Capacity: 2 Ton (4,400 lbs.) | Lift: 20 ft | Pendent Drop: 16 ft | Control: Pendent Control | Top Suspension: Swivel Top Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Hook Mount Headroom: 23 in. | Trolley Mount Headroom: 21.6 in. | Lifting Speed (Rated Load): 13 ft/min | Lowering Speed (Rated Load): 18 ft/min | Chain Size: 9.5 × 25.7

Features:

  • 100% duty cycle with HMI Duty Classification A5 (FEM 2m) for continuous industrial lifting operations.
  • Air-operated, self-adjusting disc brake is spring applied and air released, with wear testing exceeding one million cycles before replacement.
  • Planetary gearing system distributes load across multiple gear teeth for dependable power transmission and reduced component wear.
  • Ball and roller bearings support all rotating components for smooth operation.
  • Pendent control provides accurate load spotting for production handling and positioning.
  • Common-platform design with interchangeable parts helps simplify maintenance and reduce downtime.
  • Swivel air inlet, exhaust chain lubrication, and adjustable controls support reliable day-to-day operation.
  • Compatible with numerous optional accessories, including spark-resistant configurations for hazardous environments.

Applications:

  • Production lifting and repetitive material handling in manufacturing facilities.
  • Steel mills, foundries, and metal processing operations requiring continuous-duty hoists.
  • Maintenance departments performing equipment installation, repair, and component replacement.
  • Assembly lines where accurate load positioning improves productivity and workflow.
  • Industrial fabrication shops handling heavy machinery, tooling, and fabricated assemblies.

FAQs:

  • Q: What type of power source does this hoist require?
    A: The HL2000K-2C20-C16U is an air-powered chain hoist that operates using a compressed air supply rather than electricity.
  • Q: What does the 16 ft pendent drop refer to?
    A: It is the length of the pendent control, allowing the operator to control lifting and lowering from a comfortable working position below the hoist.
  • Q: Can this hoist be used in continuous production service?
    A: Yes. The HLK Series is rated for a 100% duty cycle with HMI Duty Classification A5, making it suitable for severe-duty production environments.
  • Q: Is this hoist suitable for hazardous locations?
    A: Standard models are intended for general industrial use. Spark-resistant HLKR models are available when applications require additional protection in hazardous environments.



industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
HLK Series
Capacity (tons):
2
Capacity (lbs):
4400
Lift (ft.):
20
Drop (ft.):
16
Control:
Pendent Control
Top Suspension:
Swivel Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
2
Hook Mount Headroom (in.):
23
Trolley Mount Headroom (in.):
21.6
Lifting Speed Rated Load (ft/min):
13
Lifting Speed Rated Load (m/min):
4
Lifting Speed No Load (ft/min):
20
Lifting Speed No Load (m/min):
6.1
Lowering Speed Rated Load (ft/min):
18
Lowering Speed Rated Load (m/min):
5.5
Lowering Speed No Load (ft/min):
13
Lowering Speed No Load (m/min):
4
Chain Size:
9.5 x 25.7
Warranty Information
One year warranty against manufacturers defects.
