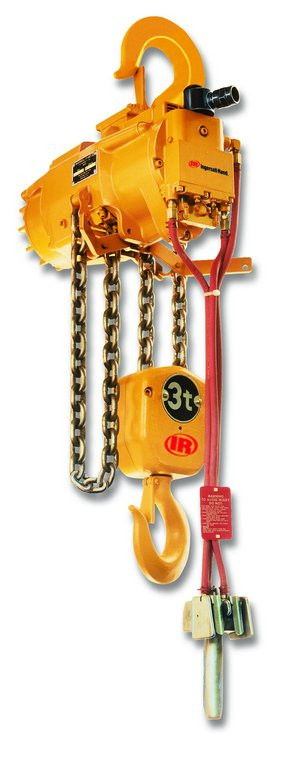

Ingersoll Rand HL2000K-2C12-C9MU HLK Series Air Chain Hoist | 2 Ton Capacity | 12 ft Lift | 9 ft Drop | Steel Snap Hook | Pendent Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand HL2000K-2C12-C9MU HLK Series Air Chain Hoist | 2 Ton Capacity | 12 ft Lift | 9 ft Drop | Steel Snap Hook | Pendent Control

List Price: $12,950.00
$11,422.76
(You save $1,527.24 )
Availability:
Available To Order From Supplier
SKU:
HL2000K-2C12-C9MU
Shipping:
Calculated at Checkout
Weight:
156.2500 LBS
Condition:
New
Adding to cart… The item has been added
Description

Built for continuous overhead lifting in manufacturing plants, maintenance facilities, fabrication shops, and industrial production environments, the Ingersoll Rand HL2000K-2C12-C9MU air chain hoist delivers a 2 ton (4,400 lb) lifting capacity with a 12 ft lift and 9 ft pendent control drop. As part of the HLK Series, this pneumatic hoist operates using compressed air to provide dependable lifting performance for demanding material handling applications. The pendent control (a hand-operated air control that enables smooth lifting and lowering) allows operators to accurately position loads during assembly, maintenance, machine servicing, and production operations.

The HLK Series features a larger chain wheel designed for 3/8-inch load chain together with a lower gear ratio for efficient lifting of higher-capacity loads. A self-adjusting, air-operated disc brake automatically engages whenever the air supply is removed, helping maintain secure load holding throughout lifting operations. Its planetary gear system distributes lifting forces across multiple gear teeth for smooth operation and reduced component wear, while the modular construction with interchangeable components simplifies maintenance and minimizes downtime.

Type: Air Chain Hoist | Series: HLK Series | Capacity: 2 Ton (4,400 lbs.) | Lift: 12 ft | Pendent Drop: 9 ft | Control Type: Pendent Control | Top Suspension: Swivel Top Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Hook Mount Headroom: 23 in. | Trolley Mount Headroom: 21.6 in. | Lifting Speed (Rated Load): 13 ft/min | Lowering Speed (Rated Load): 18 ft/min | Chain Size: 9.5 × 25.7

Features:

  • 100% duty cycle with HMI Duty Classification A5 (FEM 2m) for continuous industrial lifting applications.
  • Pendent control provides smooth and precise lifting and lowering for accurate load positioning.
  • Self-adjusting, air-operated disc brake is spring applied and air released for dependable load control.
  • Planetary gearing distributes lifting loads across multiple gear teeth for smooth operation and reduced component wear.
  • Ball and roller bearings support rotating components for reliable lifting performance.
  • Modular construction with interchangeable components simplifies servicing and routine maintenance.
  • Swivel air inlet and exhaust chain lubrication contribute to dependable day-to-day operation.
  • Compatible with optional accessories, including spark-resistant configurations for specialized operating environments.

Applications:

  • Overhead material handling in manufacturing and production facilities.
  • Maintenance departments lifting machinery, tooling, and replacement components.
  • Steel fabrication shops handling fabricated assemblies and production equipment.
  • Assembly operations requiring precise load positioning using pendent controls.
  • General industrial environments performing repetitive lifting and material handling tasks.

FAQs:

  • Q: What advantage does the 9 ft pendent drop provide?
    A: The 9 ft pendent drop allows operators to comfortably control lifting and lowering while maintaining a safe working distance from the suspended load.
  • Q: What is the lifting capacity of this hoist?
    A: The HL2000K-2C12-C9MU is rated to safely lift loads up to 2 tons (4,400 lbs.) when operated within the manufacturer's specified operating limits.
  • Q: Is this hoist suitable for continuous-duty industrial applications?
    A: Yes. The HLK Series is rated for a 100% duty cycle with HMI Duty Classification A5, making it suitable for repetitive lifting operations in demanding industrial environments.
  • Q: Does this hoist require electrical power?
    A: No. This model operates using compressed air and is intended for facilities equipped with an appropriate industrial air supply.



industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
HLK Series
Capacity (tons):
2
Capacity (lbs):
4400
Lift (ft.):
12
Drop (ft.):
9
Control:
Pendent Control
Top Suspension:
Swivel Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
2
Hook Mount Headroom (in.):
23
Trolley Mount Headroom (in.):
21.6
Lifting Speed Rated Load (ft/min):
13
Lifting Speed Rated Load (m/min):
4
Lifting Speed No Load (ft/min):
20
Lifting Speed No Load (m/min):
6.1
Lowering Speed Rated Load (ft/min):
18
Lowering Speed Rated Load (m/min):
5.5
Lowering Speed No Load (ft/min):
13
Lowering Speed No Load (m/min):
4
Chain Size:
9.5 x 25.7
Warranty Information
One year warranty against manufacturers defects.
