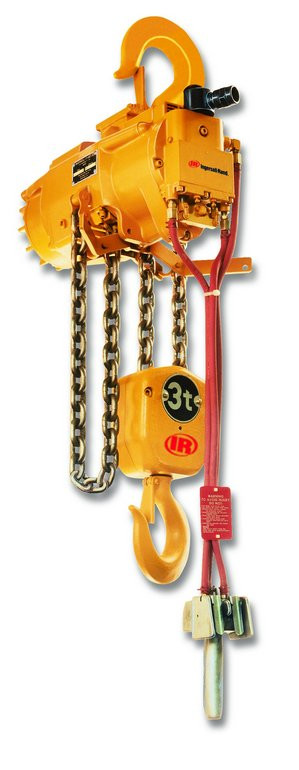

Ingersoll Rand HL1500K-2C10-C6U HLK Series Air Chain Hoist is a pneumatic lifting solution designed for demanding industrial material handling applications where reliable operation and precise load positioning are essential. Featuring a 1-1/2 Ton (3,300 lb) lifting capacity, 10 ft lift, and 6 ft pendant control drop, this hoist is well suited for manufacturing, maintenance, assembly, fabrication, and general overhead lifting. The pilot pendent control provides smooth, responsive operation for accurate raising and lowering of loads.
As part of the Ingersoll Rand HLK Series, this air chain hoist is engineered for continuous-duty industrial service with a 100% duty cycle. It features a self-adjusting air-operated disc brake, enclosed planetary gearing, anti-friction bearings, and modular internal components that simplify maintenance while delivering dependable long-term performance. The hook-mounted configuration allows quick installation on fixed lifting points, overhead cranes, and monorail systems.
Type: Air Chain Hoist | Series: HLK Series | Model: HL1500K-2C10-C6U | Capacity: 1-1/2 Ton (3,300 lbs) | Lift: 10 ft | Pendant Drop: 6 ft | Control Type: Pendent Control | Top Suspension: Swivel Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 1 | Hook Mount Headroom: 18.8 in. | Trolley Mount Headroom: 18.9 in. | Lifting Speed (Rated Load): 16 ft/min (4.9 m/min) | Lifting Speed (No Load): 28 ft/min (8.5 m/min) | Lowering Speed (Rated Load): 26 ft/min (7.9 m/min) | Lowering Speed (No Load): 16 ft/min (4.9 m/min) | Chain Size: 9.5 × 25.7 mm (3/8 in.)
Features:
- 100% duty cycle supports continuous industrial lifting operations.
- Pilot pendent control provides smooth, accurate load positioning.
- Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads.
- Planetary gearing provides efficient power transmission and long service life.
- Single-fall alloy load chain delivers dependable lifting performance.
- Anti-friction ball and roller bearings reduce wear while promoting smooth operation.
- Modular motor, brake, and throttle assemblies simplify servicing and maintenance.
- Hook-mounted design allows installation on cranes, monorails, and fixed overhead lifting points.
Applications:
- Manufacturing and production facilities.
- Industrial maintenance operations.
- Steel fabrication shops.
- Machine installation and equipment positioning.
- Overhead material handling systems.
FAQs:
- Q: What type of control does this hoist use?
A: This model features a pilot pendent control for smooth and precise lifting and lowering. - Q: How many chain falls does this hoist have?
A: This model uses one chain fall. - Q: What load chain size is used?
A: The manufacturer specifies an 11.3 × 31 mm (7/16 in.) alloy load chain. - Q: Can this hoist be used continuously?
A: Yes. The HLK Series is designed for 100% duty cycle operation in demanding industrial environments.
| SKU | Capacity | Hook Mount Headroom |
Trolley Mount Headroom |
Lifting Speed | Lowering Speed | Chain Size |
Chain Weight (per foot of lift) |
Net Weight w/10 ft of Lift |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb | metric tons |
# Falls | in | mm | in | mm | Rated Load | No Load | Rated Load | No Load | lb | kg | lb | kg | ||||||
| ft/min | m/min | ft/min | m/min | ft/min | m/min | ft/min | m/min | |||||||||||||
| ML250K | 550 | 0.25 | 1 | 18 | 457.2 | 18 | 457.2 | 101 | 30.8 | 171 | 52.1 | 117 | 35.7 | 99 | 30.2 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML250KS | 550 | 0.25 | 1 | 18 | 457.2 | 18 | 457.2 | 40 | 12.2 | 71 | 21.6 | 90 | 27.4 | 53 | 16.2 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML250KR | 550 | 0.25 | 1 | 18 | 457.2 | 18 | 457.2 | 26 | 7.9 | 42 | 12.8 | 38 | 11.6 | 30 | 9.1 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML500K | 1,100 | 0.50 | 1 | 18 | 457.2 | 18 | 457.2 | 55 | 16.8 | 106 | 32.3 | 97 | 29.6 | 59 | 18 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML500KS | 1,100 | 0.50 | 1 | 18 | 457.2 | 18 | 457.2 | 22 | 6.7 | 44 | 13.4 | 66 | 20.1 | 32 | 9.8 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML500KR | 1,100 | 0.50 | 2 | 18 | 457.2 | 18 | 457.2 | 13 | 4 | 21 | 6.4 | 20 | 6.1 | 15 | 4.6 | 6.4 x 19.5 | 1.1 | 0.5 | 61 | 27.7 |
| ML1000K | 2,200 | 1 | 2 | 18 | 457.2 | 18 | 457.2 | 28 | 8.5 | 53 | 16.2 | 49 | 14.9 | 30 | 9.1 | 6.4 x 19.5 | 1.1 | 0.5 | 61 | 27.7 |
| ML1000KS | 2,200 | 1 | 2 | 18 | 457.2 | 18 | 457.2 | 11 | 3.4 | 22 | 6.7 | 33 | 10.1 | 16 | 4.9 | 6.4 x 19.5 | 1.1 | 0.5 | 61 | 27.7 |
| HL1000K | 2,200 | 1 | 1 | 18.5 | 469.9 | 18.1 | 459.7 | 26 | 7.9 | 40 | 12.2 | 37 | 11.3 | 26 | 7.9 | 9.5 x 25.7 | 1.3 | 0.6 | 84 | 38.1 |
| HL1000KR | 2,200 | 1 | 1 | 18.5 | 469.9 | 18.1 | 459.7 | 26 | 7.9 | 40 | 12.2 | 37 | 11.3 | 26 | 7.9 | 9.5 x 25.7 | 1.3 | 0.6 | 84 | 38.1 |
| HL1500K | 3,300 | 1.50 | 1 | 18.8 | 477.5 | 18.9 | 480.1 | 16 | 4.9 | 28 | 8.5 | 26 | 7.9 | 16 | 4.9 | 9.5 x 25.7 | 1.3 | 0.6 | 84 | 38.1 |
| HL2000K | 4,400 | 2 | 2 | 23 | 584.2 | 21.6 | 548.6 | 13 | 4 | 20 | 6.1 | 18 | 5.5 | 13 | 4 | 9.5 x 25.7 | 2.6 | 1.2 | 125 | 56.7 |
| HL3000K | 6,600 | 3 | 2 | 25 | 635 | 22.6 | 574 | 8 | 2.4 | 14 | 4.3 | 13 | 4 | 8 | 2.4 | 9.5 x 25.7 | 2.6 | 1.2 | 125 | 56.7 |
| HL4500K | 9,900 | 4.50 | 3 | 30.9 | 784.9 | 28 | 711.2 | 4.6 | 1.4 | 10.5 | 3.2 | 10 | 3.1 | 6.6 | 2 | 9.5 x 25.7 | 3.9 | 1.8 | 193 | 87.5 |
| HL6000K | 13,200 | 6 | 4 | 36.2 | 919.5 | 32.2 | 817.9 | 3.5 | 1.1 | 8.4 | 2.6 | 7.6 | 2.3 | 4.8 | 1.5 | 9.5 x 25.7 | 5.2 | 2.4 | 248 | 112.5 |
Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.
Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
- Type
- Air Chain Hoist
- Series
- HLK Series
- Capacity (tons)
- 1-1/2
- Capacity (lbs)
- 3300
- Lift (ft.)
- 10
- Drop (ft.)
- 6
- Control
- Pendent Control
- Top Suspension
- Swivel Top Hook
- Bottom Suspension
- Steel Snap Hook
- Chain Falls
- 1
- Hook Mount Headroom (in.)
- 18.8
- Trolley Mount Headroom (in.)
- 18.9
- Lifting Speed Rated Load (ft/min)
- 16
- Lifting Speed Rated Load (m/min)
- 4.9
- Lifting Speed No Load (ft/min)
- 28
- Lifting Speed No Load (m/min)
- 8.5
- Lowering Speed Rated Load (ft/min)
- 26
- Lowering Speed Rated Load (m/min)
- 7.9
- Lowering Speed No Load (ft/min)
- 16
- Lowering Speed No Load (m/min)
- 4.9
- Chain Size
- 9.5 x 25.7
