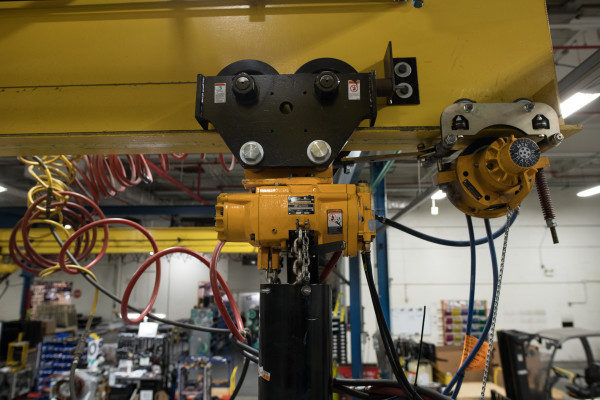

Ingersoll Rand HL1500K-2C10-C6 HLK Series Air Chain Hoist | 1-1/2 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

Ingersoll Rand HL1500K-2C10-C6 HLK Series Air Chain Hoist is engineered for demanding industrial lifting applications requiring dependable performance, precise load positioning, and continuous-duty operation. Featuring a 1-1/2-ton (3,300 lb) lifting capacity, a 10 ft lift, and a 6 ft pendant-control drop, this pneumatic hoist is well-suited for manufacturing, fabrication, maintenance, foundries, steel mills, and other high-production environments. The pilot pendent control provides smooth, responsive lifting and lowering for accurate load handling.

Built on the proven HLK Series platform, this hoist features a 100% duty cycle, enabling continuous operation in severe-duty applications. Its self-adjusting air-operated disc brake, enclosed planetary gearing, anti-friction bearings, and modular internal components help maximize reliability while simplifying maintenance. The hook-mounted configuration allows quick installation on overhead cranes, monorails, and fixed lifting points.

Type: Air Chain Hoist | Series: HLK Series | Model: HL1500K-2C10-C6 | Capacity: 1-1/2 Ton (3,300 lbs) | Lift: 10 ft | Pendant Drop: 6 ft | Control Type: Pendent Control | Top Suspension: Swivel Top Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 1 | Chain Size: 9.5 × 25.7 mm (3/8 in.) | Hook Mount Headroom: 18.8 in. | Trolley Mount Headroom: 18.9 in. | Lifting Speed (Rated Load): 16 ft/min (4.9 m/min) | Lifting Speed (No Load): 28 ft/min (8.5 m/min) | Lowering Speed (Rated Load): 26 ft/min (7.9 m/min) | Lowering Speed (No Load): 16 ft/min (4.9 m/min)

Features:

• 100% duty cycle supports continuous operation in demanding industrial applications.
• Pilot pendent control provides smooth, precise spotting and load positioning.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads.
• Planetary gear transmission promotes long service life and dependable performance.
• Ball and roller bearings support all rotating components for smooth operation.
• Modular motor, brake, and throttle assemblies simplify servicing and reduce downtime.
• Designed with interchangeable components for easier maintenance.
• Compatible with a wide range of optional accessories to suit specific lifting applications.

Applications:

• Manufacturing and production facilities.
• Steel mills and foundries.
• Machine installation and equipment maintenance.
• Fabrication and assembly operations.
• Overhead crane and monorail material handling systems.

FAQs:

• Q: What type of control does this hoist use?
  A: This model uses a pilot pendent control for smooth and accurate load positioning.
• Q: How many chain falls does this hoist have?
  A: This model utilizes one chain fall.
• Q: What size load chain is used?
  A: The manufacturer specifies a 9.5 × 25.7 mm (3/8 in.) alloy load chain.
• Q: Is this hoist suitable for continuous-duty operation?
  A: Yes. The HLK Series is rated for a 100% duty cycle and HMI Duty Classification A5 for severe-duty industrial applications.

Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
