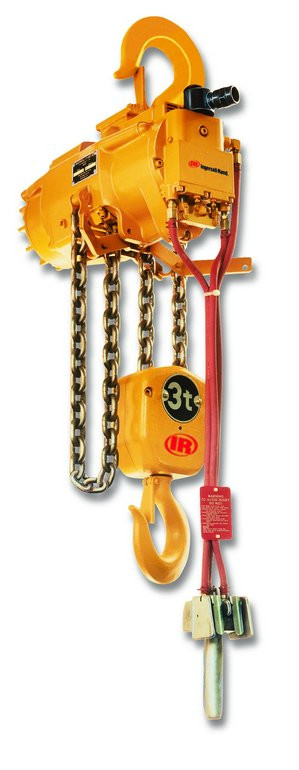

Ingersoll Rand HL1500K-2C10-C12U HLK Series Air Chain Hoist is a heavy-duty pneumatic lifting solution engineered for demanding industrial applications requiring dependable performance, continuous-duty operation, and precise load control. Featuring a 1-1/2-ton (3,300 lb) lifting capacity, a 10 ft lift, and a 12 ft pendant-control drop, this hoist is well-suited for manufacturing, fabrication, assembly, maintenance, steel processing, and overhead material handling. The pilot pendent control enables smooth, responsive lifting and lowering for accurate load positioning.
Built on the proven HLK Series platform, this air chain hoist is designed for 100% duty cycle operation in severe industrial environments. It features a self-adjusting air-operated disc brake, enclosed planetary gearing, anti-friction bearings, and modular internal components that simplify maintenance while providing reliable long-term service. The hook-mounted configuration allows quick installation on overhead cranes, monorails, and fixed lifting points.
Type: Air Chain Hoist | Series: HLK Series | Model: HL1500K-2C10-C12U | Capacity: 1-1/2 Ton (3,300 lbs) | Lift: 10 ft | Pendant Drop: 12 ft | Control Type: Pendent Control | Top Suspension: Swivel Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 1 | Chain Size: 9.5 × 25.7 mm (3/8 in.) | Hook Mount Headroom: 18.8 in. | Trolley Mount Headroom: 18.9 in. | Lifting Speed (Rated Load): 16 ft/min (4.9 m/min) | Lifting Speed (No Load): 28 ft/min (8.5 m/min) | Lowering Speed (Rated Load): 26 ft/min (7.9 m/min) | Lowering Speed (No Load): 16 ft/min (4.9 m/min)
Features:
- 100% duty cycle supports continuous operation in demanding industrial environments.
- Pilot pendent control provides smooth, responsive, and accurate load positioning.
- Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads.
- Planetary gear transmission provides efficient power transfer and extended service life.
- Single-fall alloy load chain delivers dependable lifting performance.
- Ball and roller bearings reduce friction for smooth and reliable operation.
- Modular motor, brake, and throttle assemblies simplify maintenance and reduce downtime.
- Hook-mounted design allows quick installation on cranes, monorails, and fixed overhead lifting points.
Applications:
- Manufacturing and production facilities.
- Steel mills and fabrication shops.
- Equipment installation and maintenance.
- Assembly and production lines.
- Overhead crane and monorail material handling systems.
FAQs:
- Q: What type of control does this hoist use?
A: This model is equipped with a pilot pendent control for precise lifting and lowering. - Q: How many chain falls does this hoist have?
A: This model utilizes one chain fall. - Q: What load chain size is used?
A: The manufacturer specifies a 9.5 × 25.7 mm (3/8 in.) alloy load chain. - Q: Can this hoist operate continuously?
A: Yes. The HLK Series is designed with a 100% duty cycle for demanding industrial applications.
| SKU | Capacity | Hook Mount Headroom |
Trolley Mount Headroom |
Lifting Speed | Lowering Speed | Chain Size |
Chain Weight (per foot of lift) |
Net Weight w/10 ft of Lift |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb | metric tons |
# Falls | in | mm | in | mm | Rated Load | No Load | Rated Load | No Load | lb | kg | lb | kg | ||||||
| ft/min | m/min | ft/min | m/min | ft/min | m/min | ft/min | m/min | |||||||||||||
| ML250K | 550 | 0.25 | 1 | 18 | 457.2 | 18 | 457.2 | 101 | 30.8 | 171 | 52.1 | 117 | 35.7 | 99 | 30.2 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML250KS | 550 | 0.25 | 1 | 18 | 457.2 | 18 | 457.2 | 40 | 12.2 | 71 | 21.6 | 90 | 27.4 | 53 | 16.2 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML250KR | 550 | 0.25 | 1 | 18 | 457.2 | 18 | 457.2 | 26 | 7.9 | 42 | 12.8 | 38 | 11.6 | 30 | 9.1 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML500K | 1,100 | 0.50 | 1 | 18 | 457.2 | 18 | 457.2 | 55 | 16.8 | 106 | 32.3 | 97 | 29.6 | 59 | 18 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML500KS | 1,100 | 0.50 | 1 | 18 | 457.2 | 18 | 457.2 | 22 | 6.7 | 44 | 13.4 | 66 | 20.1 | 32 | 9.8 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML500KR | 1,100 | 0.50 | 2 | 18 | 457.2 | 18 | 457.2 | 13 | 4 | 21 | 6.4 | 20 | 6.1 | 15 | 4.6 | 6.4 x 19.5 | 1.1 | 0.5 | 61 | 27.7 |
| ML1000K | 2,200 | 1 | 2 | 18 | 457.2 | 18 | 457.2 | 28 | 8.5 | 53 | 16.2 | 49 | 14.9 | 30 | 9.1 | 6.4 x 19.5 | 1.1 | 0.5 | 61 | 27.7 |
| ML1000KS | 2,200 | 1 | 2 | 18 | 457.2 | 18 | 457.2 | 11 | 3.4 | 22 | 6.7 | 33 | 10.1 | 16 | 4.9 | 6.4 x 19.5 | 1.1 | 0.5 | 61 | 27.7 |
| HL1000K | 2,200 | 1 | 1 | 18.5 | 469.9 | 18.1 | 459.7 | 26 | 7.9 | 40 | 12.2 | 37 | 11.3 | 26 | 7.9 | 9.5 x 25.7 | 1.3 | 0.6 | 84 | 38.1 |
| HL1000KR | 2,200 | 1 | 1 | 18.5 | 469.9 | 18.1 | 459.7 | 26 | 7.9 | 40 | 12.2 | 37 | 11.3 | 26 | 7.9 | 9.5 x 25.7 | 1.3 | 0.6 | 84 | 38.1 |
| HL1500K | 3,300 | 1.50 | 1 | 18.8 | 477.5 | 18.9 | 480.1 | 16 | 4.9 | 28 | 8.5 | 26 | 7.9 | 16 | 4.9 | 9.5 x 25.7 | 1.3 | 0.6 | 84 | 38.1 |
| HL2000K | 4,400 | 2 | 2 | 23 | 584.2 | 21.6 | 548.6 | 13 | 4 | 20 | 6.1 | 18 | 5.5 | 13 | 4 | 9.5 x 25.7 | 2.6 | 1.2 | 125 | 56.7 |
| HL3000K | 6,600 | 3 | 2 | 25 | 635 | 22.6 | 574 | 8 | 2.4 | 14 | 4.3 | 13 | 4 | 8 | 2.4 | 9.5 x 25.7 | 2.6 | 1.2 | 125 | 56.7 |
| HL4500K | 9,900 | 4.50 | 3 | 30.9 | 784.9 | 28 | 711.2 | 4.6 | 1.4 | 10.5 | 3.2 | 10 | 3.1 | 6.6 | 2 | 9.5 x 25.7 | 3.9 | 1.8 | 193 | 87.5 |
| HL6000K | 13,200 | 6 | 4 | 36.2 | 919.5 | 32.2 | 817.9 | 3.5 | 1.1 | 8.4 | 2.6 | 7.6 | 2.3 | 4.8 | 1.5 | 9.5 x 25.7 | 5.2 | 2.4 | 248 | 112.5 |
Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.
Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
