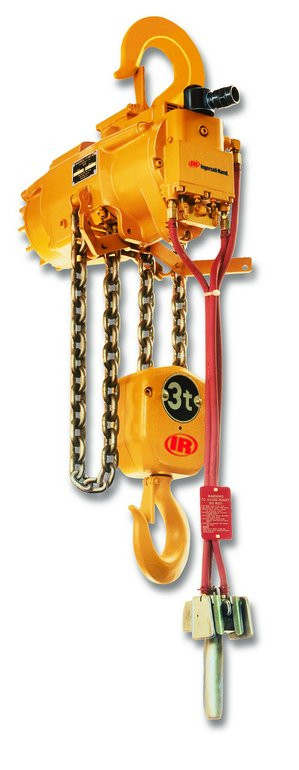

Ingersoll Rand HL1500K-1C15-C6U HLK Series Air Chain Hoist is a rugged pneumatic lifting solution engineered for demanding industrial applications where continuous-duty performance and reliable manual control are essential. Featuring a 1-1/2 Ton (3,300 lb) lifting capacity, 15 ft lift, and 6 ft pull chain control drop, this hoist is well suited for manufacturing, maintenance, fabrication, steel mills, foundries, and general material handling. The pull chain control allows direct mechanical actuation of the hoist, making it an excellent choice for applications where pendant controls are not required.
Built on the proven HLK Series platform, this air chain hoist is designed for 100% duty cycle operation in severe industrial environments. It incorporates a self-adjusting air-operated disc brake, enclosed planetary gearing, anti-friction bearings, and modular internal components that simplify maintenance while providing dependable long-term performance. The hook-mounted configuration allows quick installation on overhead cranes, monorails, and fixed lifting points.
Type: Air Chain Hoist | Series: HLK Series | Model: HL1500K-1C15-C6U | Capacity: 1-1/2 Ton (3,300 lbs) | Lift: 15 ft | Control Drop: 6 ft | Control Type: Pull Chain Control | Top Suspension: Swivel Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 1 | Chain Size: 9.5 × 25.7 mm (3/8 in.) | Hook Mount Headroom: 18.8 in. | Trolley Mount Headroom: 18.9 in. | Lifting Speed (Rated Load): 16 ft/min (4.9 m/min) | Lifting Speed (No Load): 28 ft/min (8.5 m/min) | Lowering Speed (Rated Load): 26 ft/min (7.9 m/min) | Lowering Speed (No Load): 16 ft/min (4.9 m/min)
Features:
- 100% duty cycle supports continuous industrial lifting operations.
- Manual pull chain control provides reliable and precise load positioning.
- Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads.
- Planetary gearing ensures efficient power transmission and long service life.
- Single-fall alloy load chain provides dependable lifting performance.
- Ball and roller bearings reduce wear while promoting smooth operation.
- Modular motor, brake, and throttle assemblies simplify maintenance and reduce downtime.
- Hook-mounted design allows installation on overhead cranes, monorails, and fixed lifting structures.
Applications:
- Manufacturing and production facilities.
- Steel mills and foundries.
- Industrial maintenance operations.
- Equipment installation and repair.
- Overhead crane and monorail material handling systems.
FAQs:
- Q: What type of control does this hoist use?
A: This model uses manual pull chain control for direct and accurate operation. - Q: How many chain falls does this hoist have?
A: This model is equipped with one chain fall. - Q: What load chain size is specified?
A: The manufacturer specifies a 9.5 × 25.7 mm (3/8 in.) alloy load chain. - Q: Is this hoist suitable for continuous-duty industrial applications?
A: Yes. The HLK Series is designed for a 100% duty cycle, making it suitable for demanding industrial environments.
| SKU | Capacity | Hook Mount Headroom |
Trolley Mount Headroom |
Lifting Speed | Lowering Speed | Chain Size |
Chain Weight (per foot of lift) |
Net Weight w/10 ft of Lift |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb | metric tons |
# Falls | in | mm | in | mm | Rated Load | No Load | Rated Load | No Load | lb | kg | lb | kg | ||||||
| ft/min | m/min | ft/min | m/min | ft/min | m/min | ft/min | m/min | |||||||||||||
| ML250K | 550 | 0.25 | 1 | 18 | 457.2 | 18 | 457.2 | 101 | 30.8 | 171 | 52.1 | 117 | 35.7 | 99 | 30.2 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML250KS | 550 | 0.25 | 1 | 18 | 457.2 | 18 | 457.2 | 40 | 12.2 | 71 | 21.6 | 90 | 27.4 | 53 | 16.2 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML250KR | 550 | 0.25 | 1 | 18 | 457.2 | 18 | 457.2 | 26 | 7.9 | 42 | 12.8 | 38 | 11.6 | 30 | 9.1 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML500K | 1,100 | 0.50 | 1 | 18 | 457.2 | 18 | 457.2 | 55 | 16.8 | 106 | 32.3 | 97 | 29.6 | 59 | 18 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML500KS | 1,100 | 0.50 | 1 | 18 | 457.2 | 18 | 457.2 | 22 | 6.7 | 44 | 13.4 | 66 | 20.1 | 32 | 9.8 | 6.4 x 19.5 | 0.6 | 0.3 | 48 | 21.8 |
| ML500KR | 1,100 | 0.50 | 2 | 18 | 457.2 | 18 | 457.2 | 13 | 4 | 21 | 6.4 | 20 | 6.1 | 15 | 4.6 | 6.4 x 19.5 | 1.1 | 0.5 | 61 | 27.7 |
| ML1000K | 2,200 | 1 | 2 | 18 | 457.2 | 18 | 457.2 | 28 | 8.5 | 53 | 16.2 | 49 | 14.9 | 30 | 9.1 | 6.4 x 19.5 | 1.1 | 0.5 | 61 | 27.7 |
| ML1000KS | 2,200 | 1 | 2 | 18 | 457.2 | 18 | 457.2 | 11 | 3.4 | 22 | 6.7 | 33 | 10.1 | 16 | 4.9 | 6.4 x 19.5 | 1.1 | 0.5 | 61 | 27.7 |
| HL1000K | 2,200 | 1 | 1 | 18.5 | 469.9 | 18.1 | 459.7 | 26 | 7.9 | 40 | 12.2 | 37 | 11.3 | 26 | 7.9 | 9.5 x 25.7 | 1.3 | 0.6 | 84 | 38.1 |
| HL1000KR | 2,200 | 1 | 1 | 18.5 | 469.9 | 18.1 | 459.7 | 26 | 7.9 | 40 | 12.2 | 37 | 11.3 | 26 | 7.9 | 9.5 x 25.7 | 1.3 | 0.6 | 84 | 38.1 |
| HL1500K | 3,300 | 1.50 | 1 | 18.8 | 477.5 | 18.9 | 480.1 | 16 | 4.9 | 28 | 8.5 | 26 | 7.9 | 16 | 4.9 | 9.5 x 25.7 | 1.3 | 0.6 | 84 | 38.1 |
| HL2000K | 4,400 | 2 | 2 | 23 | 584.2 | 21.6 | 548.6 | 13 | 4 | 20 | 6.1 | 18 | 5.5 | 13 | 4 | 9.5 x 25.7 | 2.6 | 1.2 | 125 | 56.7 |
| HL3000K | 6,600 | 3 | 2 | 25 | 635 | 22.6 | 574 | 8 | 2.4 | 14 | 4.3 | 13 | 4 | 8 | 2.4 | 9.5 x 25.7 | 2.6 | 1.2 | 125 | 56.7 |
| HL4500K | 9,900 | 4.50 | 3 | 30.9 | 784.9 | 28 | 711.2 | 4.6 | 1.4 | 10.5 | 3.2 | 10 | 3.1 | 6.6 | 2 | 9.5 x 25.7 | 3.9 | 1.8 | 193 | 87.5 |
| HL6000K | 13,200 | 6 | 4 | 36.2 | 919.5 | 32.2 | 817.9 | 3.5 | 1.1 | 8.4 | 2.6 | 7.6 | 2.3 | 4.8 | 1.5 | 9.5 x 25.7 | 5.2 | 2.4 | 248 | 112.5 |
Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.
Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
