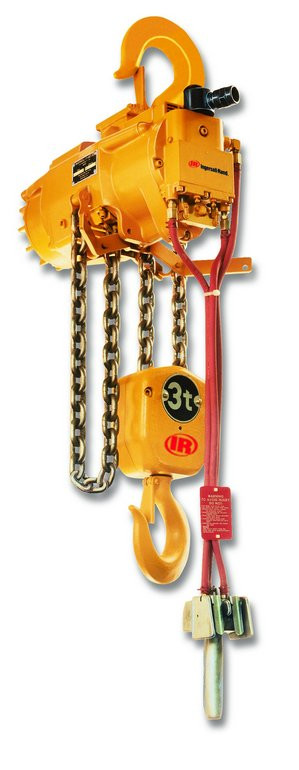

Ingersoll Rand HL1000K-2C20-C16 HLK Series Air Chain Hoist is a high-performance pneumatic hoist engineered for demanding industrial lifting applications requiring reliable operation and precise load control. Featuring a 1 Ton (2,200 lb) lifting capacity, 20 ft lift, and 16 ft pendant control drop, this model is ideal for manufacturing, fabrication, maintenance, and material handling operations. The pilot pendent control provides smooth, responsive lifting and lowering, allowing operators to accurately position loads while maintaining high productivity.
Built for continuous industrial service, the HLK Series features a 100% duty cycle, self-adjusting air-operated disc brake, enclosed planetary gearing, anti-friction bearings, and modular internal components that simplify maintenance while delivering dependable long-term performance. The swivel steel snap hook suspension and steel snap hook load hook provide secure attachment for overhead cranes, monorails, and fixed lifting systems.
Type: Air Chain Hoist | Series: HLK Series | Capacity: 1 Ton (2,200 lbs) | Lift: 20 ft | Pendant Drop: 16 ft | Control Type: Pendent Control | Top Suspension: Swivel Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 1 | Hook Mount Headroom: 18.5 in. | Trolley Mount Headroom: 18.1 in. | Lifting Speed (Rated Load): 26 ft/min (7.9 m/min) | Lifting Speed (No Load): 40 ft/min (12.2 m/min) | Lowering Speed (Rated Load): 37 ft/min (11.3 m/min) | Lowering Speed (No Load): 26 ft/min (7.9 m/min) | Chain Size: 9.5 × 25.7 mm (3/8 in.)
Features:
- 100% duty cycle supports continuous industrial lifting operations.
- Pilot pendent control provides smooth, responsive, and accurate load positioning.
- Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads throughout operation.
- Planetary gear transmission distributes loads evenly for dependable performance and extended service life.
- Single-fall 3/8 in. alloy load chain delivers efficient lifting performance for the rated capacity.
- Ball and roller bearings reduce friction and promote smooth, reliable operation.
- Interchangeable motor, brake, and throttle assemblies simplify maintenance and minimize downtime.
- Hook-mounted configuration allows versatile installation on overhead cranes, monorails, and fixed lifting structures.
Applications:
- Manufacturing and production facilities.
- Material handling on overhead cranes and monorail systems.
- Equipment installation and industrial maintenance.
- Steel fabrication and machine shop operations.
- General industrial lifting requiring fast, accurate pneumatic control.
FAQs:
- Q: What type of control does this hoist use?
A: This model features a pilot pendent control for smooth and precise lifting and lowering. - Q: How many chain falls does this hoist have?
A: This model utilizes 1 chain fall. - Q: What size load chain is used?
A: The HL1000K Series uses a 9.5 × 25.7 mm (3/8 in.) alloy load chain. - Q: Is this hoist suitable for continuous-duty industrial service?
A: Yes. The HLK Series is engineered with a 100% duty cycle for demanding industrial applications.
| SKU | Lifting Capacity | # Falls | Lifting Speed Rated Load |
Lowering Speed Rated Load |
Hook Mount Headroom |
Trolley Mount Headroom |
Shipping Weight Top Hook |
Page No. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb | metric tons |
ft/min | m/min | ft/min | m/min | in | mm | in | mm | lb | kg | |||
| CLK SERIES | ||||||||||||||
| CL125K | 275 | 0.125 | 1 | 43 | 13.1 | 37 | 11.3 | 11.5 | 292.1 | 14.1 | 358.1 | 34 | 15.4 | 6 |
| CL250K | 550 | 0.25 | 1 | 32 | 9.8 | 45 | 13.7 | 11.5 | 292.1 | 14.1 | 358.1 | 34 | 15.4 | 6 |
| CL500K | 1100 | 0.50 | 2 | 15 | 4.6 | 22 | 6.7 | 12.75 | 323.9 | 15.35 | 389.9 | 38 | 17.2 | 6 |
| MLK SERIES AND HLK SERIES | ||||||||||||||
| ML250K | 550 | 0.25 | 1 | 101 | 30.8 | 117 | 35.7 | 18 | 457.2 | 18 | 457.2 | 48 | 21.8 | 10 |
| ML250KS | 550 | 0.25 | 1 | 40 | 12.2 | 90 | 27.4 | 18 | 457.2 | 18 | 457.2 | 48 | 21.8 | 10 |
| ML250KR | 550 | 0.25 | 1 | 26 | 7.9 | 38 | 11.6 | 18 | 457.2 | 18 | 457.2 | 48 | 21.8 | 10 |
| ML500K | 1,100 | 0.5 | 1 | 55 | 16.8 | 97 | 29.6 | 18 | 457.2 | 18 | 457.2 | 48 | 21.8 | 10 |
| ML500KS | 1,100 | 0.5 | 1 | 22 | 6.7 | 66 | 20.1 | 18 | 457.2 | 18 | 457.2 | 48 | 21.8 | 10 |
| ML500KR | 1,100 | 0.5 | 2 | 13 | 4 | 20 | 6.1 | 18 | 457.2 | 18 | 457.2 | 61 | 27.7 | 10 |
| ML1000K | 2,200 | 1 | 2 | 28 | 8.5 | 49 | 14.9 | 18 | 457.2 | 18 | 457.2 | 61 | 27.7 | 10 |
| ML1000KS | 2,200 | 1 | 2 | 11 | 3.4 | 33 | 10.1 | 18 | 457.2 | 18 | 457.2 | 61 | 27.7 | 10 |
| HL1000K | 2,200 | 1 | 1 | 26 | 7.9 | 37 | 11.3 | 18.5 | 469.9 | 18.1 | 460.5 | 84 | 38.1 | 10 |
| HL1000KR | 2,200 | 1 | 1 | 26 | 7.9 | 37 | 11.3 | 18.5 | 469.9 | 18.1 | 460.5 | 84 | 38.1 | 10 |
| HL1500K | 3,300 | 1.5 | 1 | 16 | 4.9 | 26 | 7.9 | 18.8 | 477.5 | 18.9 | 479.5 | 84 | 38.1 | 10 |
| HL2000K | 4,400 | 2 | 2 | 13 | 4 | 18 | 5.5 | 23 | 584.2 | 21.6 | 549.4 | 125 | 56.7 | 10 |
| HL3000K | 6,600 | 3 | 2 | 8 | 2.4 | 13 | 4 | 25 | 635 | 22.6 | 574.8 | 125 | 56.7 | 10 |
| HL4500K | 10,000 | 4.5 | 3 | 4.6 | 1.4 | 10 | 3.1 | 30.9 | 784.4 | 28 | 711.2 | 193 | 87.5 | 10 |
| HL6000K | 13,200 | 6 | 4 | 3.5 | 1.1 | 7.6 | 2.3 | 36.2 | 919.2 | 32.2 | 817.6 | 248 | 112.5 | 10 |
Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.
Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
