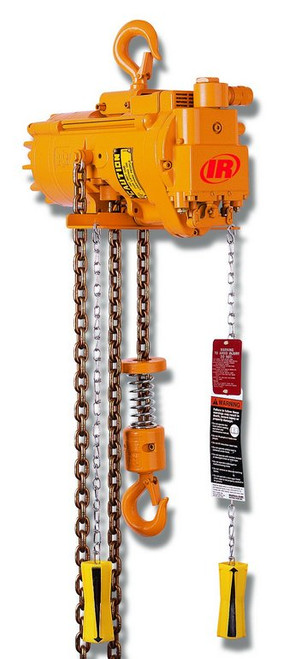

Ingersoll Rand HL1000K-2C15-C11S HLK Series Air Chain Hoist | 1 Ton Capacity | 15 ft Lift | 11 ft Drop | Steel Snap Hook | Pendent Control

Ingersoll Rand HL1000K-2C15-C11S HLK Series Air Chain Hoist is a high-performance pneumatic lifting solution designed for demanding industrial material handling applications. Delivering a 1 Ton (2,200 lb) lifting capacity, 15 ft lift, and 11 ft pendant control drop, this hoist provides fast, accurate load handling for manufacturing, fabrication, maintenance, and production environments. The pilot pendent control enables smooth, responsive lifting and lowering, allowing operators to position loads with precision while maximizing productivity.

Built as part of the HLK Series, this air chain hoist is engineered for continuous industrial service with a 100% duty cycle. Its rugged design incorporates a self-adjusting air-operated disc brake, enclosed planetary gearing, anti-friction bearings, and modular internal components for dependable performance and simplified maintenance. The swivel steel snap hook suspension and steel snap hook load hook provide secure attachment to overhead cranes, monorails, and fixed lifting structures.

Type: Air Chain Hoist | Series: HLK Series | Capacity: 1 Ton (2,200 lbs) | Lift: 15 ft | Pendant Drop: 11 ft | Control Type: Pendent Control | Top Suspension: Swivel Steel Snap Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 1 | Hook Mount Headroom: 18.5 in. | Trolley Mount Headroom: 18.1 in. | Lifting Speed (Rated Load): 26 ft/min (7.9 m/min) | Lifting Speed (No Load): 40 ft/min (12.2 m/min) | Lowering Speed (Rated Load): 37 ft/min (11.3 m/min) | Lowering Speed (No Load): 26 ft/min (7.9 m/min) | Chain Size: 9.5 × 25.7 mm (3/8 in.)

Features:

• 100% duty cycle supports continuous industrial lifting operations.
• Pilot pendent control provides smooth, responsive, and precise load positioning.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads throughout operation.
• Planetary gear transmission distributes loads evenly for improved durability and efficient power transfer.
• Single-fall 3/8 in. alloy load chain delivers dependable lifting performance.
• Ball and roller bearings minimize friction for smooth, reliable operation.
• Interchangeable motor, brake, and throttle assemblies simplify maintenance and reduce downtime.
• Hook-mounted configuration allows versatile installation on overhead cranes, monorails, and fixed lifting systems.

Applications:

• Manufacturing and production facilities.
• Material handling on overhead cranes and monorail systems.
• Equipment installation and industrial maintenance.
• Steel fabrication and machine shop operations.
• General industrial lifting requiring fast, accurate pneumatic control.

FAQs:

• Q: What type of control does this hoist use?
  A: This model features a pilot pendent control for smooth and accurate lifting and lowering.
• Q: How many chain falls does this hoist have?
  A: This model utilizes 1 chain fall.
• Q: What size load chain is used?
  A: The HL1000K Series uses a 9.5 × 25.7 mm (3/8 in.) alloy load chain.
• Q: Is this hoist suitable for continuous-duty industrial service?
  A: Yes. The HLK Series is engineered with a 100% duty cycle for demanding industrial applications.

Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
