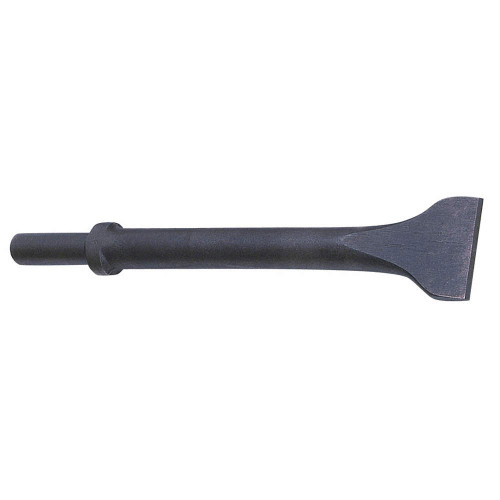

Built for surface scaling and material removal with compatible pneumatic chipping hammers, the Ingersoll Rand HH1-324-9 2" Scaling Chisel features a 9" length, 0.58" hex shank, and oval collar. The 2" scaling profile provides the specified working configuration. In contrast, the hex shank and oval collar identify the mounting arrangement required for compatible equipment.
The HH1-324-9 is part of the Ingersoll Rand chipping hammer steel range and is configured for scaling applications requiring a 2" chisel with a 9" overall length. Its 0.58" hex shank and oval collar should be matched to the compatible pneumatic chipping hammer and retainer configuration before ordering.
Type: Scaling Chisel | Chisel Size: 2" | Length: 9" | Shank: 0.58" Hex | Collar: Oval
Features:
- 2" scaling chisel profile provides the specified working width for scaling applications.
- 9" length provides the specified overall chisel dimension.
- 0.58" hex shank identifies the required shank configuration for compatible equipment.
- Oval collar provides the specified retainer interface.
- Configured as chipping hammer steel for compatible pneumatic equipment.
Note: Other Ingersoll Rand Steels and accessories include Bushing tools, Moil Points, Ground Rod Driver, Spark-Resistant Chisels, Flat Chisel, Blanks, Capes, Gouges, Round Noses, Fullers, Caulkings, Tooth Chisels, Paper Box Stripping Chisels, Jack Rods, Bits, Diamond Points, Clay Spades, Couplers, Cutters, Hoses, Lock Clips, Lock Springs, Retainers, Rubber Bumpers, Shanks and Washers etc.
Applications:
- Surface scaling with compatible pneumatic chipping hammers.
- Construction and maintenance applications requiring a 2" scaling chisel.
- Material removal and surface preparation using compatible chipping hammer equipment.
- Industrial repair applications requiring a 0.58" hex shank and oval collar configuration.
FAQs:
- Q: What type of tool is the HH1-324-9?
A: It is a 2" scaling chisel listed as chipping hammer steel for compatible pneumatic equipment. - Q: What is the length of the HH1-324-9?
A: The specified length is 9 inches. - Q: What shank configuration does this chisel use?
A: The HH1-324-9 uses a 0.58" hex shank. - Q: What type of collar does the HH1-324-9 have?
A: This model uses an oval collar. - Q: What does the 2" specification refer to?
A: The 2" designation identifies the scaling chisel size specified for this model.

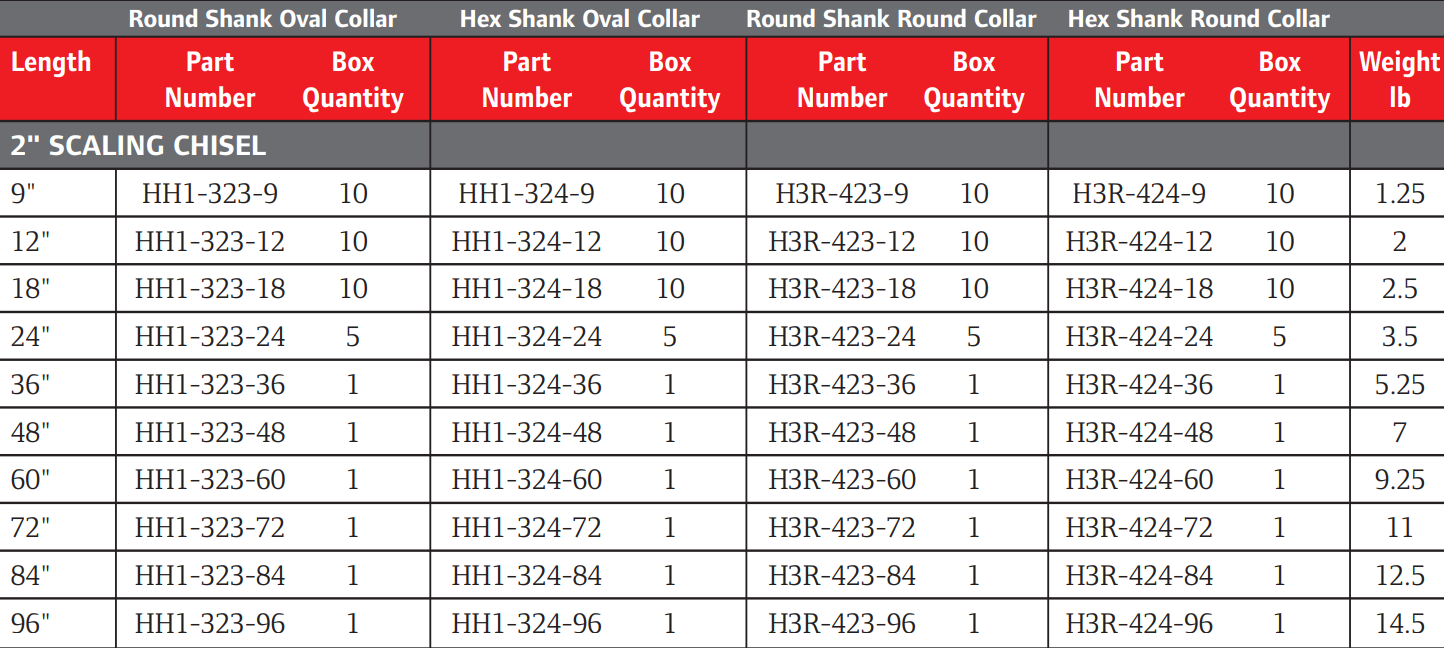

| SKU | Round Shank Oval Collar | Hex Shank Oval Collar | Round Shank Round Collar | Hex Shank Round Collar | Weight lb | ||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Box Quantity | Part Number | Box Quantity | Part Number | Box Quantity | Part Number | Box Quantity | ||
| 2" Scaling Chisel | |||||||||
| 9" | HH1-323-9 | 10 | HH1-324-9 | 10 | H3R-423-9 | 10 | H3R-424-9 | 10 | 1.25 |
| 12" | HH1-323-12 | 10 | HH1-324-12 | 10 | H3R-423-12 | 10 | H3R-424-12 | 10 | 2 |
| 18" | HH1-323-18 | 10 | HH1-324-18 | 10 | H3R-423-18 | 10 | H3R-424-18 | 10 | 2.5 |
| 24" | HH1-323-24 | 5 | HH1-324-24 | 5 | H3R-423-24 | 5 | H3R-424-24 | 5 | 3.5 |
| 36" | HH1-323-36 | 1 | HH1-324-36 | 1 | H3R-423-36 | 1 | H3R-424-36 | 1 | 5.25 |
| 48" | HH1-323-48 | 1 | HH1-324-48 | 1 | H3R-423-48 | 1 | H3R-424-48 | 1 | 7 |
| 60" | HH1-323-60 | 1 | HH1-324-60 | 1 | H3R-423-60 | 1 | H3R-424-60 | 1 | 9.25 |
| 72" | HH1-323-72 | 1 | HH1-324-72 | 1 | H3R-423-72 | 1 | H3R-424-72 | 1 | 11 |
| 84" | HH1-323-84 | 1 | HH1-324-84 | 1 | H3R-423-84 | 1 | H3R-424-84 | 1 | 12.5 |
| 96" | HH1-323-96 | 1 | HH1-324-96 | 1 | H3R-423-96 | 1 | H3R-424-96 | 1 | 14.5 |
Looking for more information about Ingersoll Rand Scaling Chisel? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Scaling Chisels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Scaling Chisel
- Length (in.)
- 9
- Shank Size (in.)
- 0.58
- Shank Type
- Hex
- Collar Style
- Oval
- Material
- Steel
