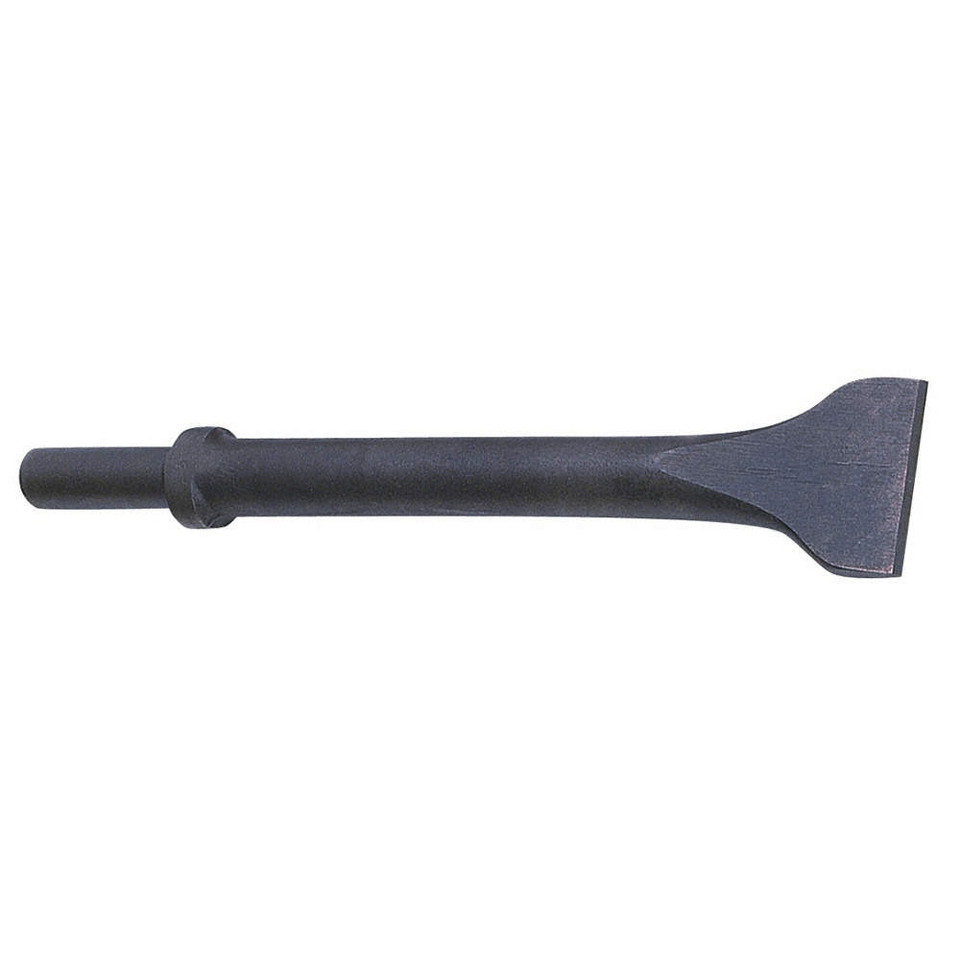

Built for surface scaling applications with compatible pneumatic chipping hammers, the Ingersoll Rand H3R-424-12 2" Scaling Chisel features a 12" length, 0.58" hex shank, and round collar. The 2" scaling profile provides the specified working configuration, while the hex shank and round collar identify the mounting arrangement for compatible equipment.
The H3R-424-12 is listed in the Ingersoll Rand Construction Tool Steels catalog as a 2" scaling chisel with a 12" length. Its 0.58" hex shank and round collar specify the tool interface that should be matched to compatible pneumatic chipping hammer equipment before ordering.
Type: Scaling Chisel | Chisel Size: 2" | Length: 12" | Shank: 0.58" Hex | Collar: Round
Features:
- 2" scaling chisel configuration provides the specified working profile for scaling applications.
- 12" length provides the specified overall chisel dimension.
- 0.58" hex shank identifies the required shank configuration for compatible equipment.
- Round collar provides the specified retainer configuration.
- Configured as chipping hammer steel for compatible pneumatic equipment.
Note: Other Ingersoll Rand Steels and accessories include Bushing tools, Moil Points, Ground Rod Driver, Spark-Resistant Chisels, Flat Chisel, Blanks, Capes, Gouges, Round Noses, Fullers, Caulkings, Tooth Chisels, Paper Box Stripping Chisels, Jack Rods, Bits, Diamond Points, Clay Spades, Couplers, Cutters, Hoses, Lock Clips, Lock Springs, Retainers, Rubber Bumpers, Shanks and Washers etc.
Applications:
- Surface scaling with compatible pneumatic chipping hammers.
- Construction and maintenance applications requiring a 2" scaling chisel.
- Material removal and surface preparation using compatible chipping hammer equipment.
- Applications requiring a 0.58" hex shank and round collar configuration.
FAQs:
- Q: What type of tool is the H3R-424-12?
A: It is a 2" scaling chisel listed in the Ingersoll Rand chipping hammer steels range. - Q: What is the length of the H3R-424-12?
A: The specified length is 12 inches. - Q: What shank configuration does this chisel use?
A: The H3R-424-12 uses a 0.58" hex shank. - Q: What type of collar does the H3R-424-12 have?
A: This model has a round collar. - Q: What does the 2" specification refer to?
A: The 2" designation identifies the scaling chisel size specified for this model.

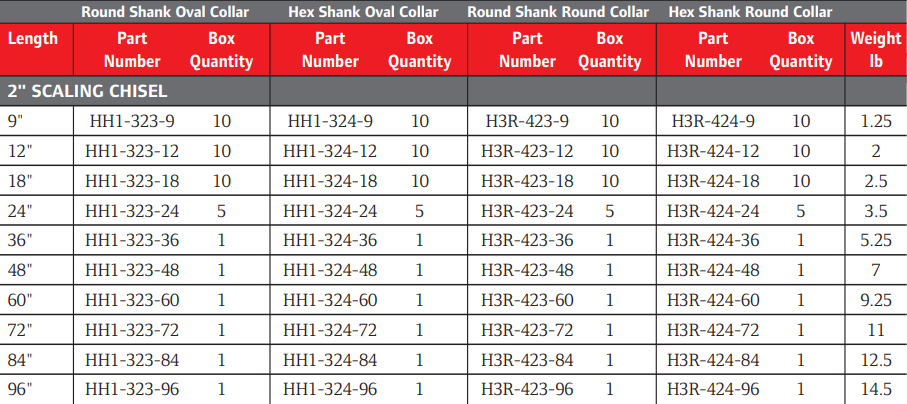

| SKU | Round Shank Oval Collar | Hex Shank Oval Collar | Round Shank Round Collar | Hex Shank Round Collar | Weight lb | ||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Box Quantity | Part Number | Box Quantity | Part Number | Box Quantity | Part Number | Box Quantity | ||
| 2" Scaling Chisel | |||||||||
| 9" | HH1-323-9 | 10 | HH1-324-9 | 10 | H3R-423-9 | 10 | H3R-424-9 | 10 | 1.25 |
| 12" | HH1-323-12 | 10 | HH1-324-12 | 10 | H3R-423-12 | 10 | H3R-424-12 | 10 | 2 |
| 18" | HH1-323-18 | 10 | HH1-324-18 | 10 | H3R-423-18 | 10 | H3R-424-18 | 10 | 2.5 |
| 24" | HH1-323-24 | 5 | HH1-324-24 | 5 | H3R-423-24 | 5 | H3R-424-24 | 5 | 3.5 |
| 36" | HH1-323-36 | 1 | HH1-324-36 | 1 | H3R-423-36 | 1 | H3R-424-36 | 1 | 5.25 |
| 48" | HH1-323-48 | 1 | HH1-324-48 | 1 | H3R-423-48 | 1 | H3R-424-48 | 1 | 7 |
| 60" | HH1-323-60 | 1 | HH1-324-60 | 1 | H3R-423-60 | 1 | H3R-424-60 | 1 | 9.25 |
| 72" | HH1-323-72 | 1 | HH1-324-72 | 1 | H3R-423-72 | 1 | H3R-424-72 | 1 | 11 |
| 84" | HH1-323-84 | 1 | HH1-324-84 | 1 | H3R-423-84 | 1 | H3R-424-84 | 1 | 12.5 |
| 96" | HH1-323-96 | 1 | HH1-324-96 | 1 | H3R-423-96 | 1 | H3R-424-96 | 1 | 14.5 |
Looking for more information about Ingersoll Rand Scaling Chisel? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Scaling Chisels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Scaling Chisel
- Length (in.)
- 12
- Shank Size (in.)
- 0.58
- Shank Type
- Hex
- Collar Style
- Round
- Material
- Steel
