Ingersoll Rand H3R-214T-9 Bushing Tool | 9" Length | 0.58 Hex Shank Round Collar

When concrete surfaces need leveling or roughening before repair work, the Ingersoll Rand H3R-214T-9 Bushing Tool provides a specialized working face for use with compatible pneumatic chipping hammers. Featuring a 9-inch length, 0.58-inch hex shank, and round collar configuration, this construction steel accessory is specifically listed by Ingersoll Rand for concrete leveling and roughing. Its multi-point bushing head delivers repeated impacts across the working face, helping remove localized high spots and create a textured concrete surface. Unlike conventional flat chisels that use a continuous cutting edge, this accessory is intended for surface preparation rather than general demolition.

The H3R-214T-9 weighs 2.5 lbs and belongs to the Ingersoll Rand Chipping Hammer Steels range. Its hexagonal shank provides the specified connection profile for matching hammer barrels, while the round collar accommodates the appropriate tool-retention arrangement. This combination distinguishes the H3R-214T-9 from the HH1-214T-9, which has the same 0.58-inch hex shank and 9-inch length but uses an oval collar. For contractors and maintenance teams replacing worn concrete preparation steels, verifying both the shank shape and collar style is essential to selecting the correct accessory.

Type: Pneumatic Chipping Hammer Bushing Tool | Manufacturer: Ingersoll Rand | Part Number: H3R-214T-9 | Tool Style: Bushing Tool | Length: 9" | Shank Type: Hex | Shank Size: 0.58" | Collar Type: Round | Weight: 2.5 lbs | Catalog Box Quantity: 1 | Application: Concrete Leveling and Roughing

Features:

• Bushing tool working head is intended for concrete leveling and surface roughening operations.
• Multi-point working face produces localized impact marks to help texture concrete and remove surface irregularities.
• 0.58-inch hex shank provides the specified connection geometry for compatible pneumatic chipping hammers.
• Round collar configuration matches the appropriate hammer-retention arrangement when correctly paired with the equipment.
• 9-inch length provides a compact construction steel option for localized concrete surface preparation.
• 2.5 lb catalog weight helps identify this accessory when comparing replacement chipping hammer steels.
• Specialized working head offers an alternative to conventional scaling chisels where concrete roughening and leveling are required.
• Part of the Ingersoll Rand Chipping Hammer Steels selection, with additional round-shank and oval-collar variations available.

Note: Other Ingersoll Rand Steels and accessories include Moil Points, Ground Rod Driver, Spark-Resistant Chisels, Flat Chisel, Blanks, Capes, Gouges, Round Noses, Fullers, Caulkings, Tooth Chisels, Paper Box Stripping Chisels, Jack Rods, Bits, Diamond Points, Clay Spades, Couplers, Cutters, Hoses, Lock Clips, Lock Springs, Retainers, Rubber Bumpers, Shanks and Washers, etc.

Applications:

• Concrete floor rehabilitation – reducing localized high spots and uneven areas before additional repair or finishing work.
• Building renovation – roughening existing concrete surfaces during restoration and modification projects.
• Industrial facility maintenance – treating worn or irregular concrete surfaces in accessible maintenance areas.
• Concrete patch preparation – creating surface texture before applying compatible repair materials, subject to the repair manufacturer's preparation requirements.
• Construction surface correction – performing localized concrete leveling where a pneumatic bushing tool is more appropriate than a demolition chisel.

FAQs:

• Q: What is the Ingersoll Rand H3R-214T-9 Bushing Tool used for?

  A: The manufacturer identifies this accessory for concrete leveling and roughing. Its multi-point working face helps remove localized surface irregularities and create a roughened concrete texture when operated with a compatible pneumatic chipping hammer.

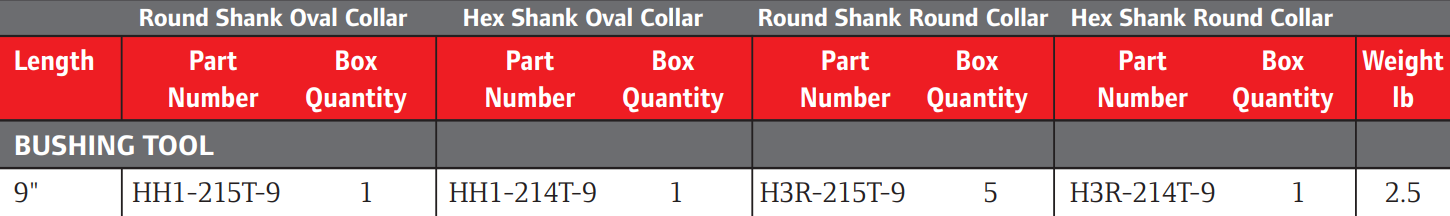

• Q: How does the H3R-214T-9 differ from the HH1-214T-9?

  A: Both bushing tools have a 9-inch length, 0.58-inch hex shank, and 2.5 lb catalog weight. The H3R-214T-9 uses a round collar, while the HH1-214T-9 has an oval collar. Select the version specified for your chipping hammer's retention system.

• Q: Can this tool be used to smooth or polish concrete?

  A: No. A bushing tool roughens and levels concrete by producing localized impact marks. It does not create a polished or smooth finished surface. Additional finishing equipment may be required if a smooth surface is the desired result.

• Q: Will the H3R-214T-9 fit a chipping hammer with a round shank?

  A: Not unless the hammer is specifically configured to accept the 0.58-inch hex shank and round collar. For equipment requiring a 0.68-inch round shank with a round collar, Ingersoll Rand lists the H3R-215T-9 as a separate configuration. Always verify the hammer's accessory specifications.

• Q: How many bushing tools are included in the manufacturer's box?

  A: Ingersoll Rand lists a catalog box quantity of one for the H3R-214T-9. Confirm the distributor's selling unit and order quantity before purchasing.
