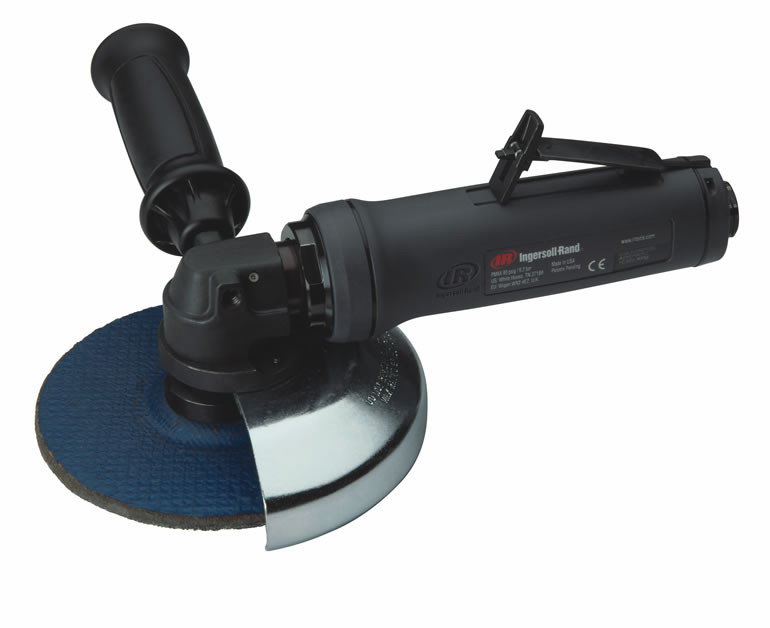

Ingersoll Rand G3L086PP95 Air Angle Grinder | 1.35 HP | 86,000 RPM | M14 Thread | Rear Exhaust

For metal fabrication and surface preparation jobs that require additional reach, the Ingersoll Rand G3L086PP95 Air Angle Grinder delivers pneumatic grinding power in an extended-angle configuration. Part of the G3 Series, this grinder features a 1.35 HP (1.0 kW) vane motor and an 8,600 RPM maximum free speed for grinding, weld cleanup, deburring, and surface finishing with compatible abrasive accessories. Its 125 mm (5-inch) wheel diameter provides working coverage for localized material removal, while the M14 threaded spindle provides a metric mounting connection for approved grinding wheels and accessories. The rear exhaust configuration directs discharged compressed air toward the back of the tool, helping keep exhaust airflow away from the immediate grinding point.

The G3L086PP95 features an extended 13-inch (330 mm) overall length, allowing operators to reach grinding locations around equipment structures and recessed workpieces where shorter angle grinders may be difficult to position. Its 5.07 lb (2.3 kg) weight and lightweight composite housing provide a manageable configuration for repeated grinding and finishing operations. The G3 Series incorporates an ergonomically shaped body for secure handling and construction intended to withstand repeated drops, chemical spills, and challenging industrial conditions. With a 3/8-inch NPT air inlet, 1/2-inch (13 mm) minimum hose size, and a manufacturer-listed 18.1 CFM air consumption at load, this pneumatic grinder can be matched to an appropriately sized compressed air supply for fabrication shops, manufacturing facilities, and industrial maintenance operations.

Type: Extended Angle Pneumatic Grinder | Model: G3L086PP95 | Series: G3 Series | Rated Power: 1.35 HP (1.0 kW) | Maximum Free Speed: 8,600 RPM | Wheel Diameter: 5" (125 mm) | Spindle Thread: M14 | Configuration: Extended Angle | Exhaust: Rear | Weight: 5.07 lbs (2.3 kg) | Overall Length: 13" (330 mm) | Height Over Spindle End: 2.16" (55 mm) | Air Consumption at Load: 18.1 CFM (513 L/min) | Maximum Air Consumption: 26 L/s | Air Inlet: 3/8" NPT | Minimum Hose Size: 1/2" (13 mm) | Vibration: 5.0 m/s² (Uncertainty: 1.6 m/s²) | Sound Pressure: 84.0 dB(A)

Features:

• 1.35 HP (1.0 kW) vane motor provides pneumatic power for metal grinding, material removal, and surface preparation.
• 8,600 RPM maximum free speed supports grinding and finishing with compatible abrasive accessories rated for the tool's operating speed.
• 125 mm wheel diameter provides grinding coverage for weld cleanup, fabricated edges, and accessible metal surfaces.
• M14 threaded spindle accommodates appropriately rated grinding accessories and approved mounting hardware with a compatible metric connection.
• Extended-angle configuration provides additional reach for accessing recessed surfaces and grinding around surrounding equipment components.
• Rear exhaust directs discharged compressed air toward the back of the tool and away from the immediate grinding position.
• Lightweight composite housing and ergonomically shaped body provide a comfortable, secure handling surface during repeated grinding operations.
• G3 Series construction is built to withstand repeated drops, chemical spills, and harsh industrial working conditions.

Applications:

• Metal fabrication and welding: Grinding weld buildup, smoothing fabricated edges, and preparing metal surfaces for subsequent finishing operations.
• Structural steel and equipment fabrication: Cleaning welded assemblies and reaching grinding locations around brackets, frames, and surrounding structural components.
• Industrial machinery maintenance: Removing surface irregularities, cleaning mechanical components, and performing localized grinding during equipment servicing.
• Foundry and metal processing operations: Finishing accessible casting surfaces, removing minor casting imperfections, and preparing metal components.
• Heavy equipment and transportation workshops: Grinding suitable machinery components, smoothing repaired metal surfaces, and performing fabrication-related maintenance.
• Shipbuilding and industrial MRO: Cleaning welded metal assemblies and preparing accessible surfaces where an extended-angle grinder improves working reach.

FAQs:

• Q: What is the maximum operating speed of the Ingersoll Rand G3L086PP95?

  A: The G3L086PP95 operates at a maximum free speed of 8,600 RPM, not 86,000 RPM. This speed must be considered when selecting grinding wheels and other accessories. Every abrasive accessory must have a maximum operating speed rating equal to or greater than the tool's rated speed.

• Q: What grinding wheel size does the G3L086PP95 support?

  A: Ingersoll Rand specifies a 125 mm (approximately 5-inch) wheel diameter and an M14 threaded spindle. Use only grinding wheels or accessories approved for the tool's intended application, mounting arrangement, speed rating, and guarding requirements. Thread compatibility alone does not guarantee safe accessory fitment.

• Q: What is the benefit of the extended-angle configuration?

  A: The extended 330 mm body provides additional reach compared with shorter G3 angle grinder configurations. This can help operators access recessed grinding locations or work around surrounding components. Confirm adequate clearance for the wheel, guard, and tool body before starting work.

• Q: How much compressed air does the G3L086PP95 require?

  A: The manufacturer lists 18.1 CFM (513 L/min) air consumption at load and a separate maximum air consumption value of 26 L/s. The grinder uses a 3/8-inch NPT air inlet and requires a minimum 13 mm hose diameter. Select the compressed air system according to the required airflow, operating pressure, and expected duty cycle.

• Q: How does the G3L086PP95 differ from the G3A100PP96AV?

  A: Both grinders provide 1.35 HP rated power and an M14 threaded spindle. The G3L086PP95 features an extended 330 mm body, 125 mm wheel diameter, and 8,600 RPM free speed. The G3A100PP96AV has a shorter 245 mm body, 150 mm wheel diameter, and 10,000 RPM free speed. Choose according to access requirements, wheel size, and the intended grinding process.
