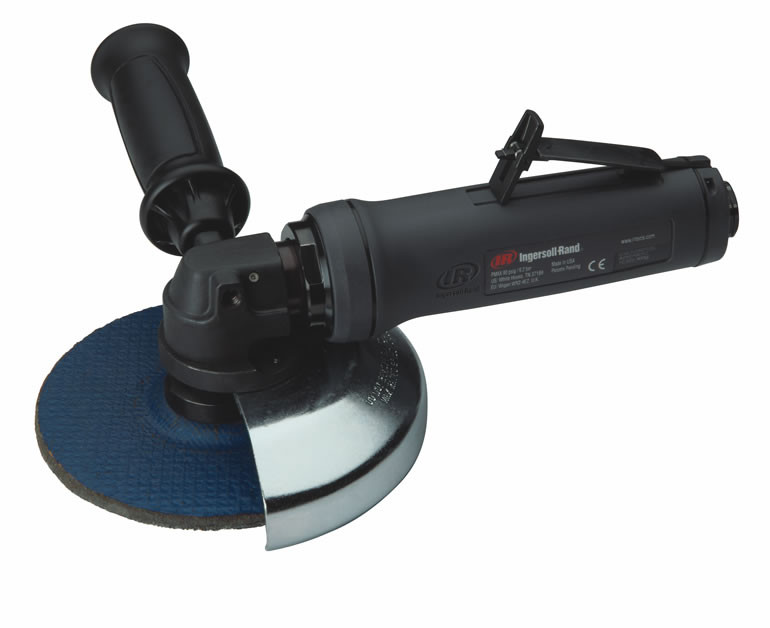

Ingersoll Rand G3A100PP96AV Air Angle Grinder | 1.35 HP | 10,000 RPM | M14 Thread | Rear Exhaust

For grinding welds, smoothing fabricated edges, and preparing large metal surfaces, the Ingersoll Rand G3A100PP96AV Air Angle Grinder delivers substantial pneumatic power for industrial fabrication and maintenance operations. As part of the G3 Series, this angle grinder features a powerful 1.35 HP (1.0 kW) vane motor and a 10,000 RPM maximum free speed for material removal with appropriately rated grinding wheels. Its 6-inch (150 mm) wheel capacity provides working coverage for weld cleanup, surface grinding, and metal preparation, while the M14 threaded spindle offers a standardized threaded mounting connection for approved grinding accessories. The angle-head configuration positions the grinding wheel perpendicular to the motor body, allowing operators to work across flat surfaces, along welded joints, and around fabricated structures.

The G3A100PP96AV combines a 9.65-inch (245 mm) overall length with a 5.11 lb (2.32 kg) tool weight, delivering a practical balance of grinding capacity and handling. Its lightweight composite housing and ergonomically shaped body support a secure grip during repeated grinding operations. The G3 Series construction is built to withstand repeated drops, chemical spills, and harsh working conditions encountered in industrial environments. With a 3/8-inch air inlet, a minimum hose diameter of 13 mm, and a maximum air consumption of 26 L/s, this grinder requires an adequately sized compressed air supply. Its manufacturer-reported 4.8 m/s² vibration level and 86.1 dB(A) sound pressure level also provide useful information for workplace safety assessments and grinding process planning.

Type: Pneumatic Angle Grinder | Model: G3A100PP96AV | Series: G3 Series | Rated Power: 1.35 HP (1.0 kW) | Maximum Free Speed: 10,000 RPM | Wheel Diameter: 6" (150 mm) | Spindle Thread: M14 | Configuration: Angle | Weight: 5.11 lbs (2.32 kg) | Overall Length: 9.65" (245 mm) | Air Inlet Diameter: 3/8" | Minimum Hose Diameter: 13 mm (approximately 1/2") | Maximum Air Consumption: 26 L/s (approximately 55.1 CFM) | Vibration Level: 4.8 m/s² | Vibration Uncertainty: 1.9 m/s² | Sound Pressure Level: 86.1 dB(A)

Features:

• Powerful vane motor provides 1.0 kW of rated power for grinding, material removal, and surface preparation in metalworking environments.
• 10,000 RPM maximum free speed supports operation with properly rated grinding wheels for weld cleanup and metal finishing.
• 6-inch wheel capacity provides working coverage for grinding fabricated metal components, welded joints, and accessible surface areas.
• M14 threaded spindle accommodates approved grinding accessories and mounting hardware with the appropriate threaded connection.
• Angle-head configuration supports wheel positioning when grinding flat surfaces, welded structures, and metal edges.
• Lightweight composite housing helps reduce overall tool weight while providing a comfortable handling surface.
• Ergonomically shaped body supports secure gripping and tool control during repeated grinding operations.
• G3 Series construction is built to withstand repeated drops, chemical spills, and harsh industrial working conditions.

Applications:

• Metal fabrication and welding: Grinding weld beads, smoothing welded joints, and preparing fabricated metal surfaces for subsequent finishing.
• Structural steel fabrication: Removing surface irregularities, cleaning accessible steel components, and refining edges after fabrication.
• Foundries and metal processing facilities: Grinding rough casting surfaces, removing accessible casting imperfections, and preparing metal components.
• Heavy equipment manufacturing: Finishing welded assemblies, smoothing fabricated brackets, and preparing machinery components during production.
• Shipbuilding and industrial fabrication: Performing weld cleanup and localized surface grinding on suitable metal structures.
• Industrial maintenance and MRO: Removing surface imperfections, cleaning replacement components, and preparing metal parts during equipment repair.

FAQs:

• Q: What grinding wheel size does the Ingersoll Rand G3A100PP96AV support?

  A: The manufacturer specifies a 150 mm (approximately 6-inch) wheel diameter. Use only grinding wheels approved for this grinder's wheel type, mounting arrangement, and guarding requirements. Every wheel must have a maximum operating speed rating of at least 10,000 RPM.

• Q: What does the M14 spindle specification mean?

  A: M14 identifies the metric threaded spindle used for attaching approved grinding accessories and mounting hardware. It is not a collet size. Confirm the accessory's thread pitch, wheel dimensions, mounting components, and suitability for the grinder before installation.

• Q: How much compressed air does the G3A100PP96AV require?

  A: Ingersoll Rand lists maximum air consumption at 26 L/s, approximately 55.1 CFM, along with a 3/8-inch air inlet and 13 mm minimum hose diameter. Select a compressor and compressed air distribution system capable of supporting the tool's airflow requirements at the manufacturer's recommended operating pressure.

• Q: How does the G3A100PP96AV compare with the G3A120PP95AV?

  A: Both models deliver 1.0 kW rated power and use M14 spindle connections. The G3A100PP96AV operates at 10,000 RPM with a 150 mm wheel, while the G3A120PP95AV operates at 12,000 RPM with a 125 mm wheel. The appropriate selection depends on required wheel diameter, accessory speed rating, and grinding access.

• Q: Can this angle grinder be used for weld removal and surface preparation?

  A: Yes. The grinder is suitable for metalworking tasks such as reducing weld buildup, cleaning fabricated surfaces, and removing localized material. Select an approved grinding wheel based on the workpiece material, desired finish, and tool operating speed. Use appropriate guards and protective equipment throughout the operation.
