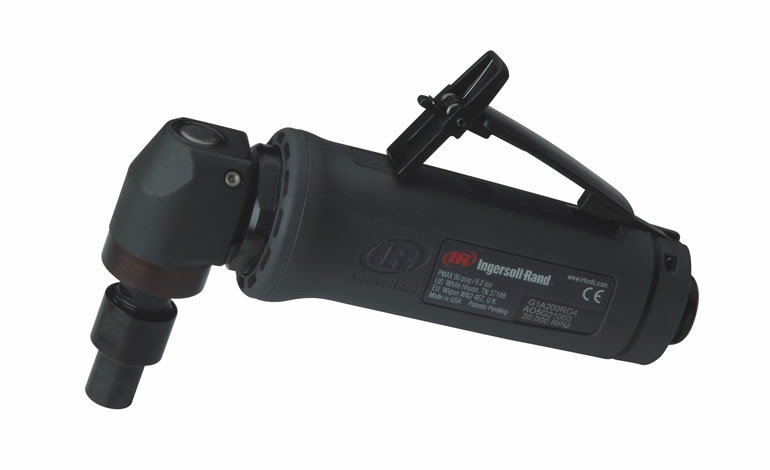

Ingersoll Rand G1A200PG4M Angle Air Die Grinder | 0.4 HP | 20,000 RPM | 6 (mm) Collet | Piped Away Exhaust

For deburring, surface preparation, and grinding in restricted work areas, the Ingersoll Rand G1A200PG4M Angle Air Die Grinder combines compact dimensions with the accessibility of an angled grinding head. Part of the G1 Series, this pneumatic die grinder delivers 0.4 HP (0.3 kW) rated power and a 20,000 RPM maximum free speed for light material removal, cleaning rough castings, and finishing welded or machined components. Its 6 mm collet accepts compatible metric-shank grinding accessories, while the piped-away exhaust configuration allows discharged compressed air to be routed away from the immediate work area. Unlike a straight die grinder, the angle-head arrangement positions the grinding accessory perpendicular to the main tool body, providing improved access around obstructions and into confined metal assemblies.

The G1A200PG4M measures 5.98 inches (152 mm) in overall length and weighs 1.10 lbs (0.50 kg), making it a practical option for localized grinding where a larger tool may be difficult to position. Its ergonomically shaped D-style grip provides a comfortable holding surface during repeated finishing operations. G1 Series construction is made to withstand repeated drops, harsh chemicals, and challenging work environments, while one-nut access for motor servicing simplifies maintenance. With 25 CFM air consumption at load, a 1/4-inch air inlet, and an 8 mm minimum hose size, the grinder can be matched to a properly sized compressed air system for manufacturing, fabrication, and industrial maintenance operations.

Type: Angle Pneumatic Die Grinder | Model: G1A200PG4M | Series: G1 Series | Rated Power: 0.4 HP (0.3 kW) | Maximum Free Speed: 20,000 RPM | Collet Size: 6 mm | Configuration: Angle | Exhaust: Piped Away | Weight: 1.10 lbs (0.50 kg) | Overall Length: 5.98" (152 mm) | Air Consumption at Load: 25 CFM (708 L/min) | Air Inlet Size: 1/4" | Minimum Hose Size: 0.31" (8 mm) | Vibration: 5.6 m/s² (Uncertainty: 1.1 m/s²)

Features:

• Angle-head configuration improves access to metal surfaces in confined spaces and around surrounding components where straight grinders can be difficult to position.
• 0.4 HP (0.3 kW) rated power supports light material removal, rough casting cleanup, deburring, and localized surface finishing.
• 20,000 RPM maximum free speed supports grinding and finishing with appropriately rated carbide burrs and mounted abrasive accessories.
• 6 mm collet accepts compatible metric-shank accessories for detailed grinding and precision edge finishing.
• Piped-away exhaust allows discharged compressed air to be routed away from the immediate working area through a suitable exhaust arrangement.
• Lightweight, compact construction supports maneuverability when grinding small components and accessing restricted work surfaces.
• Ergonomically shaped D-style grip provides a comfortable handling surface during repeated grinding operations.
• Durable G1 Series construction withstands repeated drops, harsh chemicals, and challenging industrial conditions, while one-nut access simplifies motor servicing.

Applications:

• Metal fabrication and welding: Cleaning weld edges, removing minor weld irregularities, and finishing metal surfaces where an angled grinding head improves access.
• Tool and die workshops: Deburring machined features, refining metal profiles, and cleaning accessible recessed areas using compatible grinding accessories.
• Foundry and casting operations: Removing casting flash, smoothing rough surfaces, and cleaning casting features that are difficult to reach with straight grinders.
• Automotive and heavy equipment maintenance: Performing localized grinding, removing sharp edges, and preparing suitable metal components during repair work.
• Industrial manufacturing: Deburring fabricated parts, finishing mechanical components, and preparing metal surfaces before assembly.
• General maintenance and MRO: Cleaning machine components, removing minor surface imperfections, and performing controlled grinding in restricted work areas.

FAQs:

• Q: What is the advantage of the angle-head configuration on the Ingersoll Rand G1A200PG4M?

  A: The angle-head configuration positions the grinding accessory at an angle to the main tool body, improving access around obstructions and within confined assemblies. This makes the grinder useful for localized metal finishing where a straight-body die grinder may be difficult to position.

• Q: What grinding accessories fit the G1A200PG4M?

  A: The grinder uses a 6 mm collet for compatible metric-shank accessories, including suitable carbide burrs and mounted grinding points. Accessories must be approved for angle die grinder operation and rated for at least 20,000 RPM. Follow the accessory manufacturer's requirements for shank engagement, diameter, and permitted overhang.

• Q: How much compressed air does the G1A200PG4M require?

  A: Ingersoll Rand specifies 25 CFM (708 L/min) air consumption at load, a 1/4-inch air inlet, and an 8 mm minimum hose diameter. Select a compressed air system capable of providing the required airflow at the manufacturer's recommended operating pressure, accounting for other tools operating on the same supply.

• Q: What does piped-away exhaust mean?

  A: Piped-away exhaust allows discharged compressed air to be directed through a suitable exhaust routing arrangement instead of being released directly near the grinding location. This can help manage exhaust airflow around the operator and workpiece. It does not provide dust extraction or replace appropriate workplace ventilation.

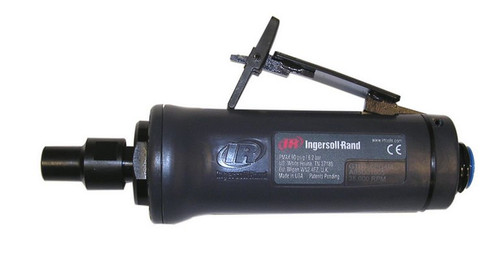

• Q: How does the G1A200PG4M differ from the G1H200PG4M?

  A: Both models feature 0.4 HP rated power, 20,000 RPM maximum free speed, a 6 mm collet, and piped-away exhaust. The G1A200PG4M uses an angle-head configuration for access around obstructions, while the G1H200PG4M has a straight-body configuration for grinding along the tool's axis. Choose the arrangement that provides better access and control for the workpiece.
