Built for precision fastening in electronics assembly, appliance manufacturing, and other controlled production environments, the Ingersoll Rand ES50TC inline electric screwdriver delivers a 0.4–9.0 in-lbs torque range with a 500–650 RPM operating speed to help achieve consistent fastening results on low-torque threaded assemblies. Its inline configuration keeps the driving force aligned with the fastener for improved control, while the shut-off clutch (automatically disengaging when the preset torque is reached) helps reduce overtightening and improve fastening repeatability.
Designed for repetitive assembly applications, the ES50TC combines a lightweight inline design with a 1/4" hex quick-change bit holder for rapid bit changes and efficient workstation productivity. The low-torque output makes it well suited for fastening delicate components where torque accuracy is more important than maximum driving power.
Type: Inline Electric Screwdriver | Model: ES50TC | Configuration: Inline | Torque Range: 0.4–9.0 in-lbs | Free Speed: 500–650 RPM | Bit Holder: 1/4" Hex Quick Change
|
Features:
|
|
Made in USA:
Applications:
- Electronics assembly and component fastening.
- Appliance and consumer product manufacturing.
- Medical device and precision instrument assembly.
- Light manufacturing production cells performing repetitive fastening tasks.
- Bench assembly operations requiring accurate low-torque screw installation.
FAQs:
- Q: What type of applications is the ES50TC intended for?
A: The ES50TC is intended for precision, low-torque fastening applications where repeatable torque control is important. - Q: What size bits does this screwdriver accept?
A: It uses a standard 1/4-inch hex quick-change bit holder for compatible screwdriver bits. - Q: What is the benefit of a shut-off clutch?
A: A shut-off clutch automatically stops driving when the preset torque is reached, helping improve consistency and reduce the risk of overtightening. - Q: Is this tool suitable for heavy-duty fastening?
A: No. The ES50TC is designed for controlled, low-torque assembly applications rather than high-torque fastening.
| SKU | Voltage | Torque Range | Free Speed | Weight | Length | Drive | Controller Required | |
|---|---|---|---|---|---|---|---|---|
| V | IN-LBS (NM) | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN | ||
| Inline Lever Start | ||||||||

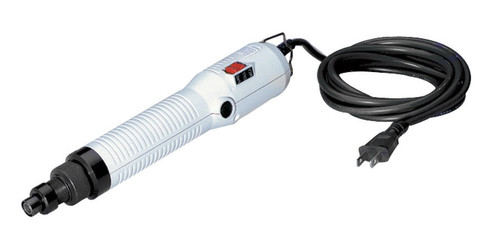

| ES45T | 24 V DC | 0.5 – 4.7 (0.06 – 0.53) | 1.7 – 6.0 (0.19 – 0.68) | 600 – 900 | 0.75 (0.34) | 8.87" (225) | 1/4" | ESCB50 |
| ES50T | 24 V DC | 0.4 – 4.7 (0.05 – 0.53) | 2.0 – 9.0 (0.23 – 1.02) | 500 – 650 | 0.75 (0.34) | 8.88" (226) | 1/4" | ESCB50 |
| Inline Clean Room Lever Start | ||||||||
| ES50TC | 24 V DC | 0.4 – 4.7 (0.05 – 0.53) | 2.0 – 9.0 (0.23 – 1.02) | 500 – 650 | 0.88 (0.40) | 10.50" (267) | 1/4" | ESCB50 |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Screwdriver
- Grip Style
- Inline
- Actuation
- Lever Start
- Voltage
- 24 VDC
- Torque Range (Nm)
- 0.05 - 1.02
- Torque Range (in-lbs)
- 0.4 - 9.0
- RPM
- 500 - 650
- Length (in.)
- 10.5
- Length (mm)
- 267
- Side to Center (mm)
- 19.8
- Side to Center (in.)
- 0.78
- Spindle Size (in.)
- 1/4
- Drive Type
- Hex Quick Change
