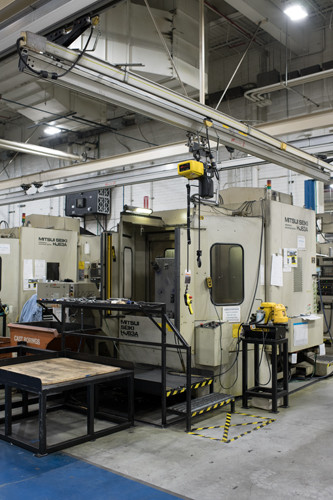

Ingersoll Rand ELK50-2NS100-1PHH-10-6-1CF15 ELK Series Electric Chain Hoist | 1 Ton Capacity | 10 ft Lift | 6 ft Drop | Hook Suspension | Pendent Control

Ingersoll Rand ELK50-2NS100-1PHH-10-6-1CF15 ELK Series Electric Chain Hoist is designed for dependable overhead lifting in industrial production, maintenance, and material handling applications requiring a 1 Ton (2,200 lbs) lifting capacity. Featuring a 10 ft lift, 6 ft pendent drop, hook suspension, and pendent control, this electric chain hoist delivers smooth, controlled lifting for precise load positioning in demanding work environments.

Built on the ELK50-2NS100 1 ph platform, this single-phase electric chain hoist utilizes a two-fall load chain configuration to provide stable lifting performance. With an 8 ft/min lifting speed, 20.8 in headroom, and H4 (2m) duty rating, it is well suited for frequent lifting operations in manufacturing facilities, maintenance departments, fabrication shops, and warehouses.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK50-2NS100-1PHH-10-6-1CF15 | SKU: 47761425001 | Capacity: 1 Ton (2,200 lbs) | Power Supply: Single Phase 115/230V | Lift: 10 ft | Pendent Drop: 6 ft | Suspension: Hook | Control Type: Pendent Control | Lifting Speed: 8 ft/min (2.5 m/min) | Duty Rating: H4 (2m) | Falls: 2 | Headroom: 20.8 in (528 mm) | Body Weight: 61.7 lbs (28 kg) | Chain Weight: 0.46 lb/ft (0.69 kg/m)

Features:

• 1 ton (2,200 lbs) lifting capacity for medium-duty industrial material handling.
• Single-phase electric operation for facilities with 115/230V power.
• 8 ft/min lifting speed provides controlled load handling and accurate positioning.
• Two-fall load chain configuration enhances lifting stability.
• 10 ft lift accommodates a wide variety of overhead lifting applications.
• 6 ft pendent drop allows convenient operation from floor level.
• Hook suspension enables quick attachment to compatible overhead support structures.
• Pendent control provides responsive raising and lowering of suspended loads.
• H4 (2m) duty classification supports frequent industrial lifting service.
• Compact ELK Series construction is ideal for manufacturing, maintenance, and warehouse environments.

Made in USA:

Applications:

• Manufacturing facilities.
• Assembly operations.
• Warehouse material handling.
• Maintenance and repair departments.
• Machine installation and servicing.
• General industrial overhead lifting.

FAQs:

• Q: What is the rated lifting capacity of this hoist?
  A: This model is rated for 1 Ton (2,200 lbs).
• Q: What is the lifting speed?
  A: The hoist lifts at 8 ft/min (2.5 m/min).
• Q: How many chain falls does this hoist use?
  A: This model uses a two-fall load chain configuration.
• Q: What is the headroom of this hoist?
  A: The headroom is 20.8 inches (528 mm).
• Q: What type of suspension does this hoist use?
  A: This model features hook suspension for installation on compatible overhead lifting structures.
• Q: What duty classification does this hoist have?
  A: It carries an H4 (2m) duty rating for frequent industrial lifting applications.

Looking for more information about Ingersoll Rand Electric Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
