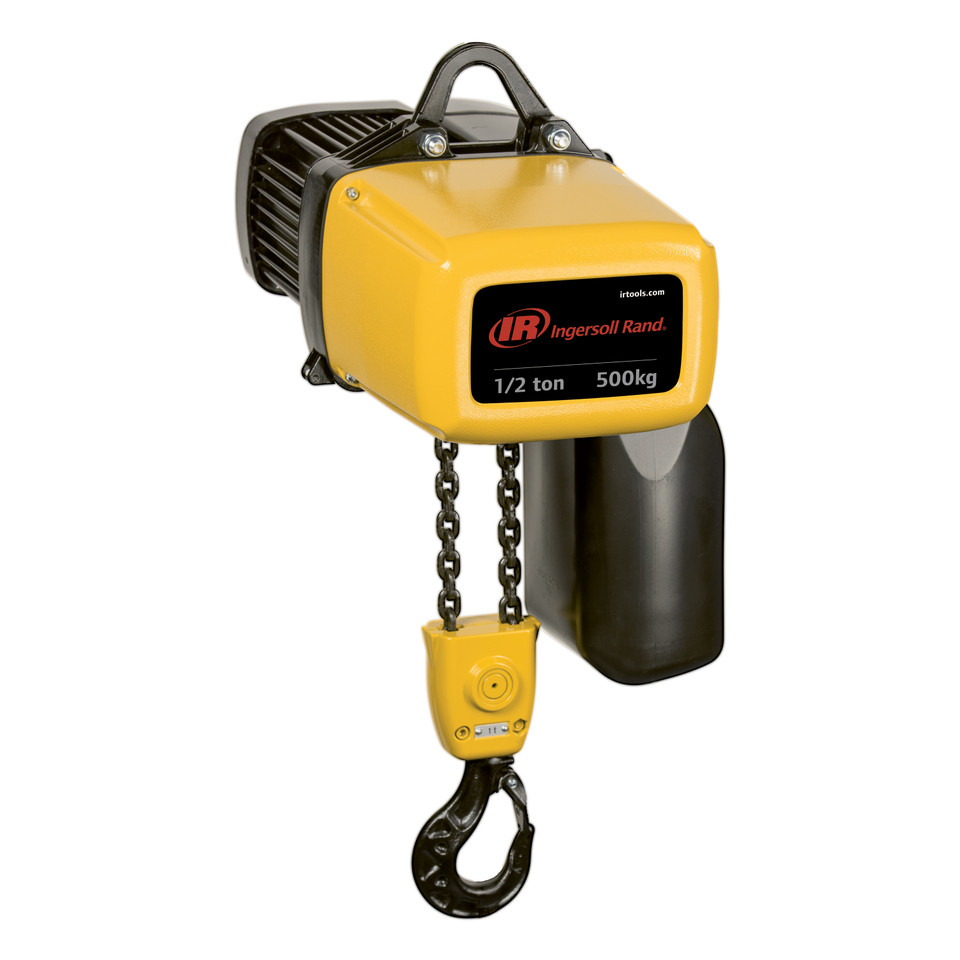

Ingersoll Rand ELK50-1NS50-1PHP-30-12-A1CF15 ELK Series Electric Chain Hoist | 1/2 Ton Capacity | 30 ft Lift | 12 ft Drop | Plain Trolley | Pendent Control

Ingersoll Rand ELK50-1NS50-1PHP-30-12-A1CF15 ELK Series Electric Chain Hoist is designed to provide dependable overhead lifting for manufacturing, maintenance, and material handling applications requiring a 1/2 Ton (1,100 lbs) lifting capacity. Equipped with a 30 ft lift, 12 ft pendent drop, plain trolley suspension, and pendent control, this electric chain hoist offers smooth vertical lifting and manual horizontal travel for efficient load positioning in industrial environments.

Built on the ELK50-1NS50 1 ph platform, this single-phase electric chain hoist features a single-fall load chain configuration for dependable lifting performance. According to the Ingersoll Rand ELK Series catalog, the hoist delivers a lifting speed of 16 ft/min (5 m/min), an H4 (2m) duty rating, and a compact 19.2 in (488 mm) headroom. The manually operated plain trolley allows smooth travel along compatible beam systems, making this model well suited for production lines, maintenance departments, warehouses, and fabrication shops.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK50-1NS50-1PHP-30-12-A1CF15 | SKU: 47653528001 | Capacity: 1/2 Ton (1,100 lbs) | Power Supply: Single Phase 115/230V | Lift: 30 ft | Pendent Drop: 12 ft | Suspension: Plain Trolley | Control Type: Pendent Control | Lifting Speed: 16 ft/min (5 m/min) | Duty Rating: H4 (2m) | Falls: 1 | Headroom: 19.2 in (488 mm) | Body Weight: 57.3 lbs (26 kg) | Chain Weight: 0.46 lb/ft (0.69 kg/m)

Features:

• Rated lifting capacity of 1/2 ton (1,100 lbs) for industrial material handling applications.
• Single-phase 115/230V operation for facilities without three-phase power.
• 16 ft/min lifting speed provides efficient load handling.
• Single-fall load chain configuration delivers dependable lifting performance.
• 30 ft lift accommodates elevated workstations and extended lifting requirements.
• 12 ft pendent drop provides comfortable operator access.
• Plain trolley allows smooth manual travel along compatible overhead beam systems.
• Pendent control enables accurate raising and lowering of suspended loads.
• H4 (2m) duty classification supports frequent industrial lifting operations.
• Compact ELK Series construction is suitable for manufacturing, maintenance, warehouse, and assembly applications.

Made in USA:

Applications:

• Manufacturing facilities.
• Assembly operations.
• Warehouse material handling.
• Maintenance and repair departments.
• Machine installation and servicing.
• General industrial overhead lifting requiring manual trolley travel.

FAQs:

• Q: What is the rated lifting capacity of this hoist?
  A: This model is rated for 1/2 ton (1,100 lbs).
• Q: What lifting speed does this hoist provide?
  A: The hoist lifts at 16 ft/min (5 m/min).
• Q: How many chain falls does this hoist use?
  A: This model uses a single-fall load chain configuration.
• Q: What is the headroom of this hoist?
  A: The headroom is 19.2 inches (488 mm).
• Q: What type of trolley does this hoist use?
  A: It is equipped with a manually operated plain trolley for horizontal travel along compatible beam systems.
• Q: What duty classification does this hoist have?
  A: This model carries an H4 (2m) duty rating for frequent industrial lifting service.

Looking for more information about Ingersoll Rand Electric Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
