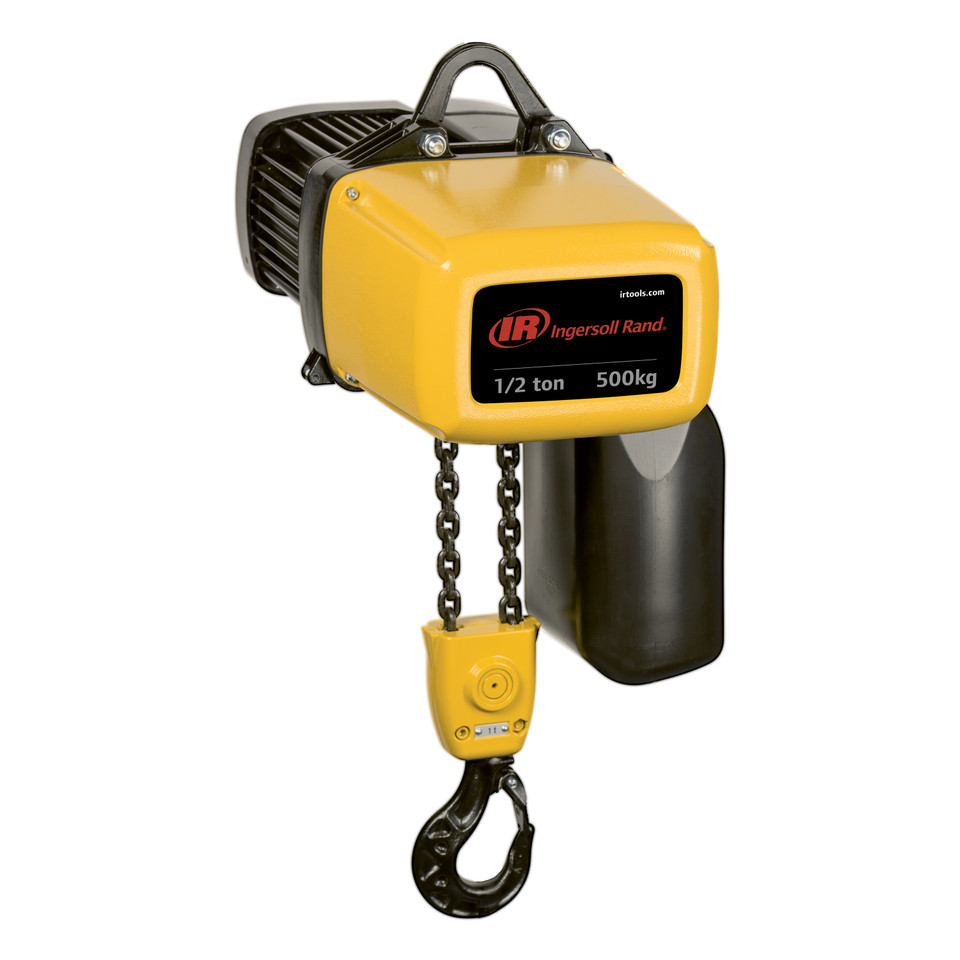

Ingersoll Rand ELK50-1ND50P-20-16-4CF15 ELK Series Electric Chain Hoist | 1/2 Ton Capacity | 20 ft Lift | 16 ft Drop | Plain Trolley | Pendent Control

Ingersoll Rand ELK50-1ND50P-20-16-4CF15 ELK Series Electric Chain Hoist delivers dependable electric lifting performance for production, maintenance, and material handling applications requiring a 1/2 Ton (1,100 lbs) lifting capacity. Configured with a 20 ft lift, 16 ft pendent drop, plain trolley, and pendent control, this hoist provides smooth vertical lifting and manual horizontal travel for accurate load positioning in industrial environments.

Part of the Ingersoll Rand ELK Series, this electric chain hoist combines reliable lifting performance with a manually operated plain trolley for easy movement along compatible beam systems. The dual-speed lifting mechanism allows efficient material handling while maintaining precise control during positioning, making it well suited for manufacturing facilities, maintenance operations, warehouses, and assembly applications.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK50-1ND50P-20-16-4CF15 | SKU: 47661371001 | Capacity: 1/2 Ton (1,100 lbs) | Lift: 20 ft | Pendent Drop: 16 ft | Suspension: Plain Trolley | Control Type: Pendent Control | Lifting Speed: 32/8 ft/min | Duty Rating: H4 (2m) | Headroom: 19.2 in.

Features:

• Rated lifting capacity of 1/2 ton (1,100 lbs) for industrial material handling applications.
• Dual lifting speeds of 32/8 ft/min provide efficient lifting with precise load positioning.
• 20 ft lift accommodates elevated workstations and increased lifting heights.
• 16 ft pendent drop allows comfortable operation from floor level.
• Plain trolley enables smooth manual travel along compatible overhead beam systems.
• Pendent control provides accurate lifting and lowering of suspended loads.
• Compact ELK Series construction simplifies installation while maximizing available workspace.
• H4 (2m) duty classification supports frequent industrial lifting applications.
• Designed for dependable operation in manufacturing, maintenance, warehouse, and assembly environments.

Made in USA:

Applications:

• Manufacturing facilities.
• Assembly operations.
• Warehouse material handling.
• Maintenance and repair departments.
• Machine installation and servicing.
• General industrial overhead lifting with manual trolley travel.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: This model is rated for 1/2 ton (1,100 lbs).
• Q: What advantage does the plain trolley provide?
  A: The plain trolley allows the hoist to be moved manually along a compatible beam for flexible load positioning.
• Q: What does the 20 ft lift specification indicate?
  A: It represents the maximum vertical travel of the load hook.
• Q: Why does this hoist have a 16 ft pendent drop?
  A: The extended pendent drop allows comfortable operation from floor level when the hoist is installed at greater heights.
• Q: What lifting speed does this hoist provide?
  A: This ELK50 model provides dual lifting speeds of 32/8 ft/min for efficient lifting and precise positioning.
• Q: What duty classification does this hoist have?
  A: It is rated H4 (2m), making it suitable for frequent industrial lifting operations.

Looking for more information about Ingersoll Rand Electric Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
