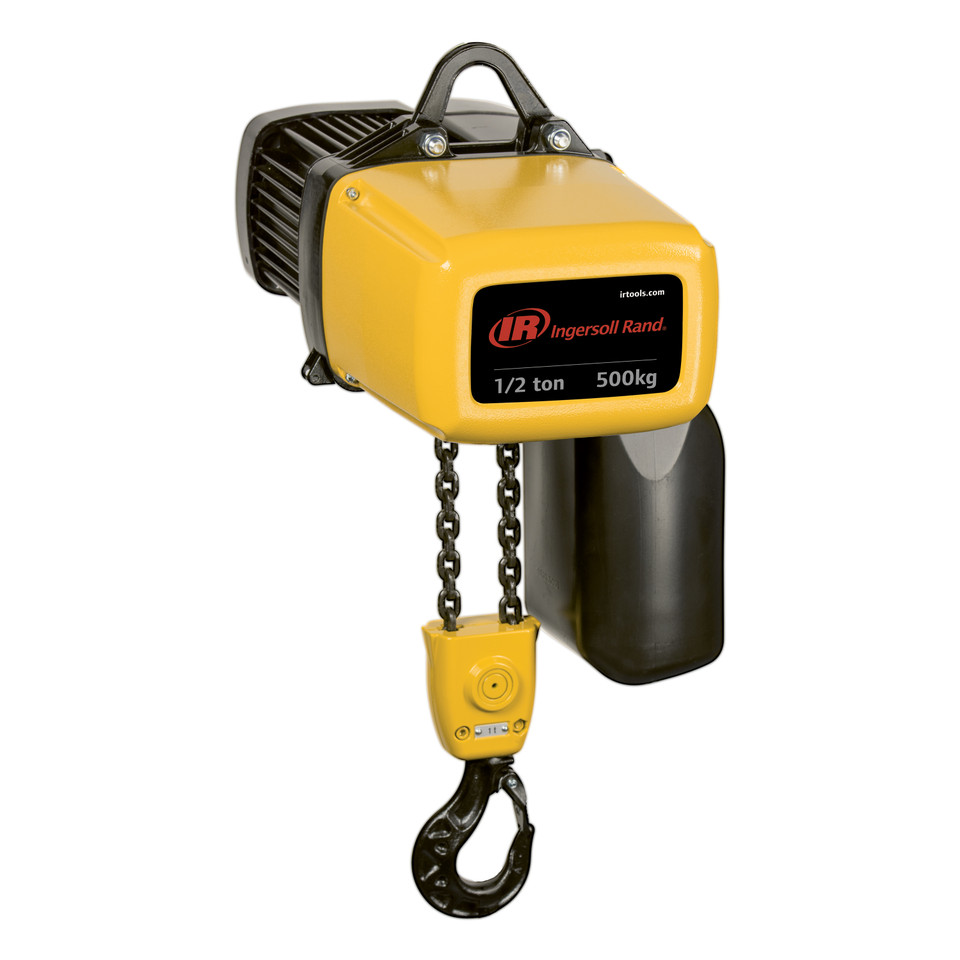

Ingersoll Rand ELK50-1ND50P-10-6A4CF15 ELK Series Electric Chain Hoist | 1/2 Ton Capacity | 10 ft Lift | 6 ft Drop | Plain Trolley | Pendent Control

Ingersoll Rand ELK50-1ND50P-10-6A4CF15 ELK Series Electric Chain Hoist delivers dependable electric lifting performance for production, maintenance, and material handling applications requiring a 1/2 Ton (1,100 lbs) lifting capacity. Configured with a 10 ft lift, 6 ft pendent drop, plain trolley, and pendent control, this hoist provides smooth vertical lifting and manual horizontal travel for accurate load positioning in industrial environments.

Part of the Ingersoll Rand ELK Series, this electric chain hoist combines reliable lifting performance with a manually operated plain trolley for convenient movement along compatible beam systems. Its dual-speed lifting capability improves productivity while maintaining precise control during positioning, making it well suited for manufacturing facilities, warehouses, maintenance departments, and assembly operations.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK50-1ND50P-10-6A4CF15 | SKU: 47664503001 | Capacity: 1/2 Ton (1,100 lbs) | Lift: 10 ft | Pendent Drop: 6 ft | Suspension: Plain Trolley | Control Type: Pendent Control | Lifting Speed: 32/8 ft/min | Duty Rating: H4 (2m) | Headroom: 19.2 in.

Features:

• Rated lifting capacity of 1/2 ton (1,100 lbs) for industrial material handling applications.
• Dual lifting speeds of 32/8 ft/min provide efficient lifting with precise load positioning.
• 10 ft lift height supports a wide range of production, maintenance, and assembly operations.
• 6 ft pendent drop provides comfortable operator access from floor level.
• Plain trolley enables smooth manual movement along compatible overhead beam systems.
• Pendent control delivers responsive and accurate lifting and lowering of suspended loads.
• Compact ELK Series construction maximizes available workspace while simplifying installation.
• H4 (2m) duty classification supports frequent industrial lifting operations.
• Designed for dependable performance in manufacturing, warehouse, maintenance, and assembly environments.

Made in USA:

Applications:

• Manufacturing facilities.
• Assembly operations.
• Warehouse material handling.
• Maintenance and repair departments.
• Machine installation and servicing.
• General industrial overhead lifting with manual trolley travel.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: This model is rated for 1/2 ton (1,100 lbs).
• Q: What advantage does the plain trolley provide?
  A: The plain trolley allows the hoist to be moved manually along a compatible beam, providing flexible horizontal load positioning.
• Q: What does the 10 ft lift specification indicate?
  A: It represents the maximum vertical travel of the load hook.
• Q: Why does this hoist have a 6 ft pendent drop?
  A: The 6 ft pendent drop provides comfortable access to the control station when the hoist is installed overhead.
• Q: What lifting speed does this hoist provide?
  A: This ELK50 model features dual lifting speeds of 32/8 ft/min for efficient lifting and precise positioning.
• Q: What duty classification does this hoist have?
  A: It is rated H4 (2m), making it suitable for frequent industrial lifting operations.

Looking for more information about Ingersoll Rand Electric Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
