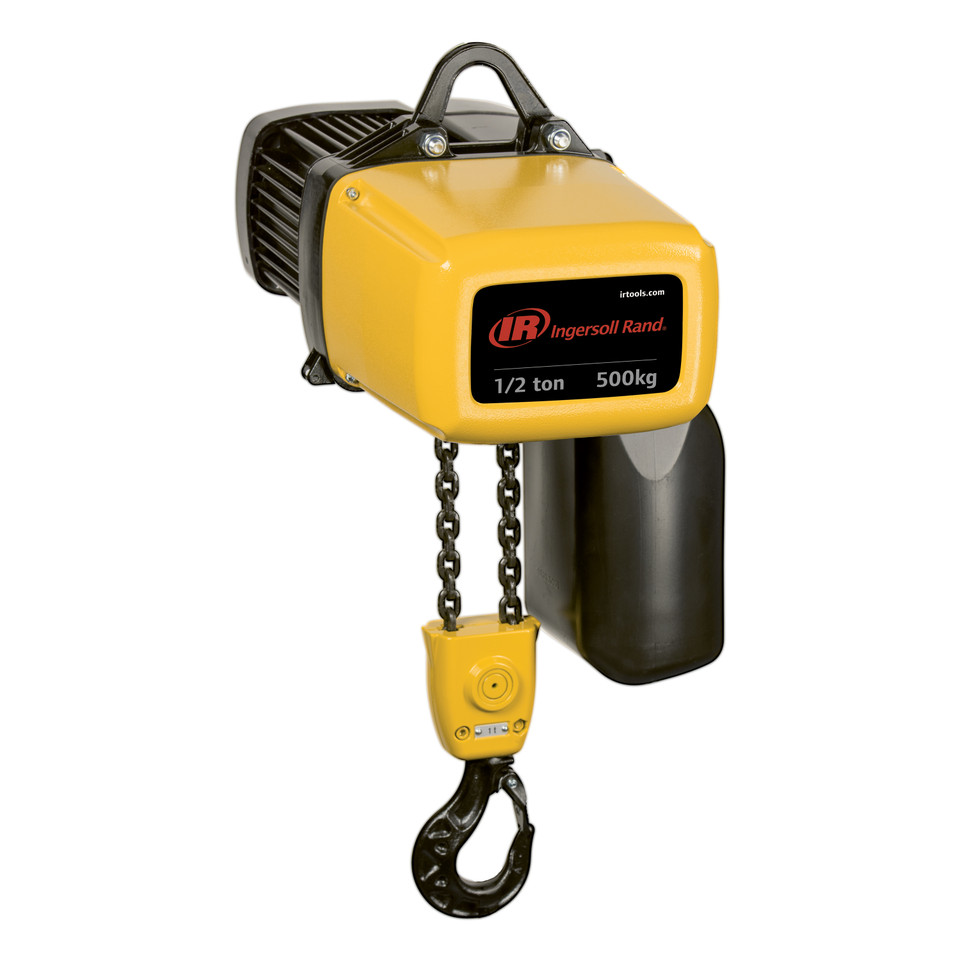

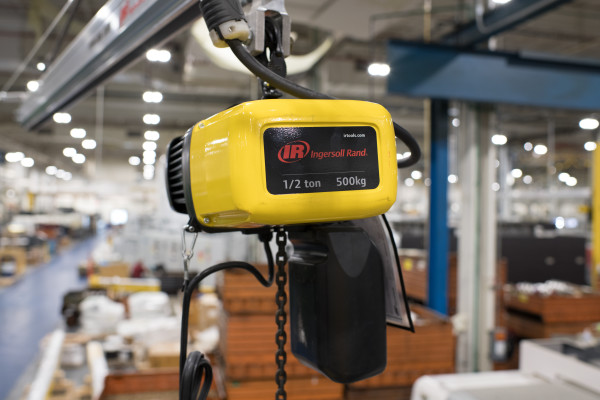

Ingersoll Rand ELK50-1ND50P-10-6-A5CF15 ELK Series Electric Chain Hoist | 1/2 Ton Capacity | 10 ft Lift | 6 ft Drop | Plain Trolley | Pendent Control

Ingersoll Rand ELK50-1ND50P-10-6-A5CF15 ELK Series Electric Chain Hoist delivers dependable electric lifting performance for production, maintenance, and material handling applications requiring a 1/2 Ton (1,100 lbs) lifting capacity. Configured with a 10 ft lift, 6 ft pendent drop, plain trolley, and pendent control, this hoist provides smooth vertical lifting together with manual horizontal travel for accurate load positioning in demanding industrial environments.

Part of the Ingersoll Rand ELK Series, this electric chain hoist combines reliable lifting performance with a manually operated plain trolley for effortless movement along compatible beam systems. Its dual-speed lifting capability enhances productivity while maintaining precise control during load handling, making it ideal for manufacturing plants, maintenance facilities, warehouses, fabrication shops, and assembly operations.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK50-1ND50P-10-6-A5CF15 | SKU: 47761422001 | Capacity: 1/2 Ton (1,100 lbs) | Lift: 10 ft | Pendent Drop: 6 ft | Suspension: Plain Trolley | Control Type: Pendent Control | Lifting Speed: 32/8 ft/min | Duty Rating: H4 (2m) | Headroom: 19.2 in.

Features:

• Rated lifting capacity of 1/2 ton (1,100 lbs) for industrial material handling.
• Dual lifting speeds of 32/8 ft/min provide efficient lifting and precise load positioning.
• 10 ft lift height accommodates a wide range of production and maintenance applications.
• 6 ft pendent drop allows comfortable floor-level operation.
• Plain trolley enables smooth manual travel along compatible overhead beam systems.
• Pendent control delivers accurate raising and lowering of suspended loads.
• Compact ELK Series construction simplifies installation while maximizing usable workspace.
• H4 (2m) duty classification supports frequent industrial lifting operations.
• Designed for dependable service in manufacturing, maintenance, warehouse, and assembly environments.

Made in USA:

Applications:

• Manufacturing facilities.
• Assembly lines.
• Warehouse material handling.
• Maintenance and repair operations.
• Machine installation and servicing.
• General industrial overhead lifting requiring manual trolley travel.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: This model is rated for 1/2 ton (1,100 lbs).
• Q: What is the benefit of the plain trolley?
  A: The plain trolley allows the hoist to be moved manually along a compatible beam for flexible horizontal load positioning.
• Q: What does the 10 ft lift specification mean?
  A: It indicates the maximum vertical travel of the load hook.
• Q: Why is the pendent drop 6 ft?
  A: The 6 ft pendent drop positions the control station at a comfortable operating height below the hoist.
• Q: What lifting speed does this hoist provide?
  A: This ELK50 model provides dual lifting speeds of 32/8 ft/min for efficient lifting and controlled positioning.
• Q: What duty classification does this hoist have?
  A: It is rated H4 (2m), making it suitable for frequent industrial lifting service.

Looking for more information about Ingersoll Rand Electric Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
