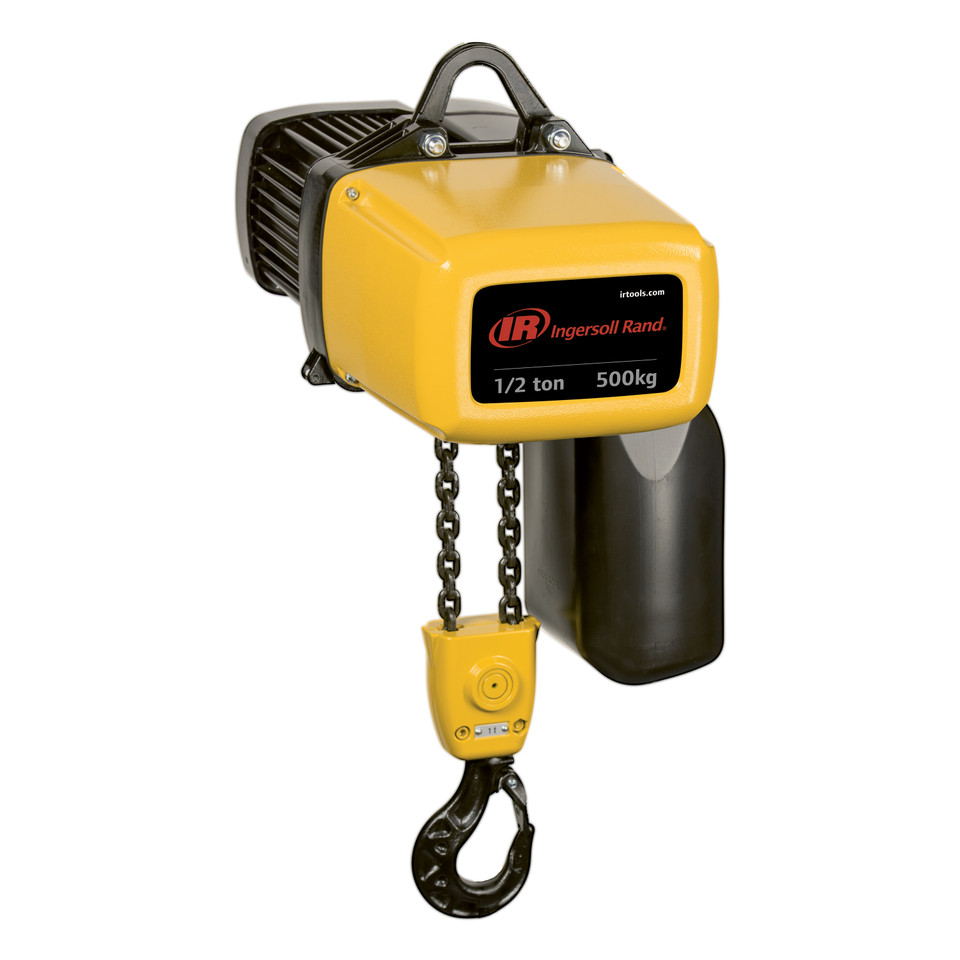

Ingersoll Rand ELK50-1ND50H-10-6-4F15 ELK Series Electric Chain Hoist | 1/2 Ton Capacity | 10 ft Lift | 6 ft Drop | Hook Suspension | Pendent Control

Ingersoll Rand ELK50-1ND50H-10-6-4F15 ELK Series Electric Chain Hoist delivers dependable electric lifting performance for production, maintenance, and material handling applications requiring a 1/2 Ton (1,100 lbs) lifting capacity. Equipped with a 10 ft lift, 6 ft pendent drop, hook suspension, and pendent control, this hoist is designed for smooth, accurate load positioning in manufacturing facilities, warehouses, maintenance shops, and other industrial environments. Built on the ELK50 platform, it provides reliable dual-speed lifting performance for improved productivity and precise load handling.

Designed for demanding industrial service, this ELK Series electric chain hoist features a compact construction, H4 (2m) duty classification, and hook suspension for quick installation on compatible overhead support structures. The ergonomic pendent control allows operators to safely raise and lower loads while maintaining precise control throughout the lifting cycle.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK50-1ND50H-10-6-4F15 | SKU: 47669202001 | Capacity: 1/2 Ton (1,100 lbs) | Lift: 10 ft | Pendent Drop: 6 ft | Suspension: Hook | Control Type: Pendent Control | Lifting Speed: 32/8 ft/min | Duty Rating: H4 (2m) | Headroom: 19.2 in.

Features:

• Rated lifting capacity of 1/2 ton (1,100 lbs) for industrial material handling applications.
• Dual lifting speeds of 32/8 ft/min provide efficient lifting with precise load positioning.
• 10 ft lift height supports production, maintenance, and assembly operations.
• 6 ft pendent drop provides comfortable operator access from floor level.
• Hook suspension enables quick installation on compatible overhead support structures.
• Pendent control delivers smooth, responsive lifting and lowering of suspended loads.
• Compact ELK Series construction maximizes available workspace while simplifying installation.
• H4 (2m) duty classification supports frequent industrial lifting applications.
• Designed for dependable operation in manufacturing, warehouse, maintenance, and assembly environments.

Made in USA:

Applications:

• Manufacturing facilities.
• Assembly operations.
• Warehouse material handling.
• Maintenance and repair departments.
• Machine installation and servicing.
• General industrial overhead lifting.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: This model is rated for 1/2 ton (1,100 lbs).
• Q: What lifting speed does this hoist provide?
  A: This ELK50 model features dual lifting speeds of 32/8 ft/min for efficient lifting and precise positioning.
• Q: What does the 10 ft lift specification indicate?
  A: It represents the maximum vertical travel of the load hook.
• Q: Why does this hoist have a 6 ft pendent drop?
  A: The 6 ft pendent drop provides comfortable access to the control station when the hoist is installed overhead.
• Q: How is this hoist mounted?
  A: This model features a hook suspension for attachment to a compatible overhead support structure.
• Q: What duty classification does this hoist have?
  A: It is rated H4 (2m), making it suitable for frequent industrial lifting operations.

Looking for more information about Ingersoll Rand Electric Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
