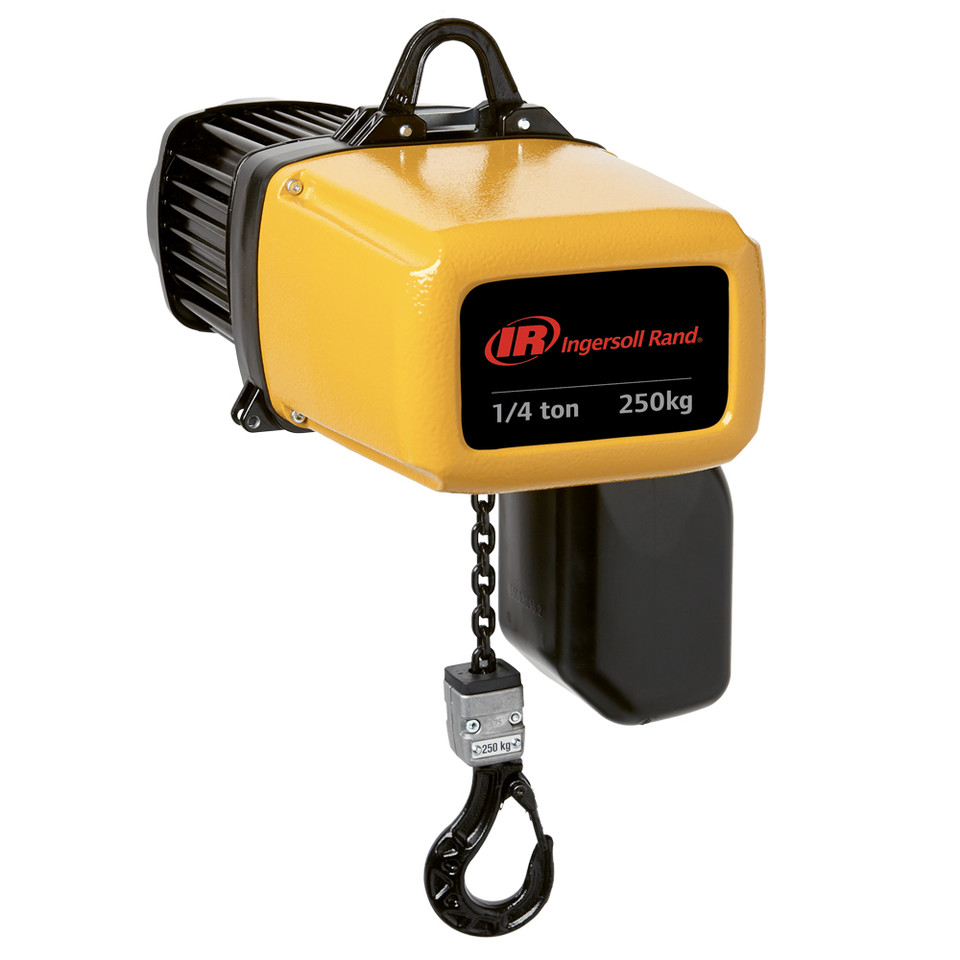

Ingersoll Rand ELK50-1HD25H-10-11-3CF30 ELK Series Electric Chain Hoist | 1/4 Ton Capacity | 10 ft Lift | 11 ft Drop | Hook Suspension | Pendent Control

Ingersoll Rand ELK50-1HD25H-10-11-3CF30 ELK Series Electric Chain Hoist is engineered for reliable overhead lifting in production, assembly, and maintenance applications requiring a 1/4 Ton (550 lbs) lifting capacity. Equipped with a 10 ft lift, 11 ft pendent drop, hook suspension, and pendent control, this electric chain hoist delivers fast lifting speeds with smooth, precise load positioning for demanding industrial environments.

Built on the ELK50-1HD25 three-phase platform, this hoist features a single-fall load chain configuration that provides efficient lifting performance while maintaining compact dimensions. According to the Ingersoll Rand ELK Series catalog, the base model offers 63/16 ft/min (19.5/5 m/min) dual lifting speeds, an H4 (2m) duty rating, and a compact 19.2 in (488 mm) headroom, making it ideal for manufacturing facilities, fabrication shops, maintenance departments, and warehouse operations.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK50-1HD25H-10-11-3CF30 | SKU: 47692789001 | Capacity: 1/4 Ton (550 lbs) | Power Supply: Three Phase 230/460/575/380V | Lift: 10 ft | Pendent Drop: 11 ft | Suspension: Hook | Control Type: Pendent Control | Lifting Speed: 63/16 ft/min (19.5/5 m/min) | Duty Rating: H4 (2m) | Falls: 1 | Headroom: 19.2 in (488 mm) | Body Weight: 57.3 lbs (26 kg) | Chain Weight: 0.46 lb/ft (0.69 kg/m)

Features:

• Rated lifting capacity of 1/4 ton (550 lbs) for industrial material handling applications.
• Three-phase electric operation for continuous production environments.
• Dual lifting speeds of 63/16 ft/min provide rapid lifting and precise positioning.
• Single-fall load chain configuration improves lifting efficiency.
• 10 ft lift accommodates a variety of overhead lifting tasks.
• 11 ft pendent drop provides convenient operator access from floor level.
• Hook suspension allows quick installation on compatible overhead support structures.
• Pendent control enables smooth, accurate raising and lowering of suspended loads.
• Compact ELK Series construction maximizes available workspace.
• H4 (2m) duty classification supports frequent industrial lifting applications.

Made in USA:

Applications:

• Manufacturing facilities.
• Production and assembly lines.
• Warehouse material handling.
• Maintenance and repair operations.
• Machine installation and servicing.
• General industrial overhead lifting.

FAQs:

• Q: What is the rated lifting capacity of this hoist?
  A: This model is rated for 1/4 ton (550 lbs).
• Q: What lifting speeds does this hoist provide?
  A: It provides dual lifting speeds of 63/16 ft/min (19.5/5 m/min).
• Q: How many chain falls does this hoist use?
  A: This model uses a single-fall load chain configuration.
• Q: What is the headroom of this hoist?
  A: The headroom is 19.2 inches (488 mm).
• Q: What type of suspension does this hoist use?
  A: This model features hook suspension for installation on compatible overhead lifting structures.
• Q: What duty classification does this hoist have?
  A: It is rated H4 (2m), making it suitable for frequent industrial lifting service.
