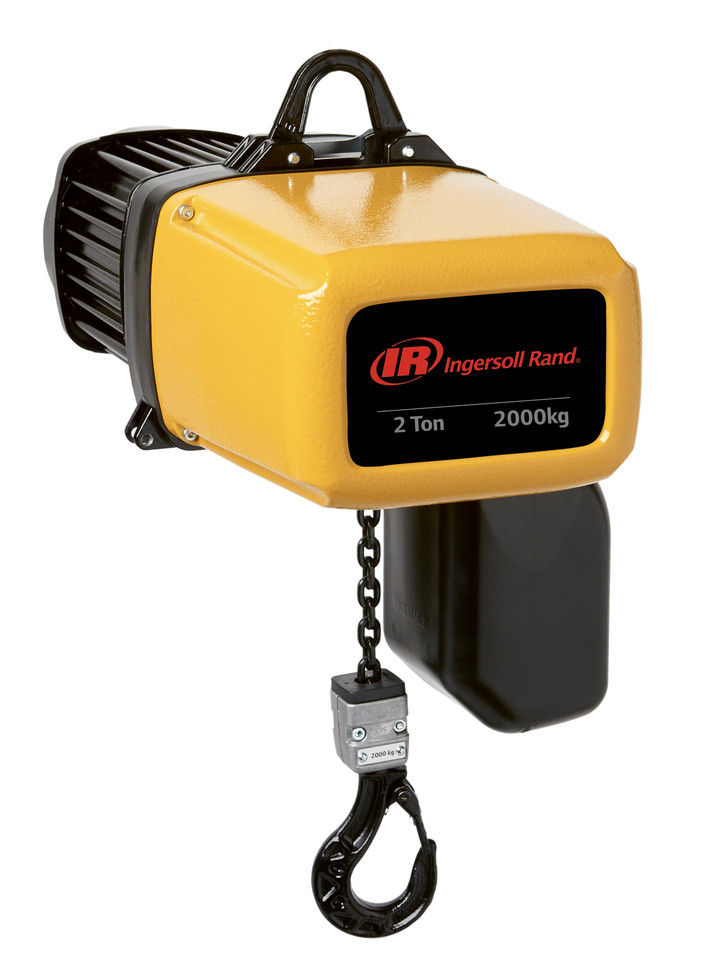

Ingersoll Rand ELK100-2ND200H-15-11-6CF3 ELK Series Electric Chain Hoist | 2 Ton Capacity | 15 ft Lift | 11 ft Drop | Hook Suspension | Pendent Control

Ingersoll Rand ELK100-2ND200H-15-11-6CF3 ELK Series Electric Chain Hoist is designed for demanding overhead lifting applications requiring a 2 Ton (4,400 lbs) lifting capacity. With a 15 ft lift, 11 ft pendent drop, hook suspension, and pendent control, this electric chain hoist delivers dependable dual-speed lifting performance and precise load control for manufacturing, maintenance, fabrication, and material handling operations.

Built on the ELK100-2ND200 three-phase platform, this hoist utilizes a 2-fall load chain configuration for safely handling heavier loads. According to the Ingersoll Rand ELK Series specification table, the base model provides 16/4 ft/min (5/1.3 m/min) lifting speeds, an H4 (2m) duty rating, a 26.6 in (676 mm) headroom, a 145.5 lbs (66 kg) body weight, and a 0.92 lb/ft (1.37 kg/m) chain weight, making it well suited for frequent industrial lifting service.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK100-2ND200H-15-11-6CF3 | SKU: 47674566001 | Capacity: 2 Ton (4,400 lbs) | Power Supply: Three Phase 230/460/575/380V | Lift: 15 ft | Pendent Drop: 11 ft | Suspension: Hook | Control Type: Pendent Control | Lifting Speed: 16/4 ft/min (5/1.3 m/min) | Duty Rating: H4 (2m) | Falls: 2 | Headroom: 26.6 in (676 mm) | Body Weight: 145.5 lbs (66 kg) | Chain Weight: 0.92 lb/ft (1.37 kg/m)

Features:

• Rated lifting capacity of 2 tons (4,400 lbs) for demanding industrial lifting applications.
• Three-phase electric operation supports continuous-duty manufacturing and production environments.
• Dual lifting speeds of 16/4 ft/min (5/1.3 m/min) provide controlled lifting and accurate load positioning.
• Two-fall load chain configuration is designed for higher-capacity lifting applications.
• 15 ft lift accommodates elevated workstations and a wide range of overhead lifting requirements.
• 11 ft pendent drop provides comfortable operator access from floor level.
• Hook suspension allows quick installation on compatible overhead support structures.
• Pendent control enables smooth and responsive raising and lowering of suspended loads.
• H4 (2m) duty classification supports frequent industrial lifting operations.
• Designed for reliable performance in manufacturing plants, fabrication facilities, warehouses, and maintenance departments.

Made in USA:

Applications:

• Heavy-duty manufacturing operations.
• Fabrication and metalworking facilities.
• Assembly and production lines.
• Warehouse material handling.
• Maintenance and repair departments.
• Machine installation and equipment servicing.
• General industrial overhead lifting.

FAQs:

• Q: What is the rated lifting capacity of this hoist?
  A: This model is rated for 2 tons (4,400 lbs).
• Q: What lifting speeds does this hoist provide?
  A: The ELK100-2ND200 base model provides dual lifting speeds of 16/4 ft/min (5/1.3 m/min).
• Q: How many chain falls does this hoist use?
  A: This model utilizes a two-fall load chain configuration.
• Q: What is the headroom?
  A: The headroom is 26.6 inches (676 mm).
• Q: What type of suspension does this hoist use?
  A: This model features hook suspension for installation on compatible overhead support structures.
• Q: What duty rating does this hoist have?
  A: It carries an H4 (2m) duty rating for frequent industrial lifting service.

Looking for more information about Ingersoll Rand Electric Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
