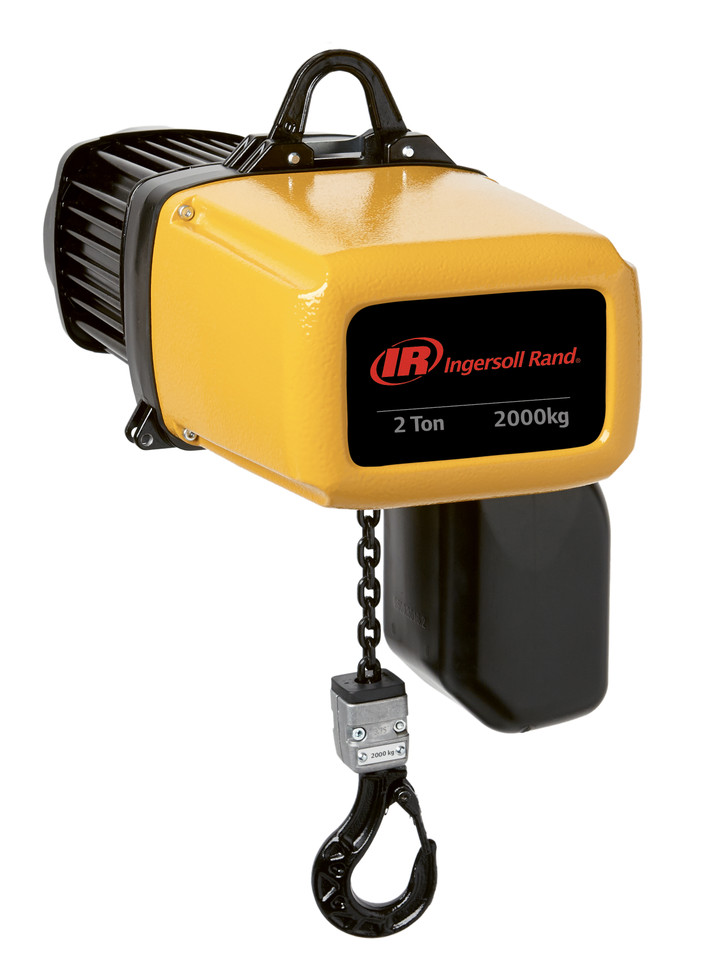

Ingersoll Rand ELK100-2ND200H-12-8-4CF3 ELK Series Electric Chain Hoist | 2 Ton Capacity | 12 ft Lift | 8 ft Drop | Hook Suspension | Pendent Control

Ingersoll Rand ELK100-2ND200H-12-8-4CF3 ELK Series Electric Chain Hoist is designed for demanding overhead lifting applications requiring a 2 Ton (4,400 lbs) lifting capacity. Featuring a 12 ft lift, 8 ft pendent drop, hook suspension, and pendent control, this electric chain hoist delivers dependable lifting performance with precise load control for manufacturing, fabrication, maintenance, and material handling operations.

Built on the ELK100-2ND200 three-phase platform, this hoist utilizes a 2-fall load chain configuration to safely handle heavier loads. According to the Ingersoll Rand ELK Series specification table, the base model provides 16/4 ft/min (5/1.3 m/min) dual lifting speeds, an H4 (2m) duty rating, a 26.6 in (676 mm) headroom, a 145.5 lb (66 kg) body weight, and a 0.92 lb/ft (1.37 kg/m) chain weight, making it well suited for frequent industrial lifting service.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK100-2ND200H-12-8-4CF3 | SKU: 47670950001 | Capacity: 2 Ton (4,400 lbs) | Power Supply: Three Phase 230/460/575/380V | Lift: 12 ft | Pendent Drop: 8 ft | Suspension: Hook | Control Type: Pendent Control | Lifting Speed: 16/4 ft/min (5/1.3 m/min) | Duty Rating: H4 (2m) | Falls: 2 | Headroom: 26.6 in (676 mm) | Body Weight: 145.5 lbs (66 kg) | Chain Weight: 0.92 lb/ft (1.37 kg/m)

Features:

• Rated lifting capacity of 2 tons (4,400 lbs) for demanding industrial lifting applications.
• Three-phase electric operation for continuous-duty manufacturing and production environments.
• Dual lifting speeds of 16/4 ft/min (5/1.3 m/min) provide controlled lifting and accurate load positioning.
• Two-fall load chain configuration is designed for higher-capacity lifting applications.
• 12 ft lift supports a wide variety of overhead material handling tasks.
• 8 ft pendent drop provides convenient operator access.
• Hook suspension allows quick installation on compatible overhead support structures.
• Pendent control enables smooth and responsive raising and lowering of suspended loads.
• H4 (2m) duty classification supports frequent industrial lifting operations.
• ELK100 Series construction is designed for reliable performance in manufacturing, fabrication, warehouse, and maintenance environments.

Made in USA:

Applications:

• Heavy-duty manufacturing operations.
• Fabrication and metalworking facilities.
• Assembly and production lines.
• Warehouse material handling.
• Maintenance and repair departments.
• Machine installation and equipment servicing.
• General industrial overhead lifting.

FAQs:

• Q: What is the rated lifting capacity of this hoist?
  A: This model is rated for 2 tons (4,400 lbs).
• Q: What lifting speeds does this hoist provide?
  A: The ELK100-2ND200 base model provides dual lifting speeds of 16/4 ft/min (5/1.3 m/min).
• Q: How many chain falls does this hoist use?
  A: This model uses a 2-fall load chain configuration.
• Q: What is the headroom?
  A: The headroom is 26.6 inches (676 mm).
• Q: What type of suspension is included?
  A: This model features hook suspension for installation on compatible overhead support structures.
• Q: What duty rating does this hoist have?
  A: It carries an H4 (2m) duty rating for frequent industrial lifting service.
