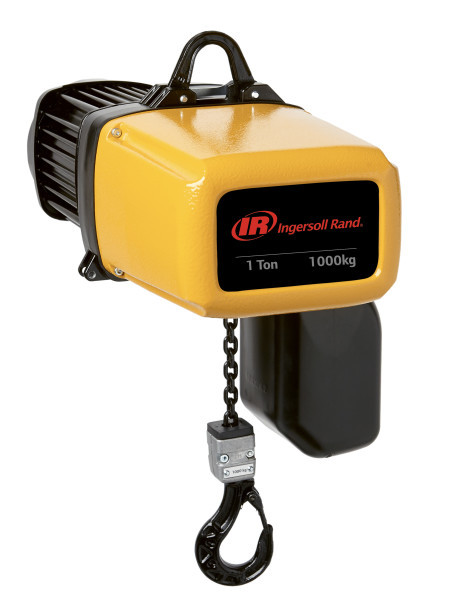

Ingersoll Rand ELK100-1ND100P-20-16-4CF15 ELK Series Electric Chain Hoist | 1 Ton Capacity | 20 ft Lift | 16 ft Drop | Plain Trolley | Pendent Control

Ingersoll Rand ELK100-1ND100P-20-16-4CF15 ELK Series Electric Chain Hoist is engineered for dependable overhead lifting in manufacturing, maintenance, fabrication, and material handling applications requiring a 1 Ton (2,200 lbs) lifting capacity. With a 20 ft lift, 16 ft pendent drop, plain trolley, and pendent control, this electric chain hoist combines smooth vertical lifting with manual horizontal trolley travel for precise load positioning along compatible beam systems.

Built on the ELK100-1ND100 three-phase platform, this hoist utilizes a single-fall load chain configuration to maximize lifting efficiency while maintaining excellent control. According to the Ingersoll Rand ELK Series specification table, the base model delivers 32/8 ft/min (9.6/2.5 m/min) lifting speeds, an H4 (2m) duty rating, 24.2 in (617 mm) headroom, a 136.6 lbs (62 kg) body weight, and 0.92 lb/ft (1.37 kg/m) chain weight, making it ideal for frequent industrial lifting applications.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK100-1ND100P-20-16-4CF15 | SKU: 47661383001 | Capacity: 1 Ton (2,200 lbs) | Power Supply: Three Phase 230/460/575/380V | Lift: 20 ft | Pendent Drop: 16 ft | Suspension: Plain Trolley | Control Type: Pendent Control | Lifting Speed: 32/8 ft/min (9.6/2.5 m/min) | Duty Rating: H4 (2m) | Falls: 1 | Headroom: 24.2 in (617 mm) | Body Weight: 136.6 lbs (62 kg) | Chain Weight: 0.92 lb/ft (1.37 kg/m)

Features:

• Rated lifting capacity of 1 ton (2,200 lbs) for demanding industrial material handling applications.
• Three-phase electric operation supports continuous-duty manufacturing and production environments.
• Dual lifting speeds of 32/8 ft/min (9.6/2.5 m/min) provide rapid lifting with precise load positioning.
• Single-fall load chain configuration delivers efficient lifting performance.
• 20 ft lift accommodates elevated workstations and extended overhead lifting requirements.
• 16 ft pendent drop provides comfortable operator access when installed at greater heights.
• Plain trolley allows smooth manual travel along compatible overhead beam systems.
• Pendent control delivers responsive and accurate raising and lowering of suspended loads.
• H4 (2m) duty classification supports frequent industrial lifting operations.
• Designed for reliable performance in manufacturing plants, warehouses, fabrication shops, and maintenance facilities.

Made in USA:

Applications:

• Manufacturing facilities.
• Assembly and production lines.
• Fabrication shops.
• Warehouse material handling.
• Maintenance departments.
• Machine installation and servicing.
• General industrial overhead lifting requiring manual trolley travel.

FAQs:

• Q: What is the rated lifting capacity of this hoist?
  A: This model is rated for 1 ton (2,200 lbs).
• Q: What lifting speeds does this hoist provide?
  A: The ELK100-1ND100 base model provides dual lifting speeds of 32/8 ft/min (9.6/2.5 m/min).
• Q: How many chain falls does this hoist use?
  A: This model utilizes a single-fall load chain configuration.
• Q: What is the headroom?
  A: The headroom is 24.2 inches (617 mm).
• Q: What is the advantage of the plain trolley?
  A: The plain trolley allows the hoist to be moved manually along a compatible beam, providing flexible horizontal load positioning.
• Q: What duty rating does this hoist have?
  A: It carries an H4 (2m) duty rating for frequent industrial lifting applications.

Looking for more information about Ingersoll Rand Electric Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
