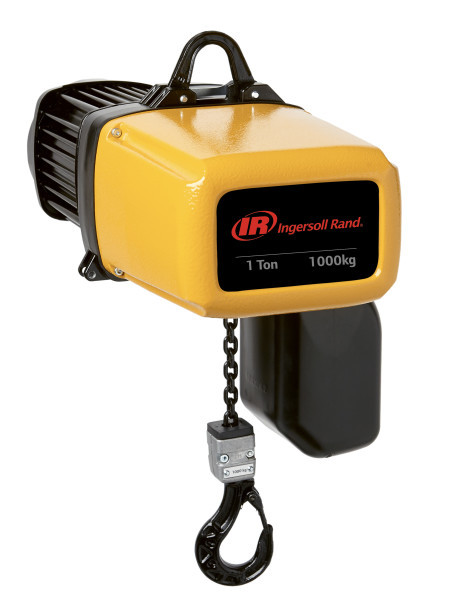

Ingersoll Rand ELK100-1ND100H-20-16-4CF15 ELK Series Electric Chain Hoist | 1 Ton Capacity | 20 ft Lift | 16 ft Drop | Hook Suspension | Pendent Control

Ingersoll Rand ELK100-1ND100H-20-16-4CF15 ELK Series Electric Chain Hoist is engineered for dependable overhead lifting in manufacturing, maintenance, fabrication, and material handling applications requiring a 1 Ton (2,200 lbs) lifting capacity. Equipped with a 20 ft lift, 16 ft pendent drop, hook suspension, and pendent control, this electric chain hoist provides fast dual-speed lifting with smooth, precise load positioning for demanding industrial environments.

Built on the ELK100-1ND100 three-phase platform, this hoist utilizes a single-fall load chain configuration to maximize lifting efficiency while maintaining excellent control. According to the Ingersoll Rand ELK Series specification table, the base model delivers 32/8 ft/min (9.6/2.5 m/min) lifting speeds, an H4 (2m) duty rating, 24.2 in (617 mm) headroom, a 136.6 lb (62 kg) body weight, and 0.92 lb/ft (1.37 kg/m) chain weight, making it ideal for frequent industrial lifting applications.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK100-1ND100H-20-16-4CF15 | SKU: 47661377001 | Capacity: 1 Ton (2,200 lbs) | Power Supply: Three Phase 230/460/575/380V | Lift: 20 ft | Pendent Drop: 16 ft | Suspension: Hook | Control Type: Pendent Control | Lifting Speed: 32/8 ft/min (9.6/2.5 m/min) | Duty Rating: H4 (2m) | Falls: 1 | Headroom: 24.2 in (617 mm) | Body Weight: 136.6 lbs (62 kg) | Chain Weight: 0.92 lb/ft (1.37 kg/m)

Features:

• Rated lifting capacity of 1 ton (2,200 lbs) for demanding industrial material handling applications.
• Three-phase electric operation for continuous-duty production environments.
• Dual lifting speeds of 32/8 ft/min (9.6/2.5 m/min) provide fast lifting with precise load positioning.
• Single-fall load chain configuration delivers efficient lifting performance.
• 20 ft lift accommodates elevated workstations and extended lifting requirements.
• 16 ft pendent drop provides comfortable floor-level operation when installed at greater heights.
• Hook suspension allows quick installation on compatible overhead support structures.
• Pendent control enables smooth and accurate lifting and lowering of suspended loads.
• H4 (2m) duty classification supports frequent industrial lifting service.
• ELK100 Series construction provides dependable performance in manufacturing, maintenance, and warehouse environments.

Made in USA:

Applications:

• Manufacturing facilities.
• Production and assembly lines.
• Fabrication shops.
• Warehouse material handling.
• Maintenance and repair operations.
• Machine installation and servicing.
• General industrial overhead lifting.

FAQs:

• Q: What is the rated lifting capacity of this hoist?
  A: This model is rated for 1 ton (2,200 lbs).
• Q: What lifting speeds does this hoist provide?
  A: It provides dual lifting speeds of 32/8 ft/min (9.6/2.5 m/min).
• Q: How many chain falls does this hoist use?
  A: This model uses a single-fall load chain configuration.
• Q: What is the headroom?
  A: The headroom is 24.2 inches (617 mm).
• Q: What type of suspension does this hoist use?
  A: This hoist features hook suspension for attachment to compatible overhead support structures.
• Q: What duty rating does this hoist have?
  A: It carries an H4 (2m) duty rating for frequent industrial lifting applications.

Looking for more information about Ingersoll Rand Electric Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
